7. Tap Next if the default time zone is correct or select the time zone from the drop-down list and then tap Apply.

The Register System page is displayed.

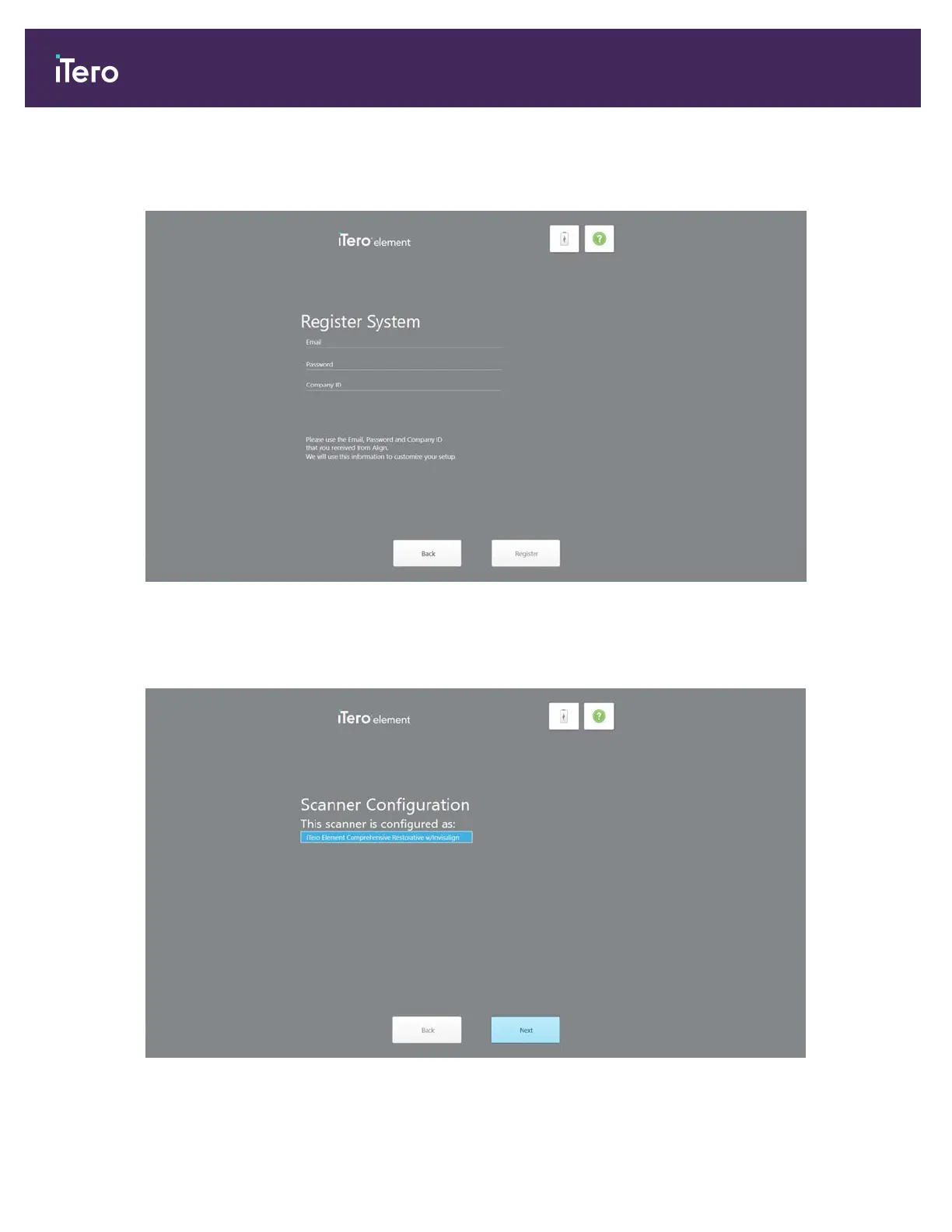

Figure 18: Registering the system to customize the setup

8. Enter your email, password, and company ID in the fields provided, and then tap Register.

The Scanner Configuration page is displayed, showing your iTero subscription package.

Figure 19: iTero subscription package
