iTero Element 5D Plus - Figure 88: New Scan Window - Restorative Case Type with a Tooth Chart

To Next Page

To Previous Page

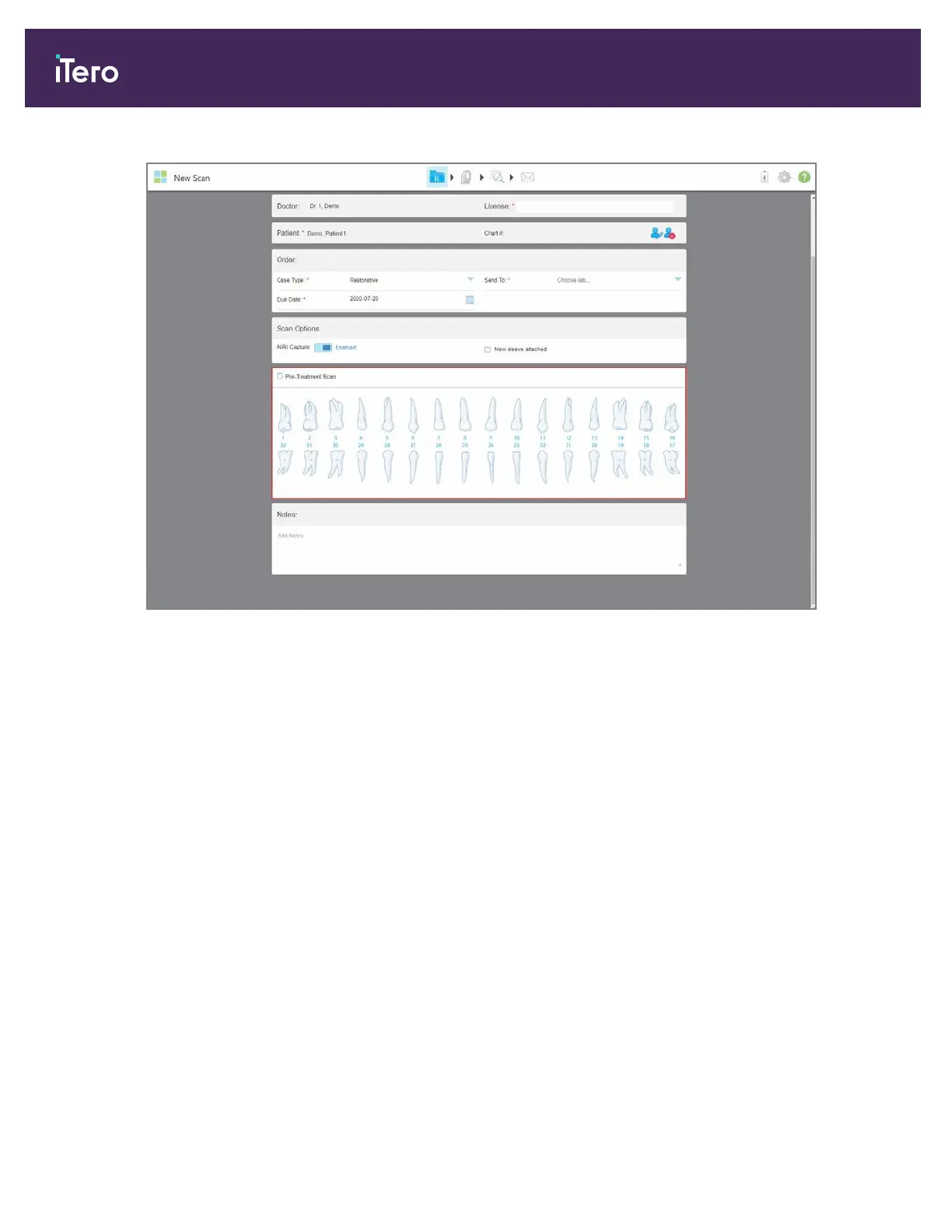

Figure 88: New Scan window – Restorative case type with a tooth chart

2. Select the Pre-Treatment Scan check box if you would like to scan the patient before prepping the relevant

tooth. In this case, the patient must be scanned twice – before and after the tooth has been prepped.

The pre-treatment scan enables the lab to copy the original anatomy to the new restoration.

3. In the tooth chart, tap on the tooth to be restored.

A list of available treatment options for the selected tooth is displayed.
