iTero Element 5D Plus - Figure 156: Edge Trimming Tool; Figure 157: Edge Trimming Tool Options

To Next Page

To Previous Page

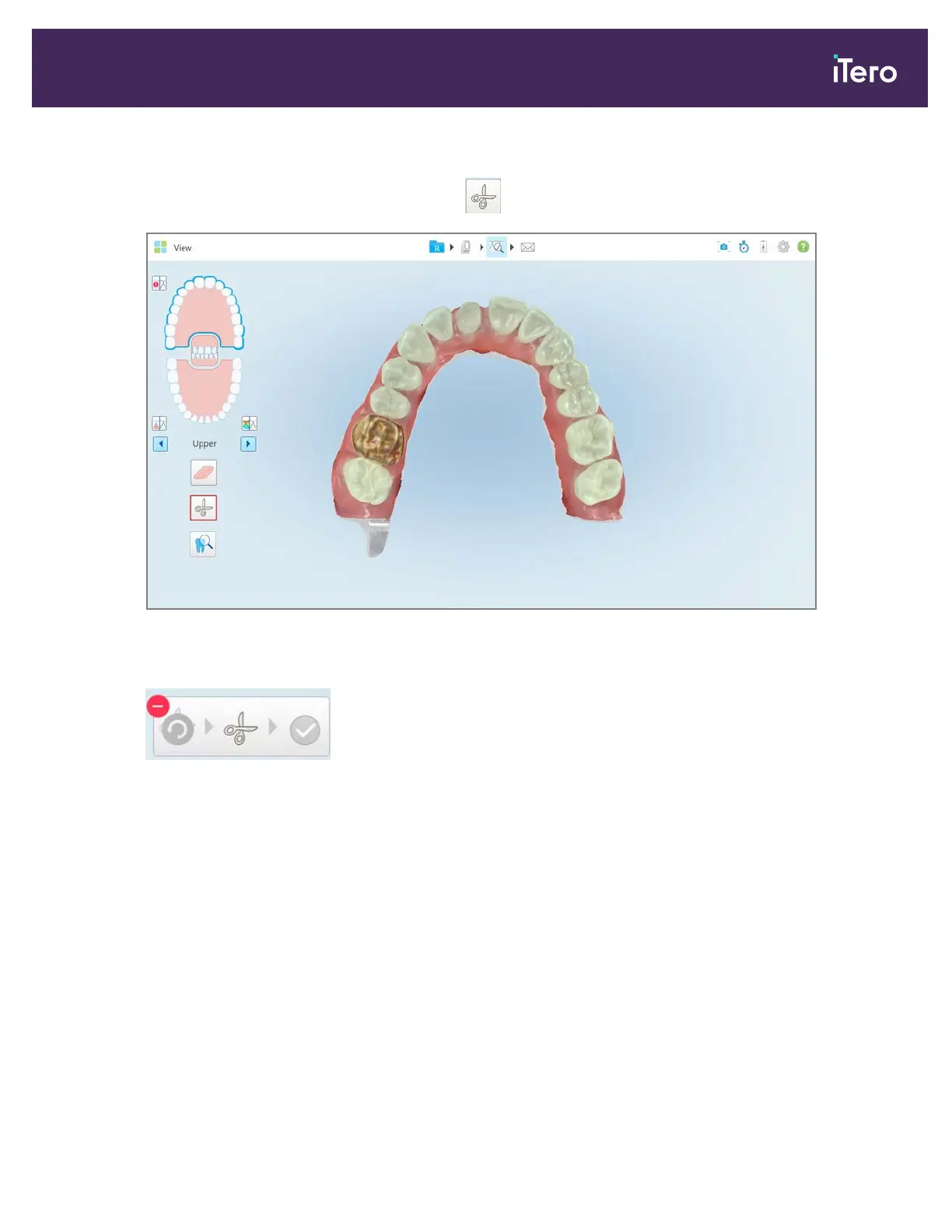

To trim the excess material:

In the View window, tap the Edge Trimming tool .

Figure 156: Edge trimming tool

The Edge Trimming tool expands to show the following options:

Figure 157: Edge trimming tool options
