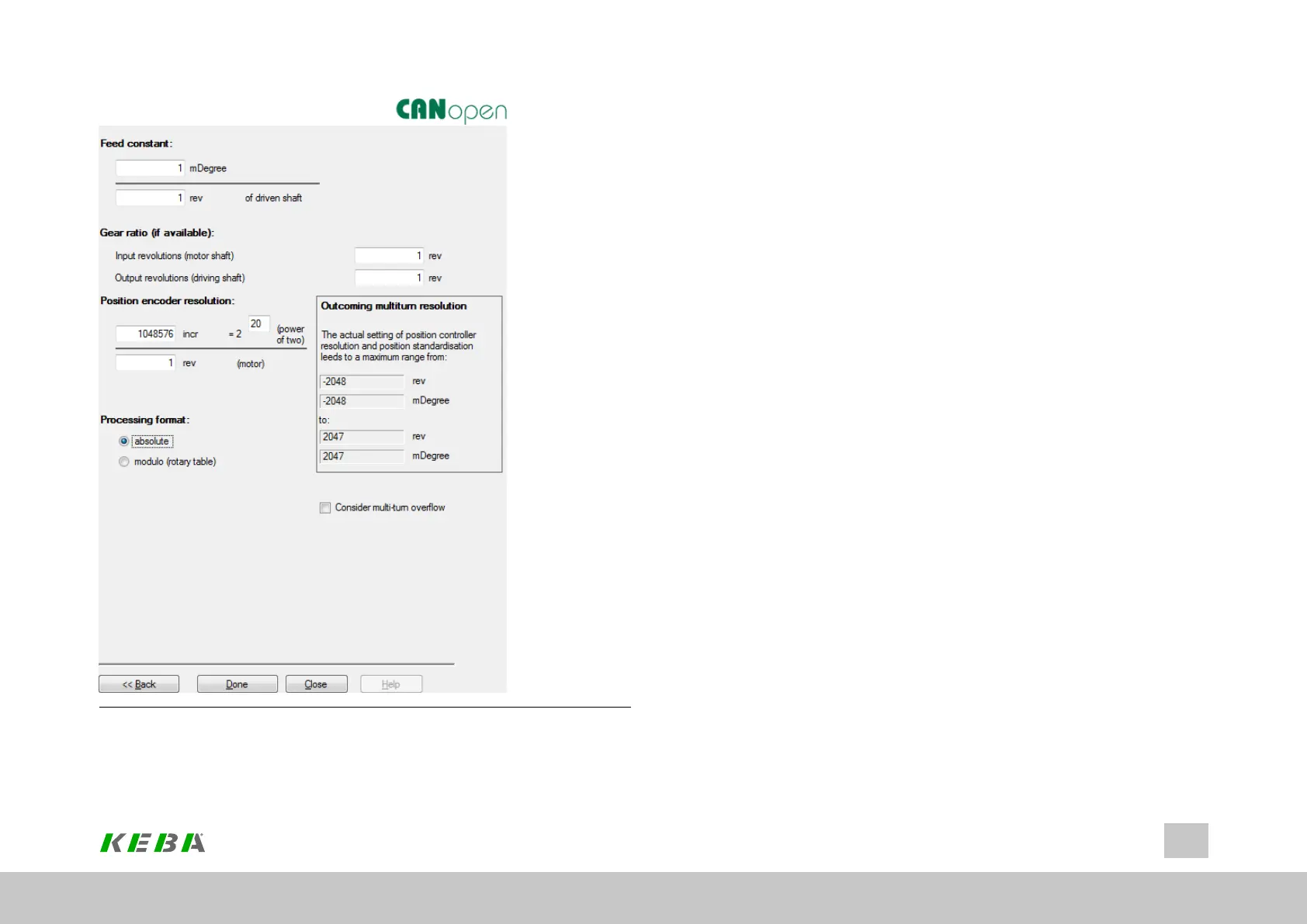

Image 8.5: “Standardization profile - Standard/CiA 402 -
Feed/gearing/resolution/process format” screen
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
228
8 Motion profile
Feed constant
The path travelled is proportionate to one motor revolution or, when using a gear
unit, to the output-side revolution.
Gear ratio (if available)
Ratio of one motor revolution before the gearing to the number of revolutions on the
gear output side. The values for the gear ratio are entered in the screen as integer
fractions.
Position controller single-turn resolution
The single-turn resolution of the position controller can be adapted variably to the
application. A total of 32 bits are available. In the default setting, 20 of the bits are
used for the single-turn position.
