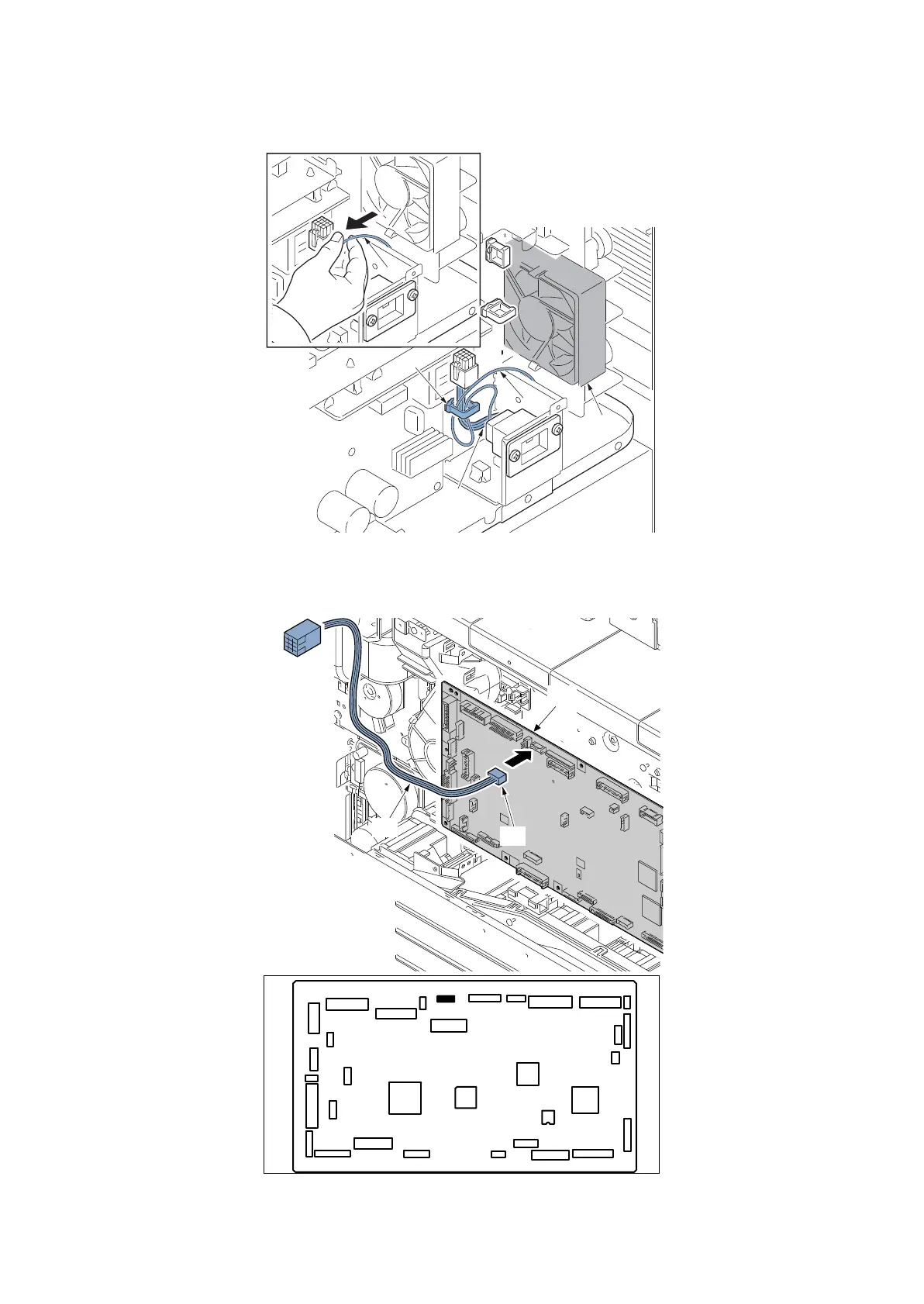

22. Pull the earth wire (a) to the side of the wire saddle (b), bundle the extra, fix in the wire saddle (b) with the vendor
wire (c).
*: Line process so that the earth wire (a) does not touch the fan motor (d).
Figure 2-257
23. Connect the connector (b) of the vendor relay wire (a) to YC37 of the engine PWB (c).
Figure 2-258
a
b
c
a
d
c
a
b
YC37
