The T2 time-out time is specified as follows.
From CFR signal output to image data reception
From image data reception to the next signal reception
In ECM, from RNR signal detection to the next signal reception
1.By using the [+] [-] keys or the numeric keys, change the setting value.
2.Press the [Start] key to set the setting value.
* :[Completed] is displayed.
Setting: Ta Time Out
Sets the time to start ringing for an operator through the external telephone after receiving a call
in the FAX/telephone automatic switching mode. (See figure 1-3-18). If either receiving a FAX
signal within this time or passing this time, the mode automatically switches to the FAX reception
mode. Execute when a reception error occurs when in the automatic FAX/telephone switching.
1.By using the [+] [-] keys or the numeric keys, change the setting value.
2.Press the [Start] key to set the setting value.
* :[Completed] is displayed.

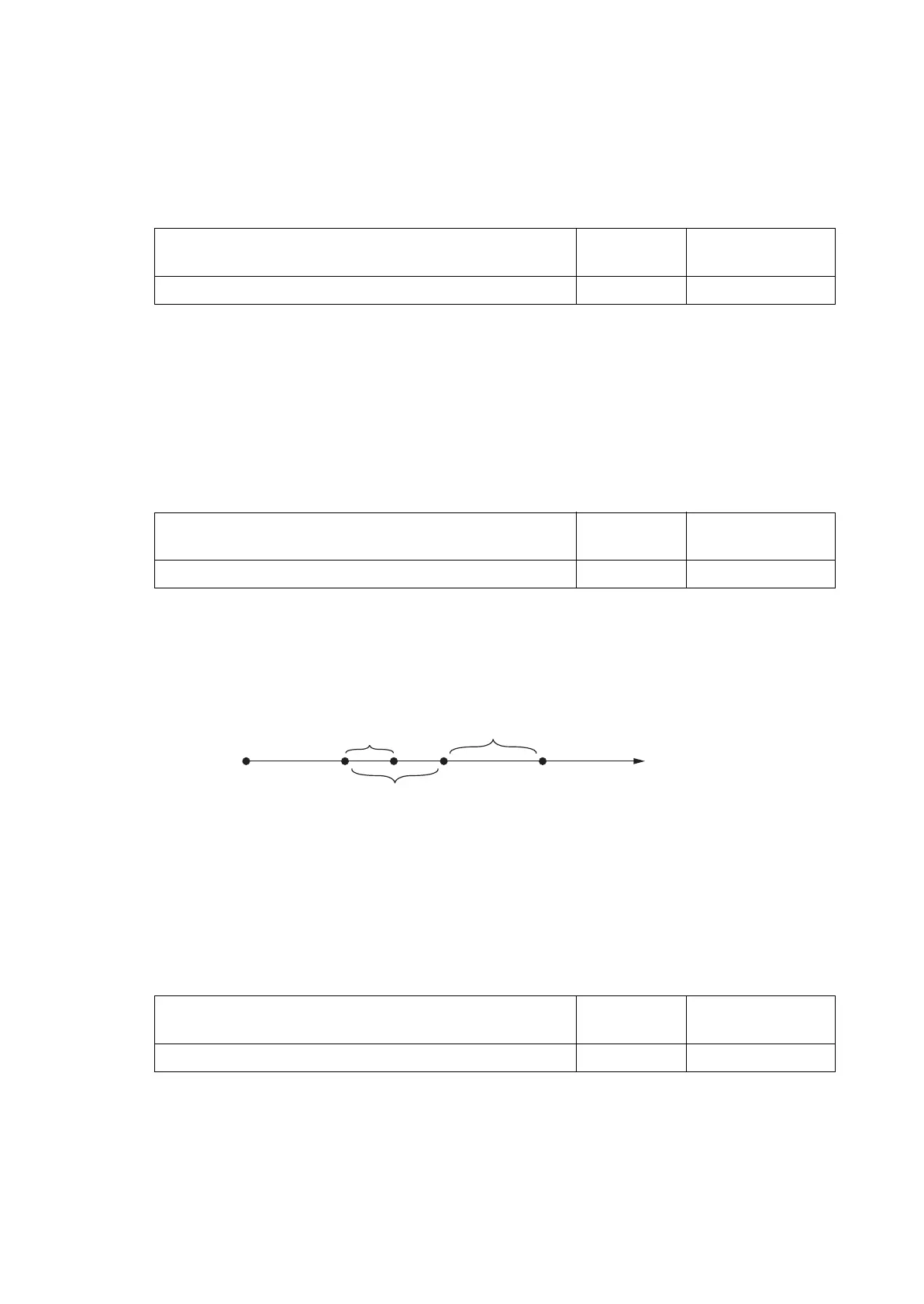

Figure 6-27 Ta/Tb1/Tb2 time-out time
Setting: Tb1 Time Out
Sets the time to start sending the ring back tone after receiving a call as a fax machine in the
FAX/telephone automatic switching mode, (See figure 1-3-18). Execute when a reception error
occurs when in the automatic FAX/telephone switching.
1.By using the [+] [-] keys or the numeric keys, change the setting value.
2.Press the [Start] key to set the setting value.
* :[Completed] is displayed.
Setting: Tb2 Time Out
Contents Setting
range
Initial
setting
Sets the T2 time-out time. 1 to 255 69
Contents Setting
range
Initial
setting
Sets the Ta time-out time. 1 to 255 s 30
Contents Setting
range
Initial
setting
Sets the Tb1 time-out time. 1 to 255 20
Ta
Tb2
Tb1
Ring detection
Line connection
as a fax machine
Rings
Ring back tone se
Start of fax recept
