Automatic operation

44 ProtoMat

S62

Work steps in the production phases

BoardMaster assists you in selecting the next production phase and pro-

vides information about the manual operating steps required for produc-

tion, for example for turning the base material or pressing the individual

layers externally before continuing processing with the ProtoMat

S62.

A production phase must always be selected and started manually. It can

be stopped at any time and resumed later. Accordingly, you can check

quality, correct the milling depth/width or change tools during production.

The production phases comprise the following work steps that are proc-

essed efficiently one after the other:

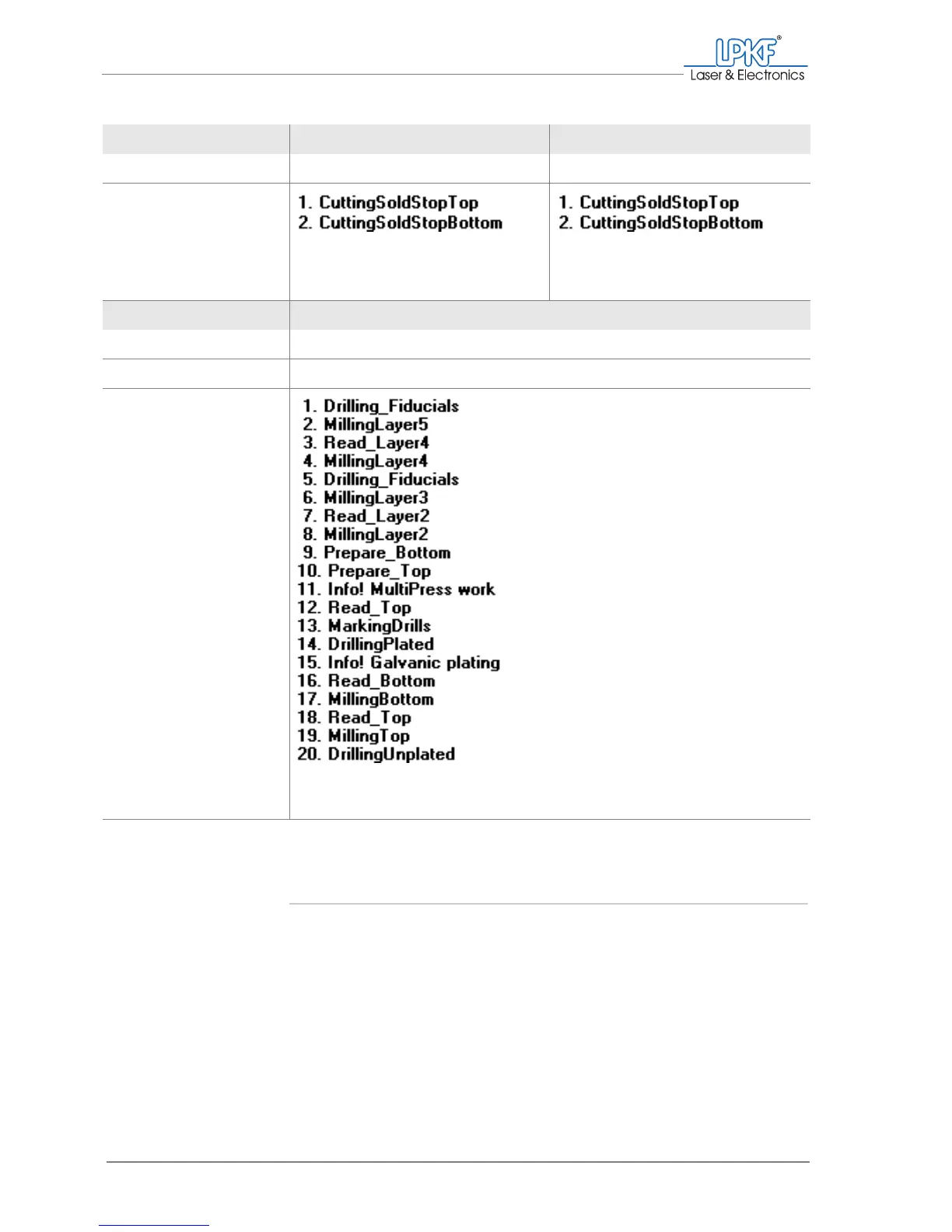

Solder stop foils Solder paste templates

Required phase file soldermask.phs stencilmilling.phs

Production phases

6-layer printed circuit boards

Plating Galvanic

Required phase file 6layer.phs

Production phases

(Page 3 of 3)
