OPERATION
Engine Temperature
The normal engine operating temperature range is
180–225°F (82–107°C).
If the temperature exceeds 230°F (110°C), an ongoing
intermittent tone will be heard and the cab display module
(CDM) (A) w ill flash “ENGINE TEMP”. Stop the engine
immed iately and determine cause. The tone w ill stop and
the CDM (A) will return to normal when the temperature
drops below 225°F (107°C).

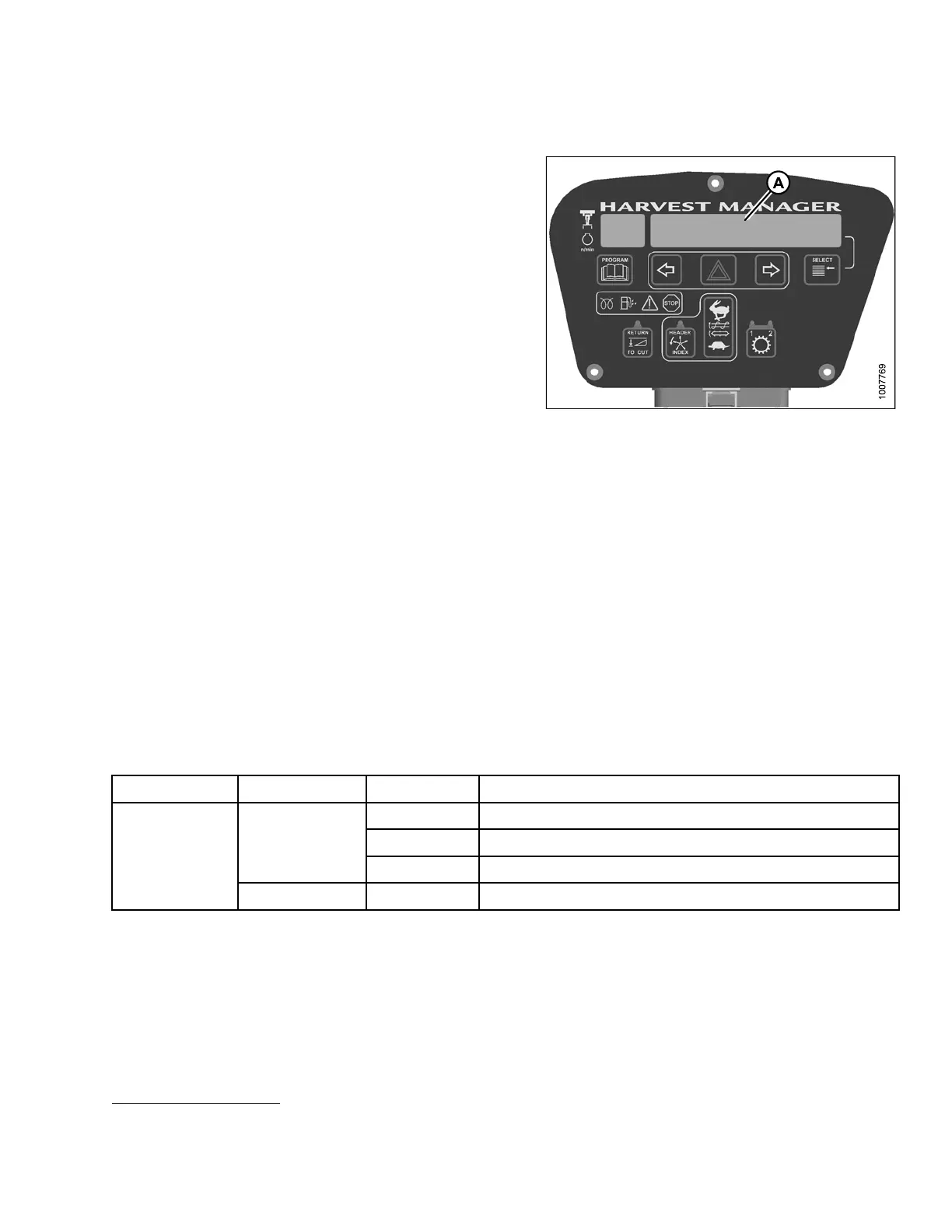

Figure 4.14: CDM
Engine Oil Pressure
The nominal engine oil pressure is 10 psi (69 kPa) at low idle and 55.1 psi (380 kPa) at maximum rated speed.
If the o il p r essure drops below the pre set level of 7.5 psi (52 kPa), the cab display module ( CDM) flashes an error
code and error message.
If the STOP ENGIN E lig ht illuminates, stop t he engine IMMEDIATELY and investigate.
If the yellow CAUTION ligh t illum in ates, stopping immediately is optional. You may continu e operations and
investigate later, but you are STRONGLY advised to monitor the situation carefully.
Electrical
The ele
ctrical system voltage is displayed on the cab display module (CDM) when selected with the SELECT
butto
n on the ground speed lever (GSL) handle or the SELECT switch on the CDM. The display indicates the
condi
tion of the battery and alternator.
Ignition Engine Reading
Indic
ated Condition
13.8–15.0 Normal
>16.0
11
Regu
lator out of adjustment
Runn
ing
< 12.5
11
Alternator not working or regulator out of adjustment
ON
Shut down
12.0 Battery normal
11. Display flashes voltage reading with single loud tone. Repeats every 30 minutes un til condition is fixed.
