MacDon M105 - Windrower Controls

OPERATOR’S STATION
3.16 Windrower Controls
Console Controls:
A – TURN SIGNALS activate turn signals on windrower
and header.
• Push-ON / Push-OFF
B – GROUND SPEED LEVER (GSL) controls speed and
direction of movement.
•F:Forward
•N:NEUTRAL
• N -DETENT: Engages Neutral Interlock, and applies park
brakewhensteeringlockedincenter
• R : Reverse
C – HAZARD WARN ING LIGHTS activate signals on
windrower and header.
• Push-ON / Push-OFF
E–N-Detent
F–Horn

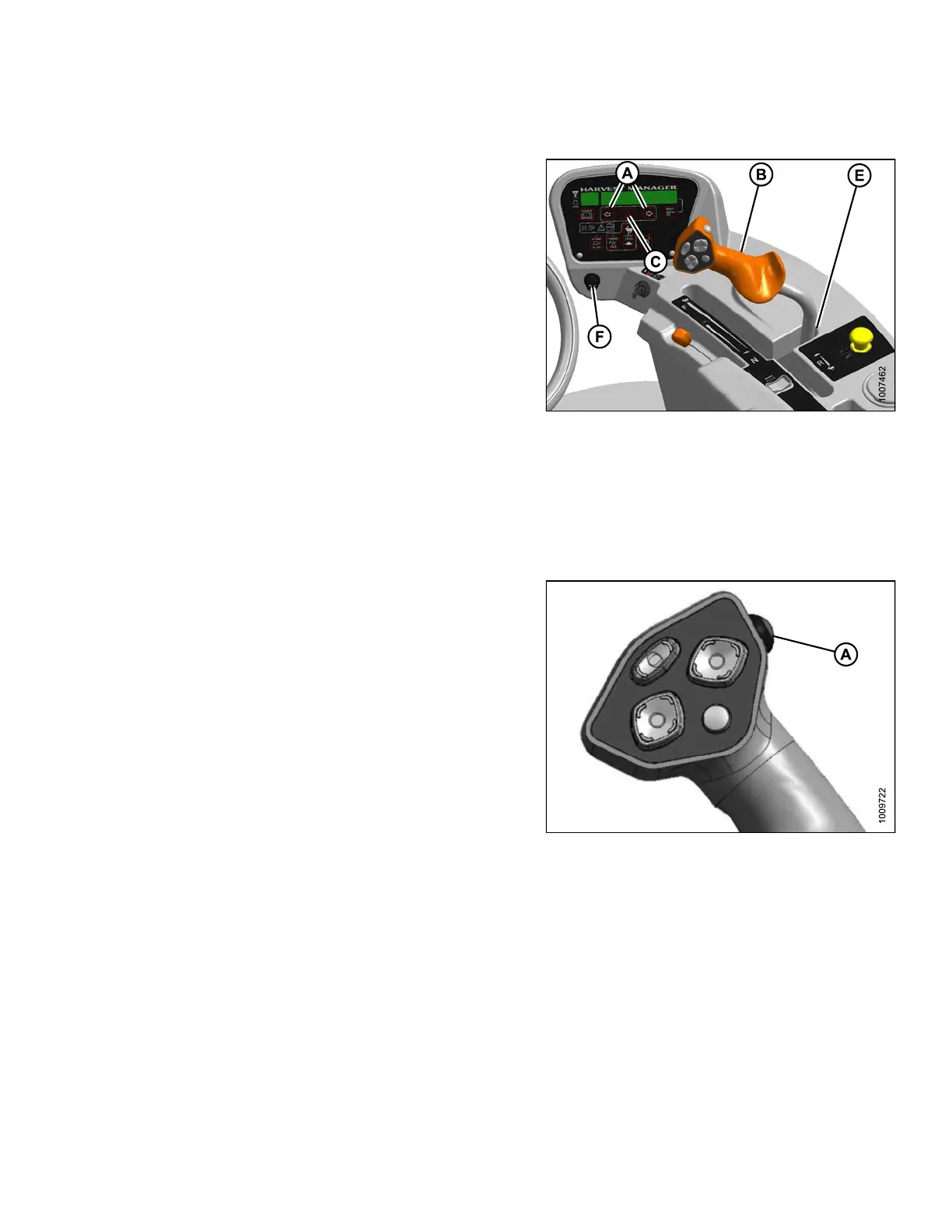

Figure 3.32: Console C ontrols
A - Turn Signals B - Ground Speed Lever (GSL)
C - Hazard W
arning Lights
E - N-Detent Position
F-Horn
Autosteer Contr
ol:
A – AUTOSTEER EN
GAGEMENT SWITCH
engages/disen
gages the automated steering -system (if
compatible sys
tem is installed).
• ENGAGE: Click
to engage
• D ISEN GAGE: Tu
rn steering wheel or click to disengage
Figure 3.33: Autosteer
169890 55 Revision A
