OPERATOR’S STATION
3.13 Radio
A radio is available as optional equipment from your Dealer.
3.13.1 AM/FM Radio
A space (B) is provided in the cab headliner to
accommodate the installation of an AM/FM radio that is
available as optional equipment from your Dealer.
Two pre-wired speakers (A) have been factory-installed in
the headliner.
For r adio in stallation procedures, ref er to M105
Self-Propelled Windrower Unloading and Assembly
Instructions for North America (MD #169893)
4
or M-Series
Self-Propelled Windrower Unloading and Assembly
Instructions for Container Shipments (MD #169886)
4
.
Operating instructions are supplied with the radio.

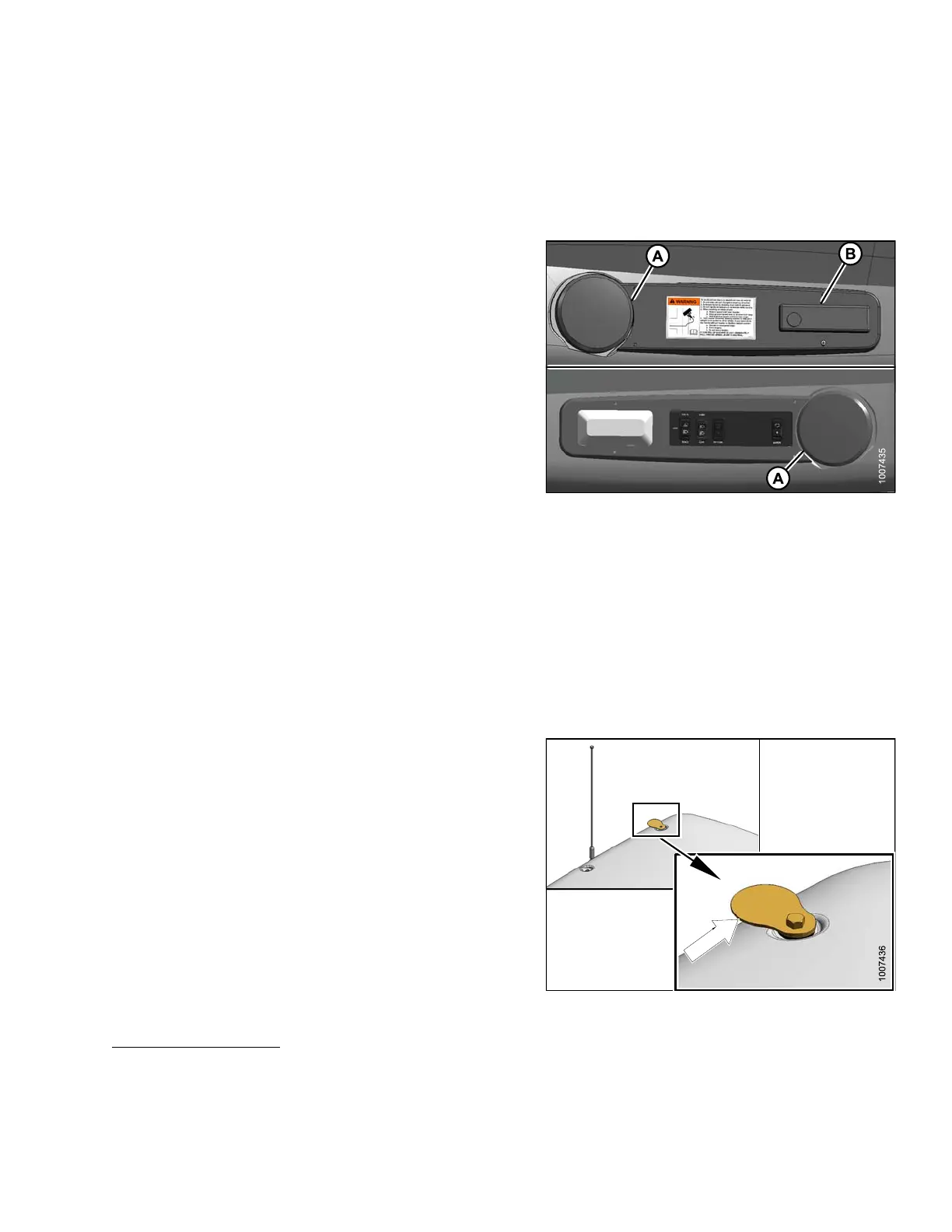

Figure 3.2
6: Radio and Speakers
A - Speakers
B - Radio Mounting Location
3.13.2 Antenna Mounting
A roof-m ounted antenna b a s e for in stallin g a magnetic antenna is ava ilab le as an optio n from your Dealer.
Order antenna mount MD #160288, or refer to 3.28: Template for Antenna M ount, page 52 for dim ensions.
IMPORTAN T:
Antenna base can only be installed on the left- and right-hand rear cab roof bolts.
It acc ommodates most CB, satellite , and two-way radio
antennas. Refer to M105 Self-Propelled Windrower
Unloading and Asse mbly Instruction for North America
(MD #169893) for installation procedures
5
.
Figure 3.27: Antenna M ount
4. Instructions not sold separately. Access unload and assembly instructions on the MacDon corporate w ebsite
www.macdon.com.
5. Instructions not sold separately. Access unload and assem bly instructions on the MacDon corporate website
www.macdon.com
