OPERATION

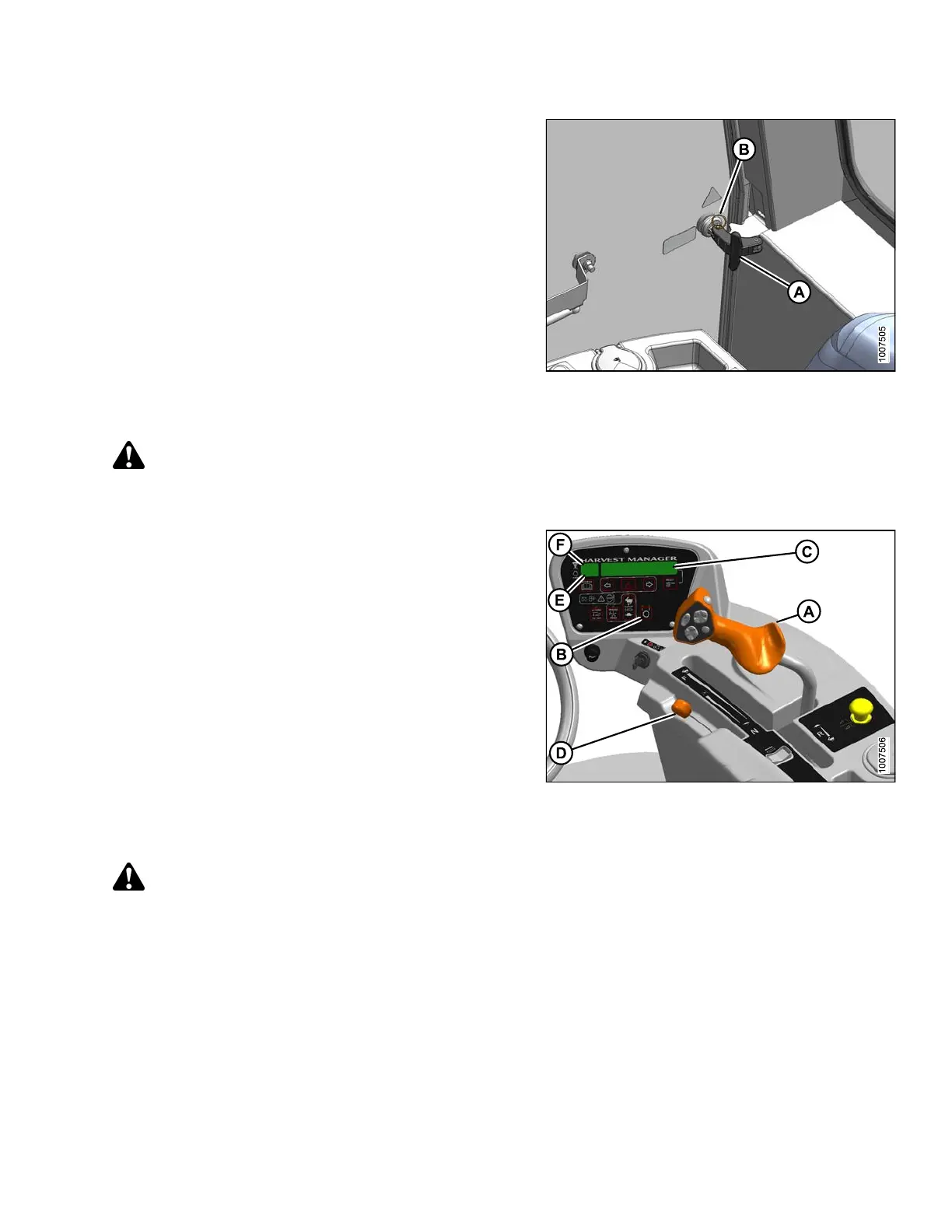

To open right side window, pull over-center latch (A)
forward, and slightly push on window until latch goes
over-center, and lock window in OPEN position.
To close right side window, pull latch (A) inward to until
window closes, and then push rearward to lock.
To fully open window, pull pin (B) out of latch, and push
window open.
Figure 4.17: Right Side Window
Driving Forward
CAUTION
Operate both steering wheel and ground speed lever slowly for familiarization. Avoid the common
tendency of new Operators to oversteer.
1. Place ground speed lever (GSL) (A) in N-DETENT.
Engine can be running.
2. Ensure seat belt is fastened.
3. Start engine if not running. Refer to Starting the
Engine, page 88.
4. Set GROUND SPEED RANGE switch (B) to either of
the following :
• 2 for road speed: 0–16 mph (25.7 km/h)
•1forfield speed: 0–11 mph (17.7 km/h)
5. The cab display module (CDM) will display an engine
status at (C).
6. Slowly push throttle (D) to full forward
(operating speed). The CDM should display
2270–2330 rpm at (E).
Figure 4.18: Operator Console
A - Ground Speed Lever B - Ground Speed Range Switch
C - Engine Status Display
D-Throt
tle
E-RPMDisplay
F - Speed Display
CAUTION
Check again to be sure all bystanders have cleared
the area.
7. Move the GSL (A) out of N-DETENT and slowly forward
to desired speed which will be displayed at (F).
IMPORTAN T:
The windrower can be equipped with an automatic steering system for use in the field. An automated steering
system is available as an option and can be installed by a MacDon Dealer. The GSL has been pre-wired at the
factory with a switch. Also refer to 7.1.3 Automated Steering Systems, page 337.
