MacDon M105 - Steering Adjustments; Checking Steering Link Pivots

MAINTENANCE AND SERVICING
1. Loosen nuts (A)
2.HoldGSLincenterofN-DETENTslotto
locate support (B).
3. Tighten nuts (A, and torque to 80–90 lbf·ft
(108–122 Nm).

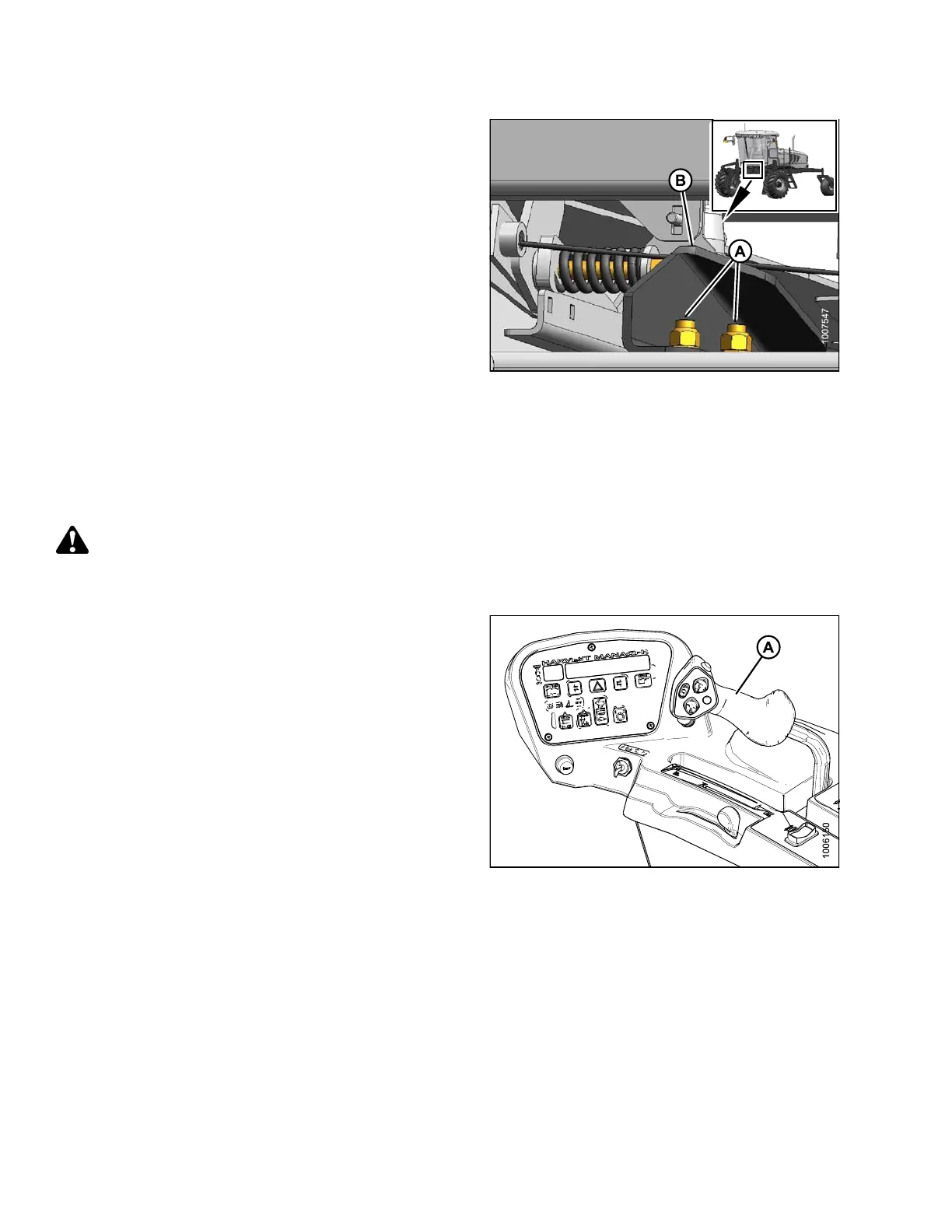

Figure 5.35: GSL Adjust Support
5.7.4 S teering Adjustments
Checking Steering Link Pivots
The follo
wing checks should be performed annually:
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
1. Place ground sp e ed lev er (GSL) (A) in N-DETENT,
shut down engine, and remove key.
Figure 5.36: Operator Console
169890
