OPERATOR’S STATION
3.17.3 Ground
Speed Lever (GSL) Header Switches

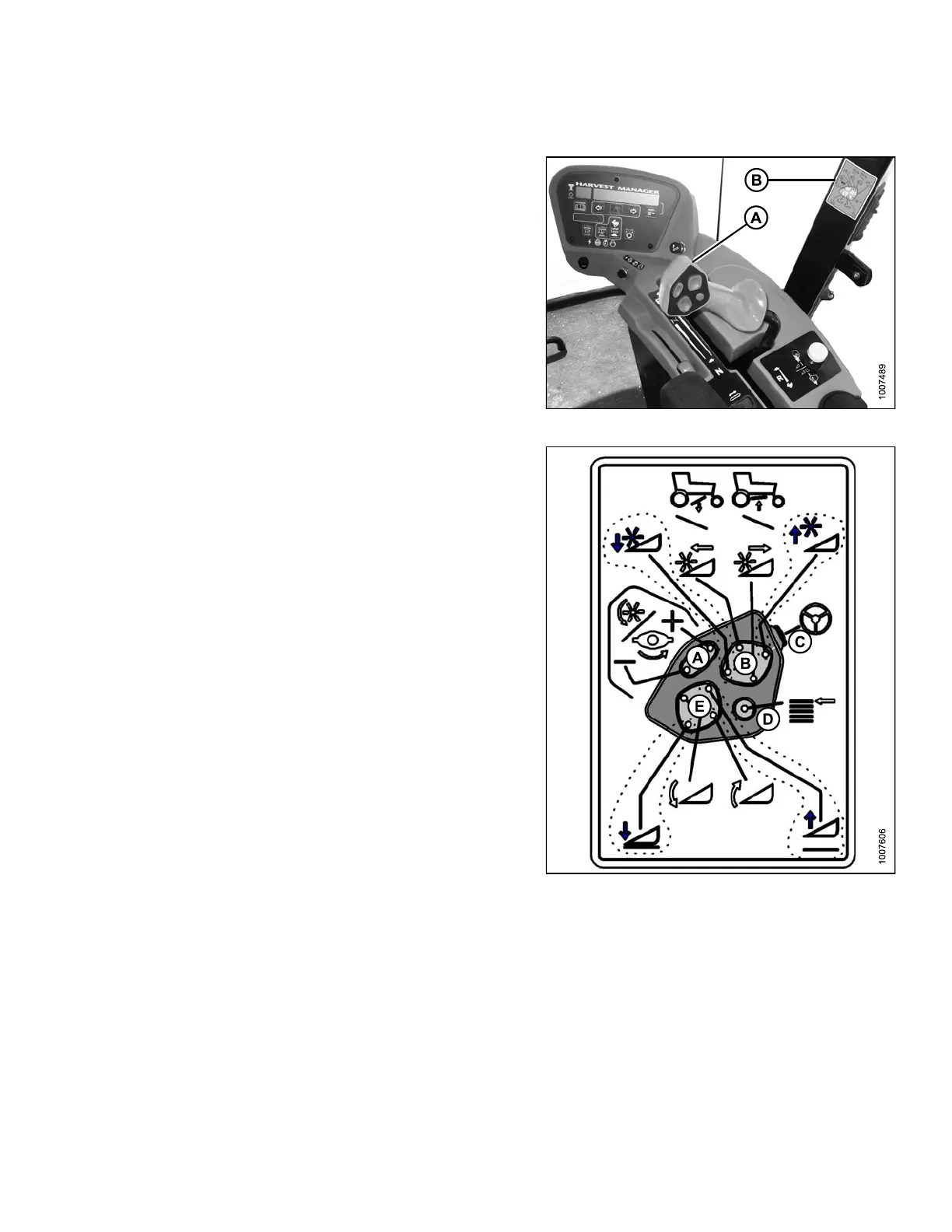

The GSL (A) con
tains switches for the header functions that
are most often
adjusted while in operation to suit changing
crop con ditio
ns. All are momentary-type switches.
Figure 3.36: GSL
NOTE:
A decal (B)
identifying switch functions is located on the
cab post a
bove the operator ’s console.
Figure 3.37: GSL Function Groups
A - Reel Speed
B - Reel Position
C-Au
tosteer Engagement
D-Di
splay Selector
E - Header Position
169890 57 Revision A
