MAINTENANCE AND SERVICING
5.7.6 Heating
, Ventilating, and Air Conditioning (HVAC) System
Fresh Air Inta
ke Filter
The fresh air
filter is located under the cab roof, behind the
rear wind ow,
and should be serviced daily.

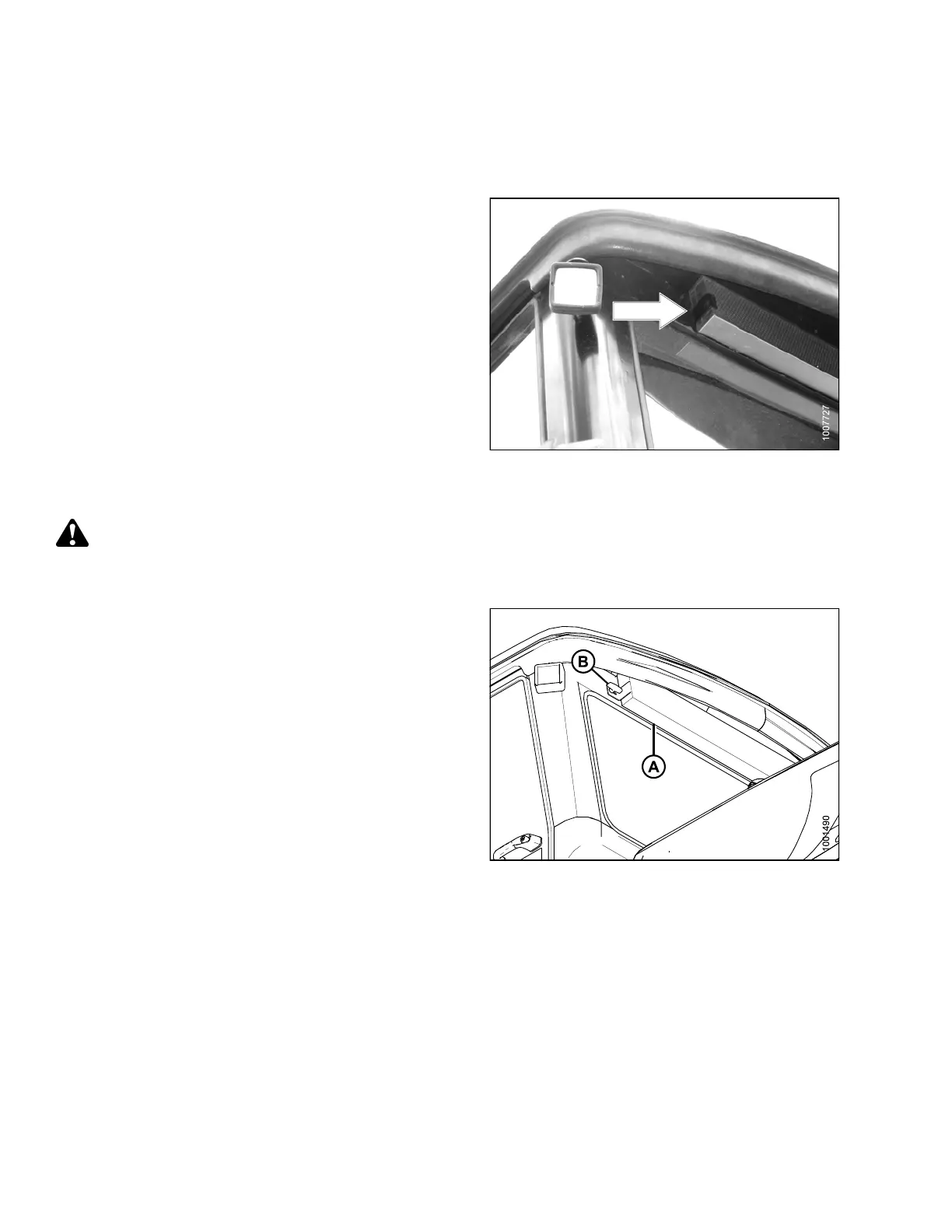

Figure 5.44: Fresh Air Filter
Servicin
g Fresh Air Intake Filter
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
1. Loosen knob (B), and slide retainer out to release filter
(A) from rear of cab roof.
Figure 5.45: Fresh Air filter
169890 218 Revision A
