OPERATION

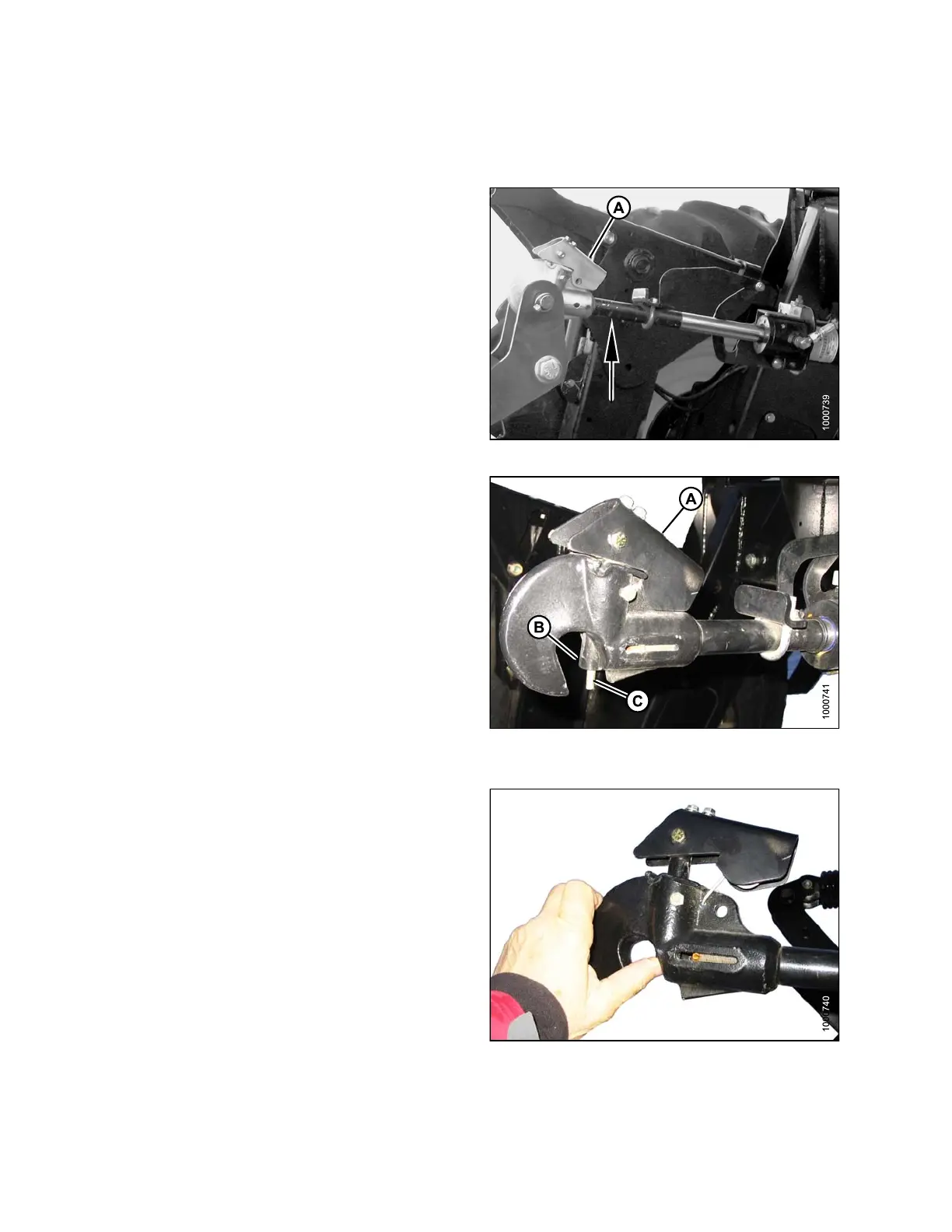

Checking Self-Locking Center-Link Hook
Periodically check the operation of the hook locking mechanism and ensure that it is working properly as follows:
1. If header is attached to windrower, disconnect
center-link hook from header by pulling up o n
handle (A) to release the locking device and then lifting
the hook off the header pin.
Figure 4.7
2: Center-Link
2. Lower the handle (A) into the LOCK position.
3. Push up on lock pin (B) only. Handle should catch on
casting and pin should NOT lift.
Figure
4.73: Center-Link Hook
A - Handle B - Lo ck Pin
C - Actuator Rod
4. Push up on actuator rod (C) and lock pin should lift with
the handle.
Figure 4.74: Center-Link Hook
169890 126 Revision A
