MAINTENANCE AN D SERVICING
5.5 Maintenance Platform
A swingaway platform/stair is provided for access to the operator’s station and engine bay maintenance.
The maintenance platform has two positions:
• Standard Position
• Major Service Positio n
5.5.1 Opening Platform (Standard Position)
CAUTION
Do NOT stand on the platform in the unlocked position. It is unstable and may result in a fall.

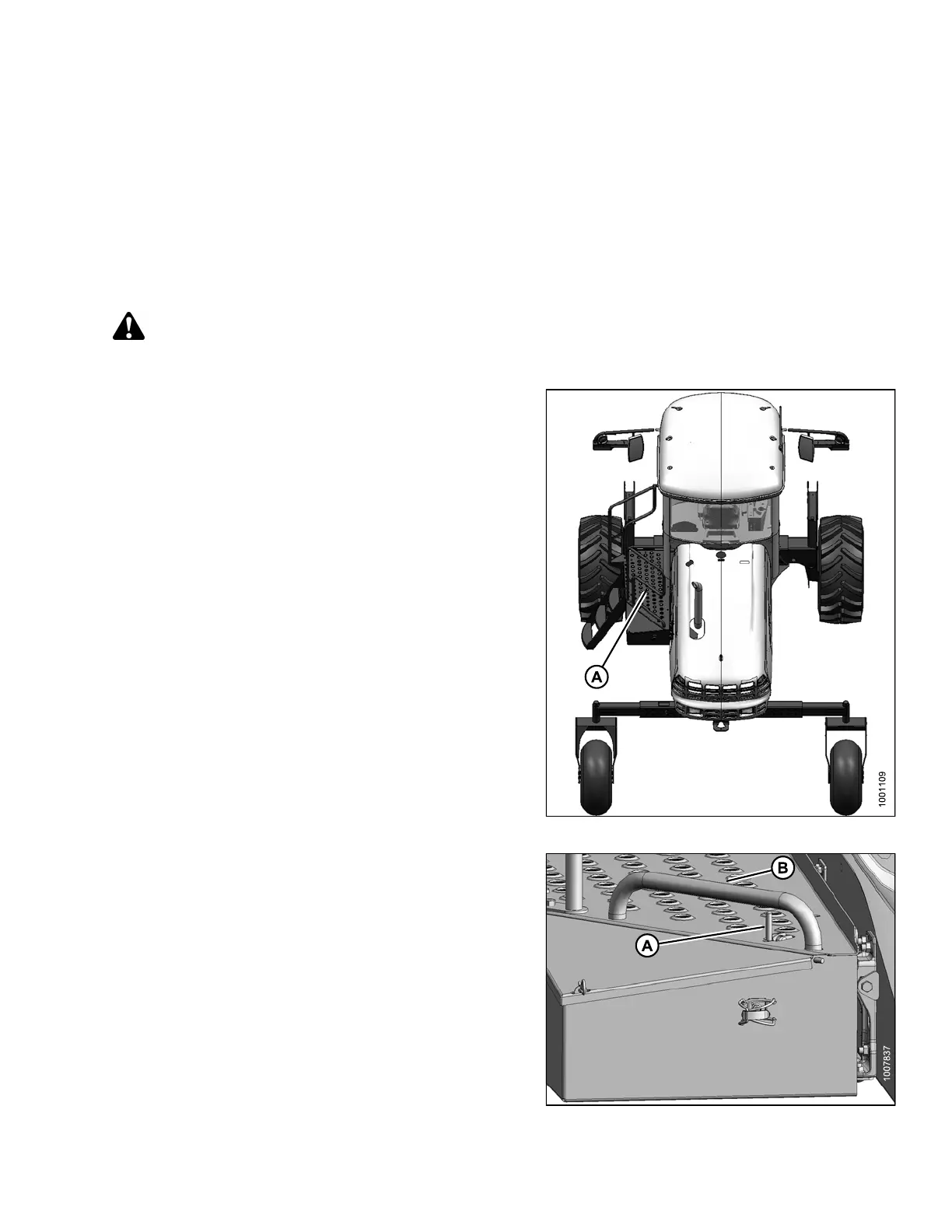

1. Approach the platform/stair unit (A) on the LH side of
the windrower.
Figure 5.20: Platforms
2. Push latch (A) and pull platform (B) toward walking
beam until it stops and latch engages in open position.
Figure 5.21: Platform Latch
169890 205 Revision A
