OPERATION
Auger speed NOT to exceed 320 rpm.
Auger Speed on A40-D Heade rs
On A40-D double knife headers, the auger speed is interdependent on reel speed, and is controlled by a switch on
the ground speed lever (GSL).

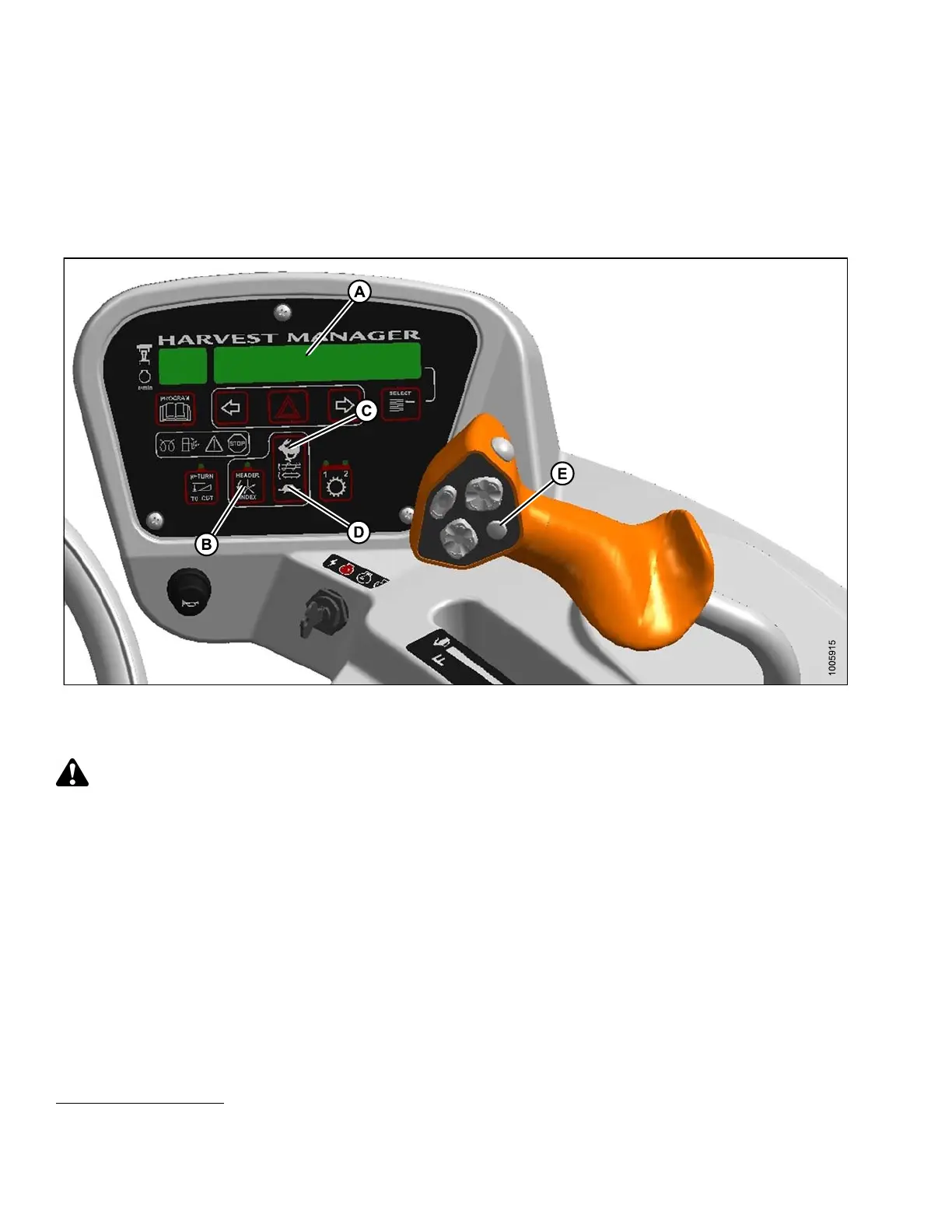

Figure 4.188: Operator Console
A-Disp
lay
B - H eader Index Switch C - Auger Fast
D - Auger Slow E - Display Selector D - Auger Slow
CAUTION
Check to be sure all bystanders have cleared the area.
Change auger speed a s follows:
1. Engage header.
2. Set HEADER INDEX sw itch (B) to OFF
3. On ground speed lever (GSL), press DISPLAY SELECTOR switch (E) until ##.# AUGER SPEED is displa yed
Display (A) shows ##.# AUGER SPEED
16
.
##.# = 4.7 to 9.9
4. Press FAST (C) or S LOW (D) on CDM until desired auger speed is displayed at (A).
16. Auger speed not to exceed 320 rpm.
