Setting Draper Index

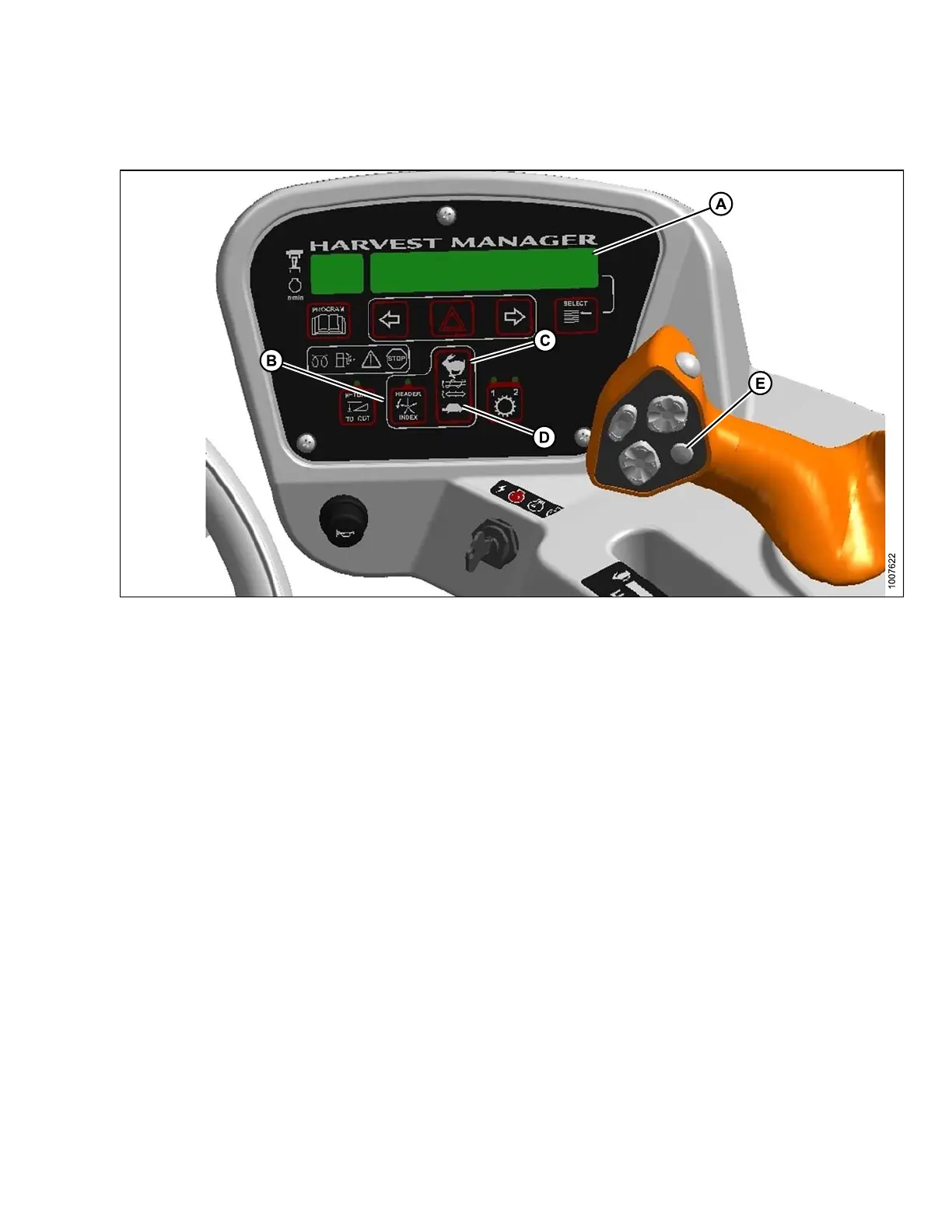

Figure 4.179: Operator Console
A-Displ
ay
B - Heade
r Index
C - Draper Fast
D - Draper Slow E - Display Selector
Set DRAPER INDEX as follows:
IMPORTAN T:
Windrower can be m oving, but must be GREATER THAN minimum reel speed.
1. Engage
header.
2. Set HEA
DER INDEX switch (B) to ON.
3. Press D
ISPLAY SELECTOR (E) so that DRAPER INDX is displa ye d a t ( A).
4. On cab
display module (CDM) press DRAPER FAST (C) or SLOW (D) until desired index is displayed at (A).
Displ
ay shows ##.## ##.# DRAP IND.
##.##
= MPH or KPH
##.# =
-1.9 to +3.0
