MAINTENANCE AN D SERVICING
4. Remov e plastic caps from bat tery posts.
5. Attach positive (red) cable terminals to positive post (A)
on batteries and tighten. Reposition plastic covers
onto clamps.
6. Attach negative (black) cable terminals to negative
post (B) on batteries and tighten clamps.
7. Turn battery switch to POWER ON position.

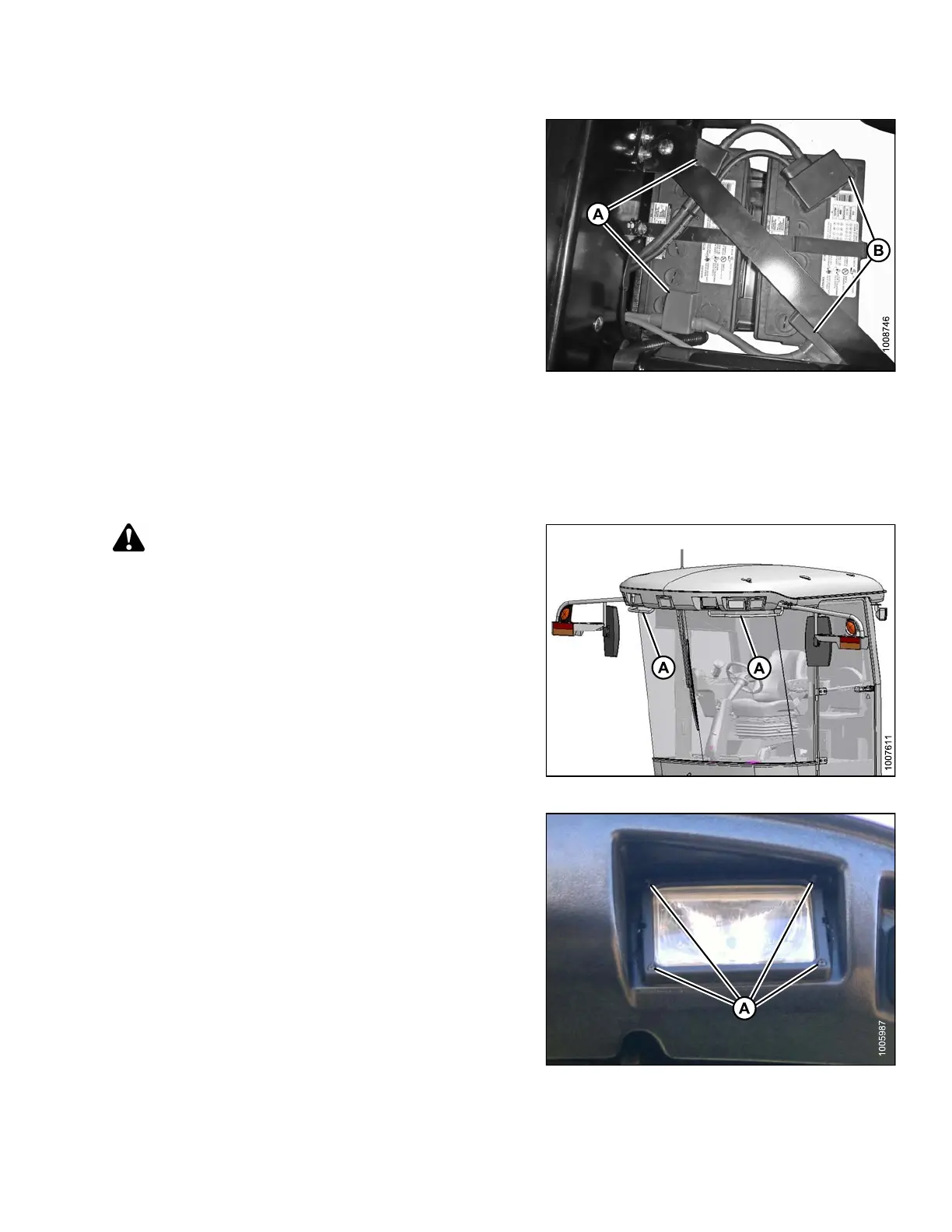

Figure 5.136: Batteries
Field Lig hts
Adjusting
Field Lights
The field lights are best adjusted with the machine in the field (or equivalent) to suit Operator preference.
DANGER
Stop engine and remove key from ignition before
leaving operator's seat for any reason. A child or
even a pet could engage an idling machine.
1. Hold onto handholds (A) on the cab front corners, and
stand on header anti-slip strips.
Figure 5.137: Field Lights
2. Adjus
t lights with screws (A).
Figure 5.138: Field Lights
169890 269 Revision A
