3.18 Cab Display Module (CDM)
3.18.1 Engine and Windrower Functions

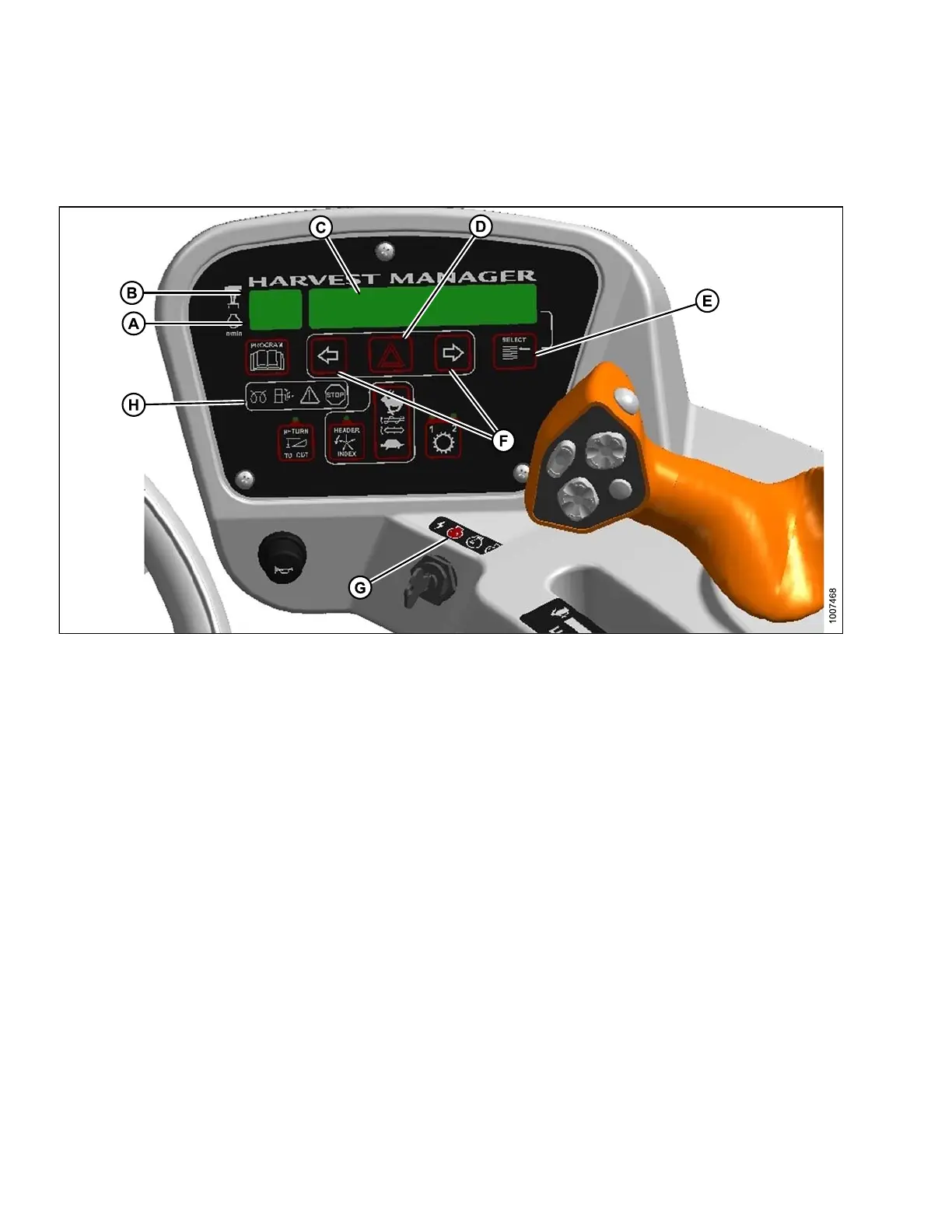

Figure 3.42: CDM Engine and Windrower Functions
A – Engi
ne rpm.
B –Grou
nd Speed: mph or kph.
C –DISP
LAY: Engine/win drower functions.
D –HAZ
ARD WARNING LIGHTS switch: Activates hazard warning lights, can ce ls turn signal.
E – SEL
ECT switch: Allows operator to select display item on lower line. Push to SELECT.
F –TUR
N SIGNAL switches: Activates turn signals on windrower and header Push-ON / Push-OFF.
G –IG
NITION switch positions: Accessory / Stop / Run / Start.
H –En
gine warning lights: Engine Pre-Heat / Water In Fuel / CAUTION / Stop Engine.
