OPERATION
4.6.2 Attaching Header Boots
Header boots a
re required to attach a D-Series Draper Header to the windrower.
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight box
attached to windrower, ensure that float engagement
pin is installed in storage location (B) and NOT
installed at hole location (A).

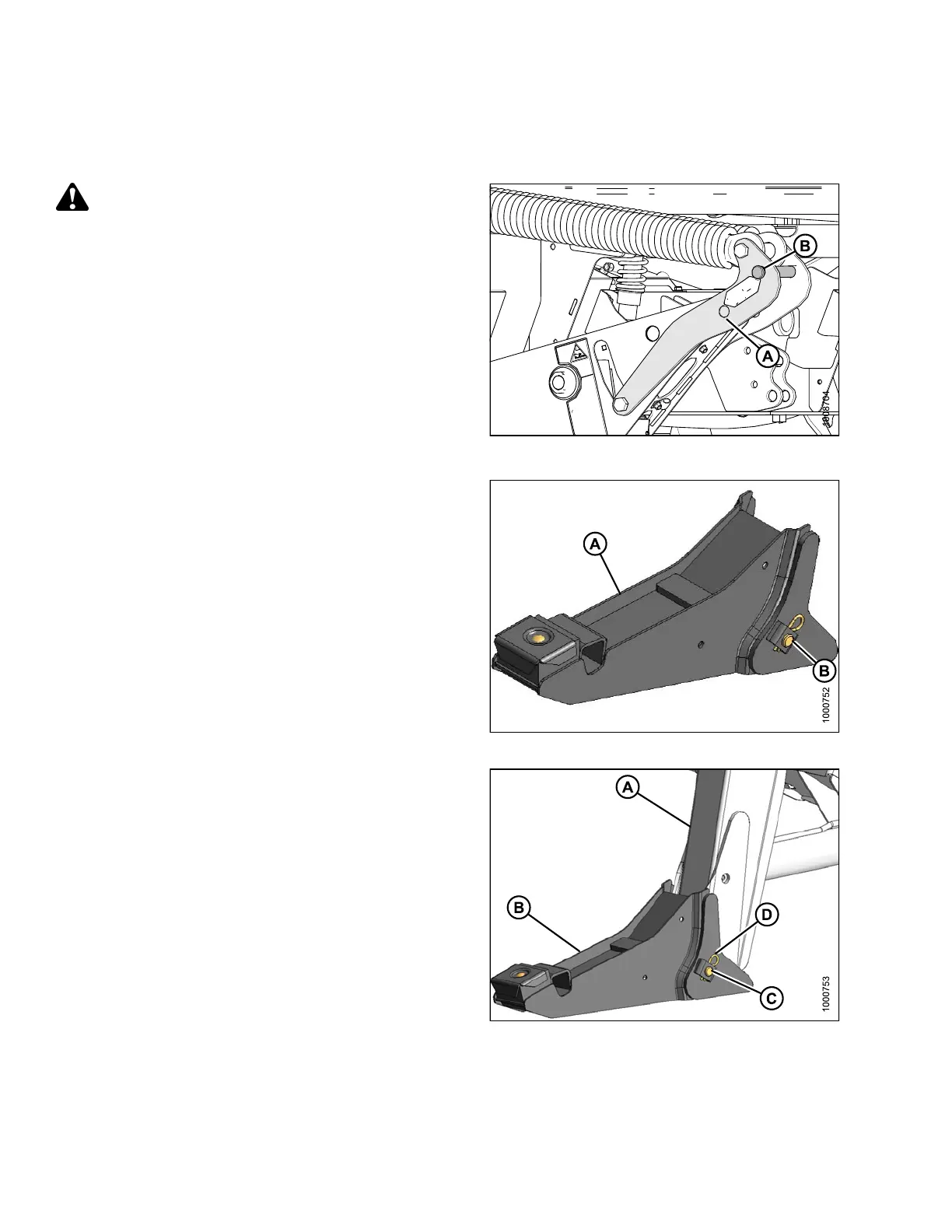

Figure 4.172: Header Lift
If NOT installed, attach draper header boots (supplied w ith
header) to windrower lift linkage a s follows:
1. Remove pin (B) from boot (A).
Figure 4.173: Header Boot
2. Position boot (B) on lift lin ka ge (A) and reinstall p in (C).
Pin m ay b e insta lled from either side of boot.
3. Secure pin (C) with hairpin (D).
4. Repeat for opposite side.
Figure 4.174: Header Boot
4.6.3 Header Position
Re
fer to 4.4 O perating with a Header, page 117 for procedures for controlling header height, header tilt, and float.
169890 168 Revision A
