OPERATOR’S STATION
3.18.5 Cab Dis
play Module (CDM) Programming

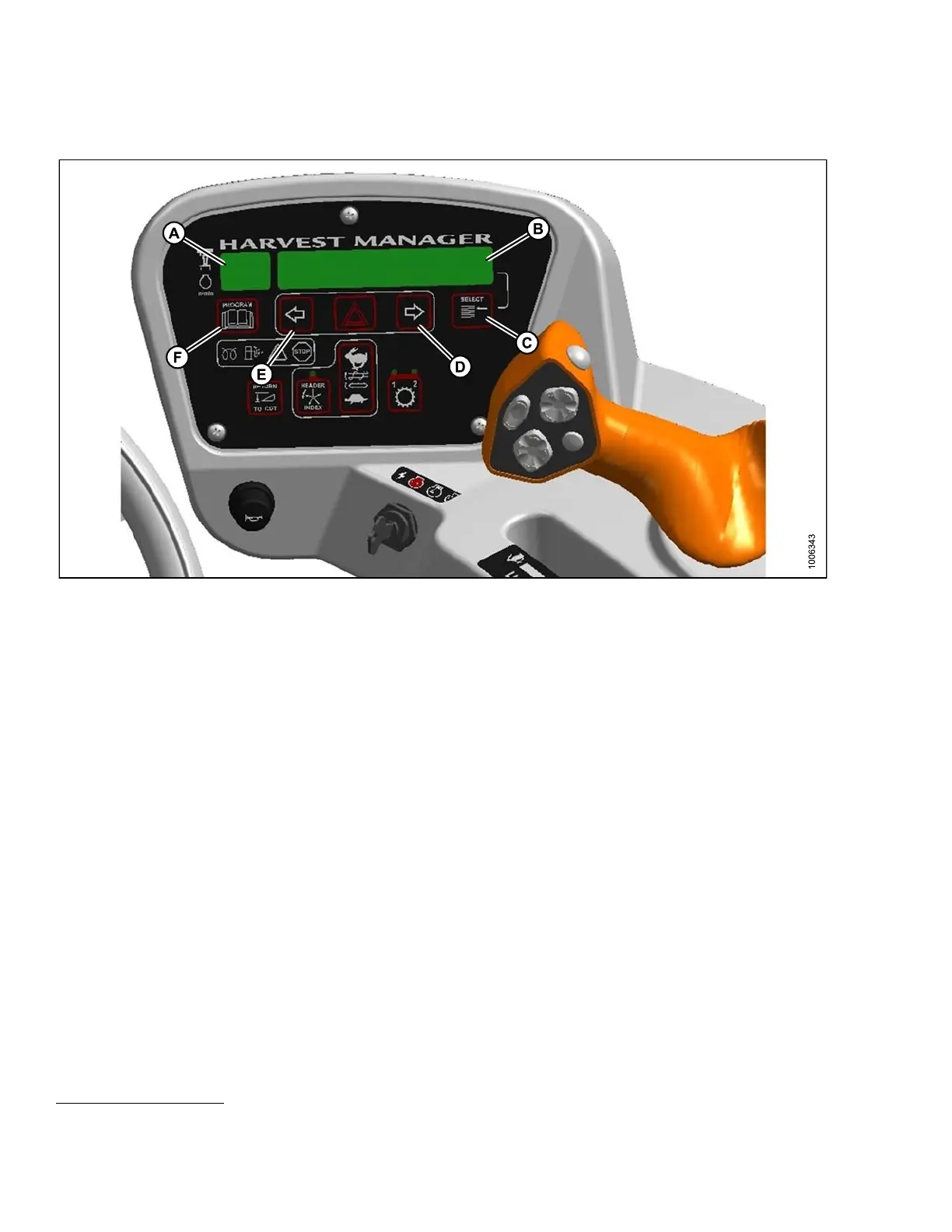

Figure 3.47: CDM
A-SideDisplay
B-MainD
isplay
C - Select Switch
D - Menu Item Scroll Forward E - Menu Item Scroll Backward F - Program Switch
SIDE D ISPLAY: displays software revision status.
• Upper Line – C### (CDM)
• Lower Line – M### (WCM)
MAIN DISPLAY displays menu item and selection.
• Upper Line – Menu Item
• Lower Line – Selection
SELECT SWITCH places monitor into Program Mode with PROGRAM switch. Press to accept menu item and
advancetonextitem.
MENU ITEM SCROLL FORWARD displays value under menu item.
• Push to scroll forward
• Hold down for fast sc roll
10
MENU ITEM SCROLL BACKWARD displays value under menu item.
• Push to scroll backward
• Hold down for fast sc roll
10
PROGRAM SW ITCH places monitor into program mode. Press while pressing SELECT s witch.
10. Fast scroll applies only when ch anging KNIFE SPEED, OVERLOAD PRESSURE, and TIRE SIZE.
