MacDon M105 - Road Lighting

OPERATOR’S STATION

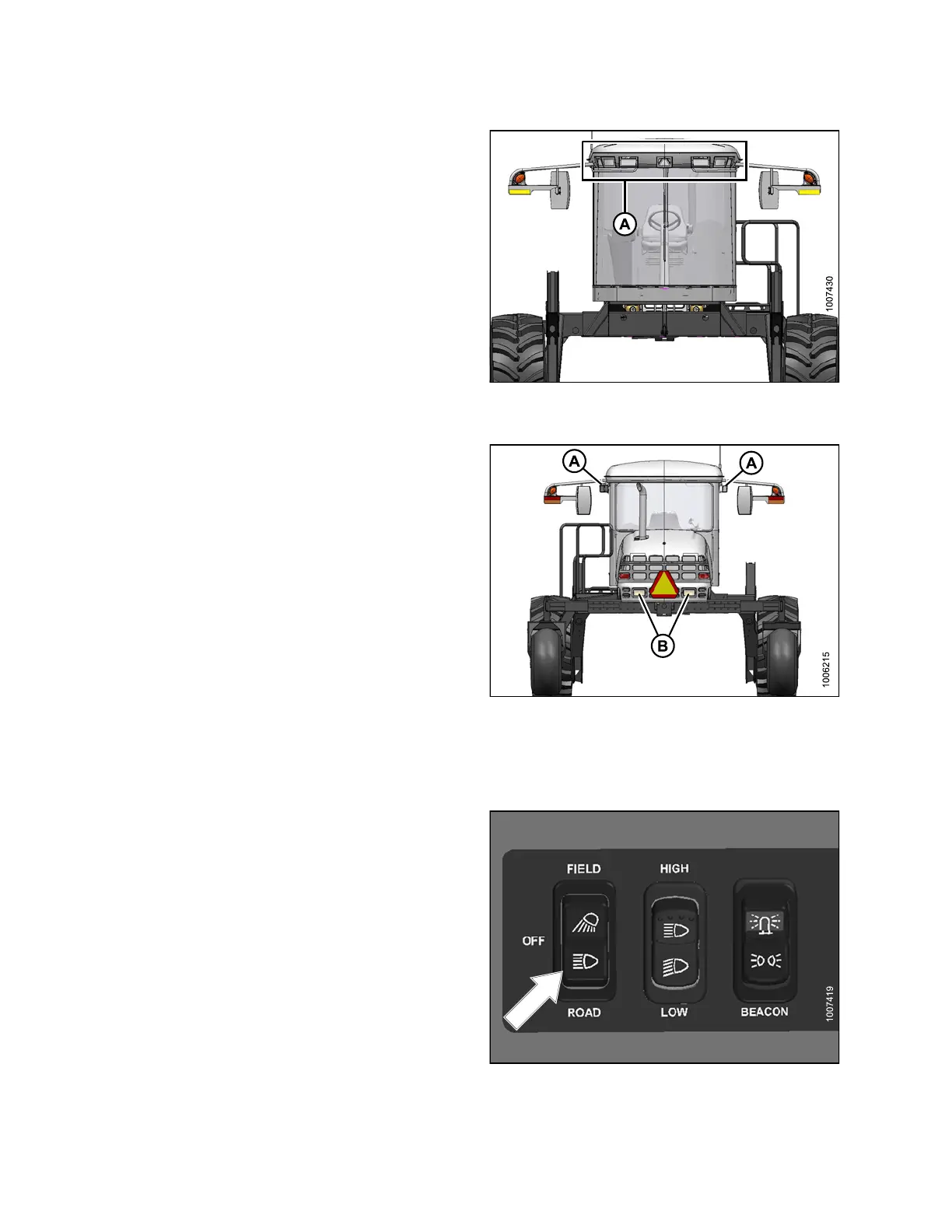

Figure 3.9: Front View - Field Lights
A-FieldLi
ghts
Figure 3.10: Rear View
A - Flood Lights
B-SwathLights-HIGH/LOW
3.7.2 Road Lighting
The following lights are ON/function al when th e sw itch is in
the ROAD position:
• road lights (front)
• turn signals/hazard
s (amber) (front)
• turn signals/hazar
ds (amber) ( rear)
• red tail lights
NOTE:
The hazard lights MUST be activated with the switch on
the cab display module (CDM) when driving on the road .
Figure 3.11: Road L
ighting Switch
169890
4
2
Revision A
