OPERATION
Setting Draper Minimum Speed

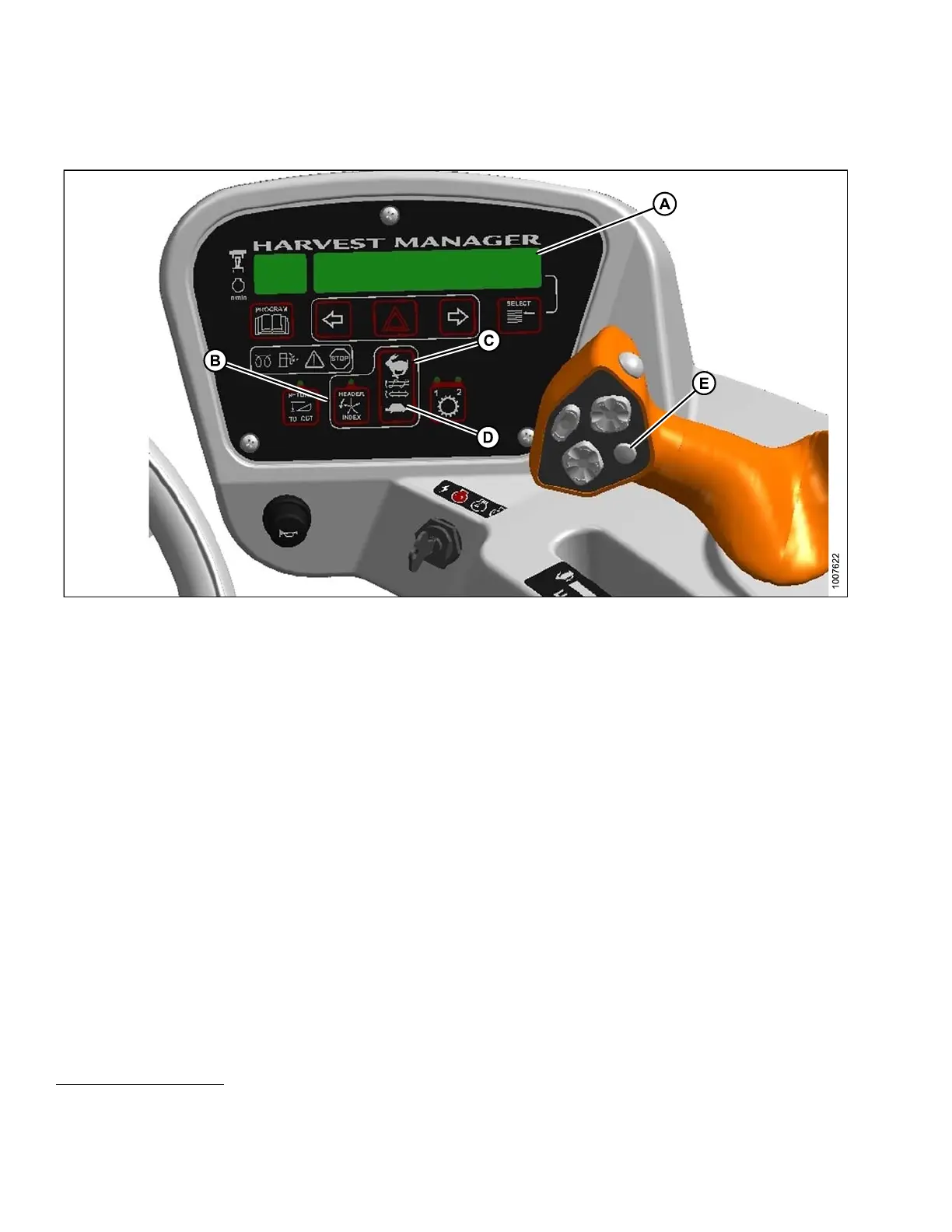

Figure 4.178: Operator Console
A-Displ
ay
B-Heade
r Index
C - Draper Fast
D - Draper Slow E - Display Selector
IMPORTANT:
Windrower can be moving, but must be LESS THAN minimum reel speed.
Set D RAPE R MINIMUM SPEED as follows:
1. Engage header.
2. Set HEADER INDEX (B) switch to ON.
3. Press DISPLAY SELECTOR (E) for DRAPER MIN.
4. On cab display module (CDM) press SLOW (D) until beep is heard.
5. Display (A) s ho ws ##.## DRAPER MIN
13
.
13. DISPLAY will flash ##.# M IN CONV (MPH or KPH) to prompt yo u to chang e the minimum set point, or increase ground
speed if Ground Speed Plus Index is less than the Minimum Draper Speed Set Point.
169890
1
72
Revision A
