MAINTENANCE AN D SERVICING
IMPORTAN T:
BATTERY IS NEGATIVE GROUNDED. Always connect
starter cable to the positive (+) terminal of battery and
battery ground cable to negative (-) terminal of battery.
Reversed polarity in battery or altern ator may result in
permanent damage to electrical system.
9. Attach negative (black) cables (B, D) to negative posts
on batteries, and tighten clamps. Then attach positive
(red) cables (A, C) to positive post on batteries and
tighten clamps.
10. Position plastic cove rs onto clamps .
11. Close the hood,refe r to 5.4.2 Clos ing Hood (L ower
Position), page 203.

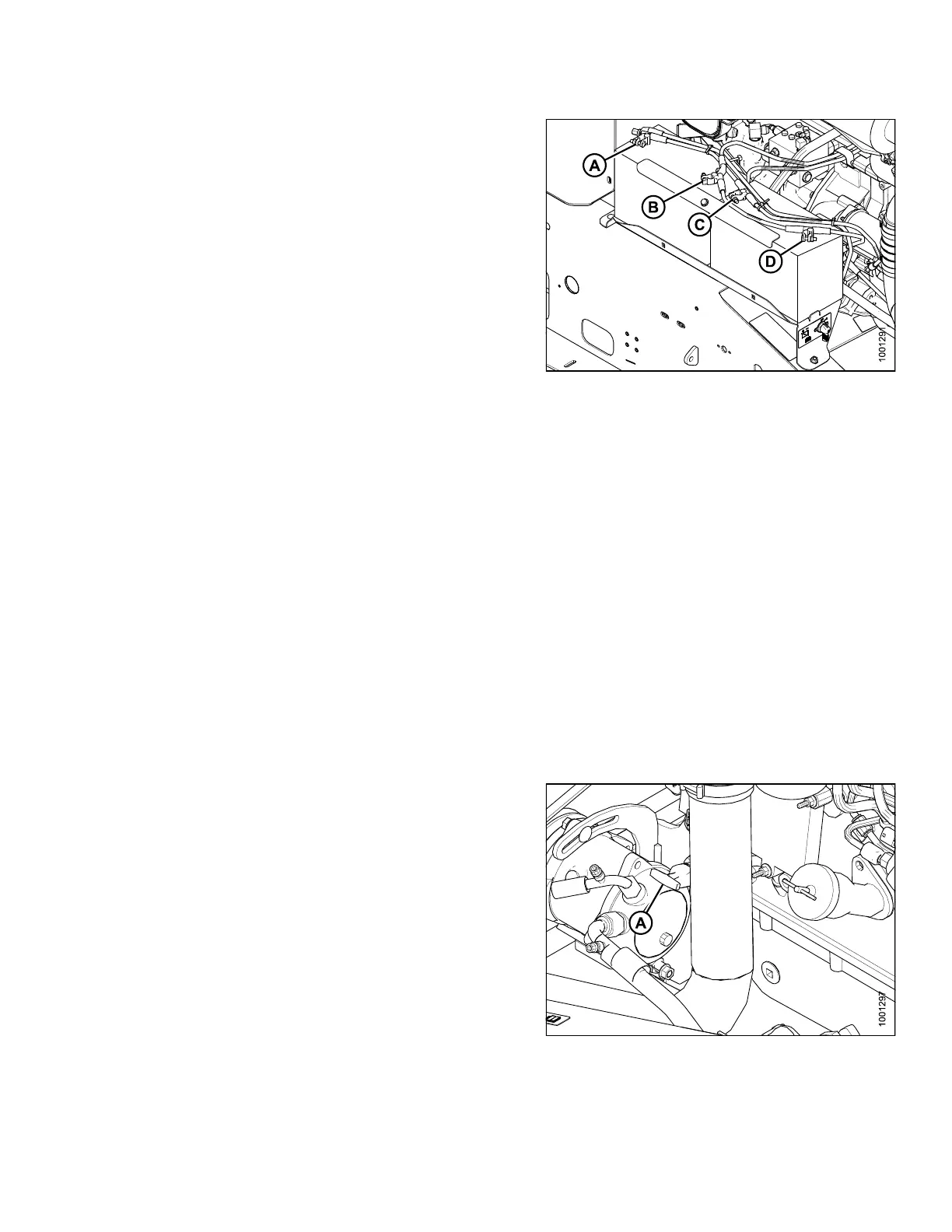

Figure 5.59: Battery Terminal Location
Engine Oil
Checking E
ngine Oil Level
Check engine oil level frequently and watch for any signs of leakage.
To check the engine oil level, follow these steps:
NOTE:
During t
he break-in p eriod , a higher than usual oil
consump
tion should be considered normal.
1. Open the hood to the lowest position. Refer to 5.4.1
Opening Hood (Lower Position), page 202.
2. Operate the engine at low idle, and check for leaks at
the filter and drain plug.
3. Stop the engine and remove the key. Wait about
5 minutes.
4. Remove dipsti
ck (A) by turning it counterclockwise
to unlock.
5. Wipe clean, r
einsert in engine , and then remove.
Figure 5.60: Engine Oil Level
169890
2
27
Revision A
