MacDon M105 - Windrower Dimensions

DESCRIPTION
2.3 Windrower Dimensions

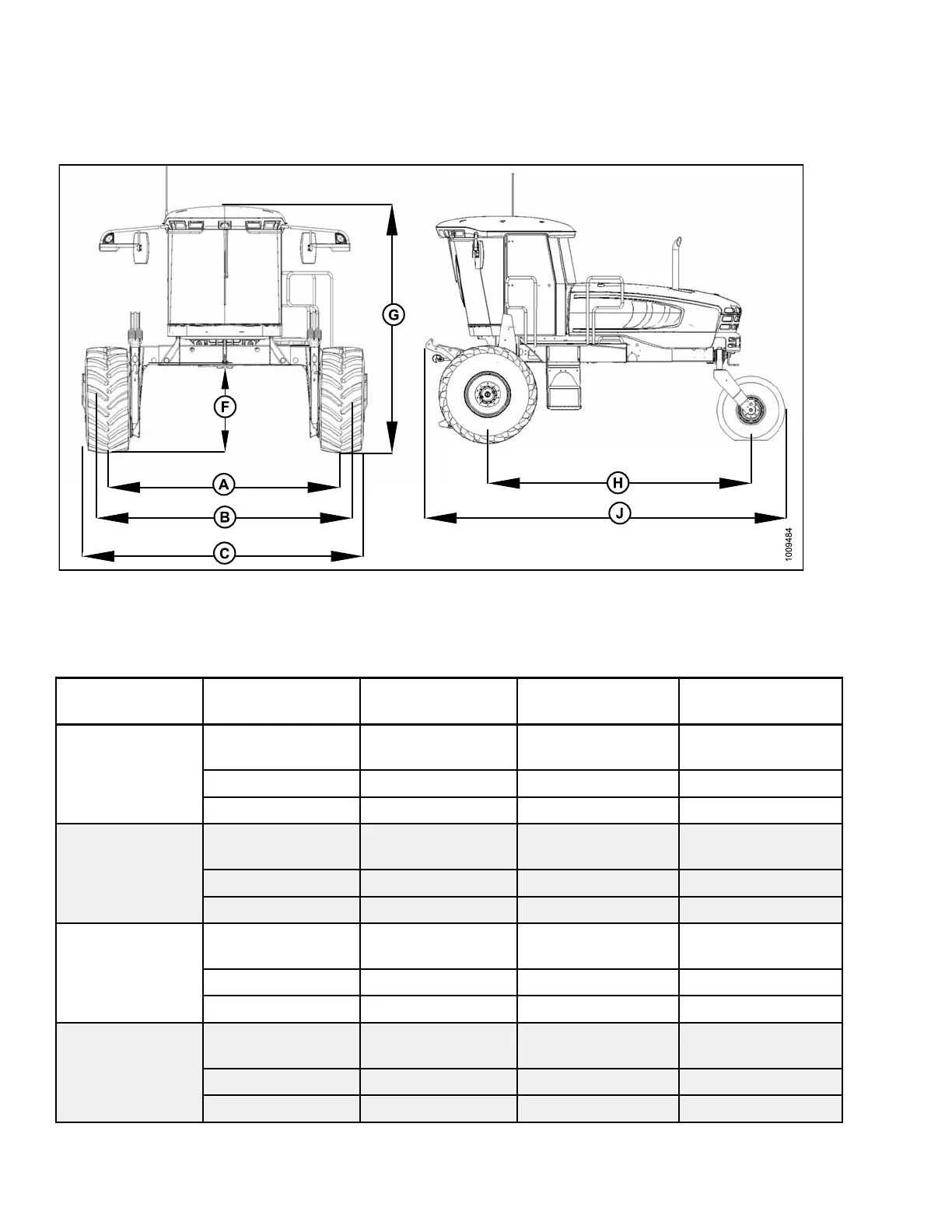

Figure 2.2: Windrower Dimensions – Forward
A-DriveT
ire Tread
B-DriveT
ire Hubs
C-DriveTires
F - 45-3/4 in. (1160 mm) G - 133 in. (3378 mm) H - 158-5/16 in. (4022 mm)
J - 207-7/8 in. (5280 mm)
Tab le 2.1 Drive Tires
Tire Size
Wheel Position
Tread (A)
in. (mm)
Hubs (B)
in. (mm)
Tires (C)
in. (mm)
Inner/Outer
(Shipping)
123-3/4 (3144) 140-9/16 (3571) 143-7/16 (3644)
Outer/Outer 130-7/8 (3324) 147-11/16 (3751) 150-5/8 (3824)
18.4 x 26 Bar & Turf
Narrow Track
Inner/Inner 116-11/16 (2964) 133-1/2 (3391) 136-3/8 (3464)
Inner/Outer
(Shipping)
130-11/16 (3319) 140-9/16 (3571) 150-3/8 (3819)
Outer/Outer 137-3/4 (3499) 147-11/16 (3751) 157-7/16 (3999)
18.4
x26
Bar a
nd Turf
Wide
Track
Inner/Inner 123-9/16 (3139) 133-1/2 (3391) 143-1/4 (3639)
Inner/Outer
(Shipping)
123-9/16 (3139) 140-9/16 (3571) 147-15/16 (3758)
Outer/Outer 130-11/16 (3319) 147-11/16 (3751) 155-1/16 (3938)
600/65R28
Radial Tire
Inner/Inner 116-1/2 (2959) 133-1/2 (3391) 140-7/8 (3578)
Inner/Outer
(Shipping)
126-1/8 (3203) 140-9/16 (3571) 149-5/16 (3793)
Outer/Outer 133-3/16 (3383) 147-11/16 (3751) 156-7/16 (3973)
23.1-26 and
580/70R26
Turf Tires
Inner/Inner 119 (3023) 133-1/2 (3391) 142-1/4 (3613)
169890 32 Revision A
