4.5 Attaching and Detaching H eaders
4.5.1 A ttaching a D-Series Header
Refer to the pr
ocedure that is appropriate for the center-link installed on the windrower:
• Attaching a D
-Series Header: Hydraulic Center-Link, page 131
• Attaching a D
-Series Header: Mechanical Center-Link, page 136
Attaching a D
-Series Header: Hydraulic Center-Link
NOTE:
This topic assumes that draper header boots have already been attached to the windrower lift linkage. If that is
not the case, refer to 4.6.2 Attaching Header Boots, page 168.
To attach a D-Series header to a windrower equipped with a hydraulic center-link, follow these steps:
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
1. Remove the hairpin (A) from pin (B) and remove the
pins from both header legs.

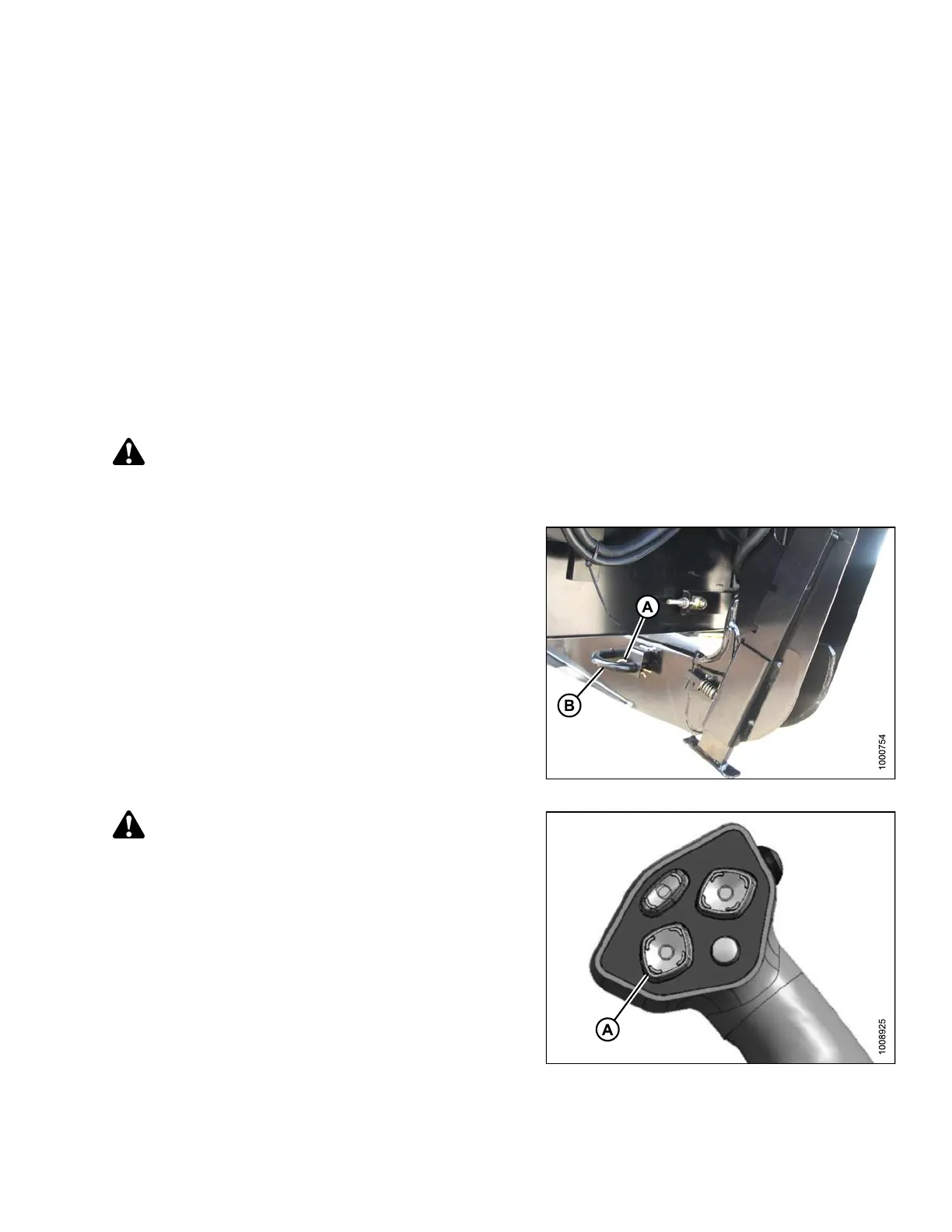

Figure 4.78: Header Leg
CAUTION
Check to be sure all bystanders have cleared the area.
2. Start en
gine and activate HEADER DOWN button (A)
on the gr
ound speed lever (GSL) to fully retract header
lift cyl
inders.
Figure 4.79: GSL
