OPERATION
4.2.2 Windrow
er Operating Symbols
These are the symbols used on the console for windrower operation.

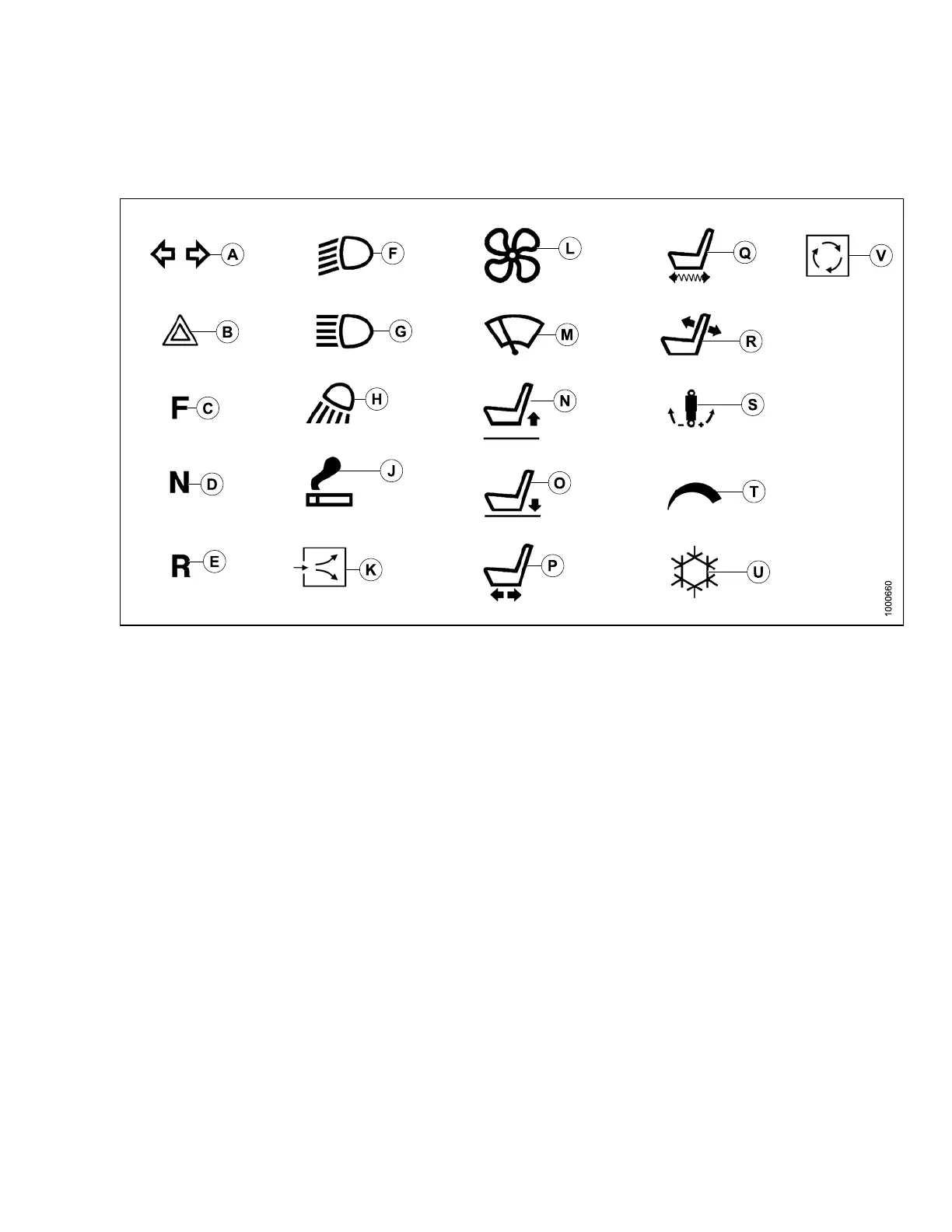

Figure 4
.2: Windrower Operating Symbols
A - Turn Signals
B - Hazar
d Warning Ligh ts
C - Forw
ard
D-Neutral
E - Reverse
F - He ad lights Low Beam / Road Lights
G - Head lights High Beam / Road Lights
H-WorkLight
J - Lighter K - Fresh Air
L-Bl
ower
M-Wi
ndshield Wiper
N - Seat Height Up O - Seat Height Down
P - Seat Fore and Aft Q - Seat Fore Aft Isolator
R - Seat Back Fore and Aft S - Seat Ride Damping
T - Cab Temperature Control U - Air Conditioning
V
- Recirculate
169890 83 Revision A
