OPERATION
4.6.9 Deck Shi
ft Control
When connected to a draper header with the deck shift option, hydraulic deck shift control allows you to s elect the
deck position and draper rotation of the header from the operator ’s station. It selects crop delivery from the left
side, center, or right side of the header.
Deck Shift
CAUTION
Check to be sur e all bystan d ers have cleared t he area.
Shift de cks a s follows:
1. Engage header by pushing down on the yellow
HEADER DRIVE button (A) , a nd pulling up on the
black ring at the base of the switch.

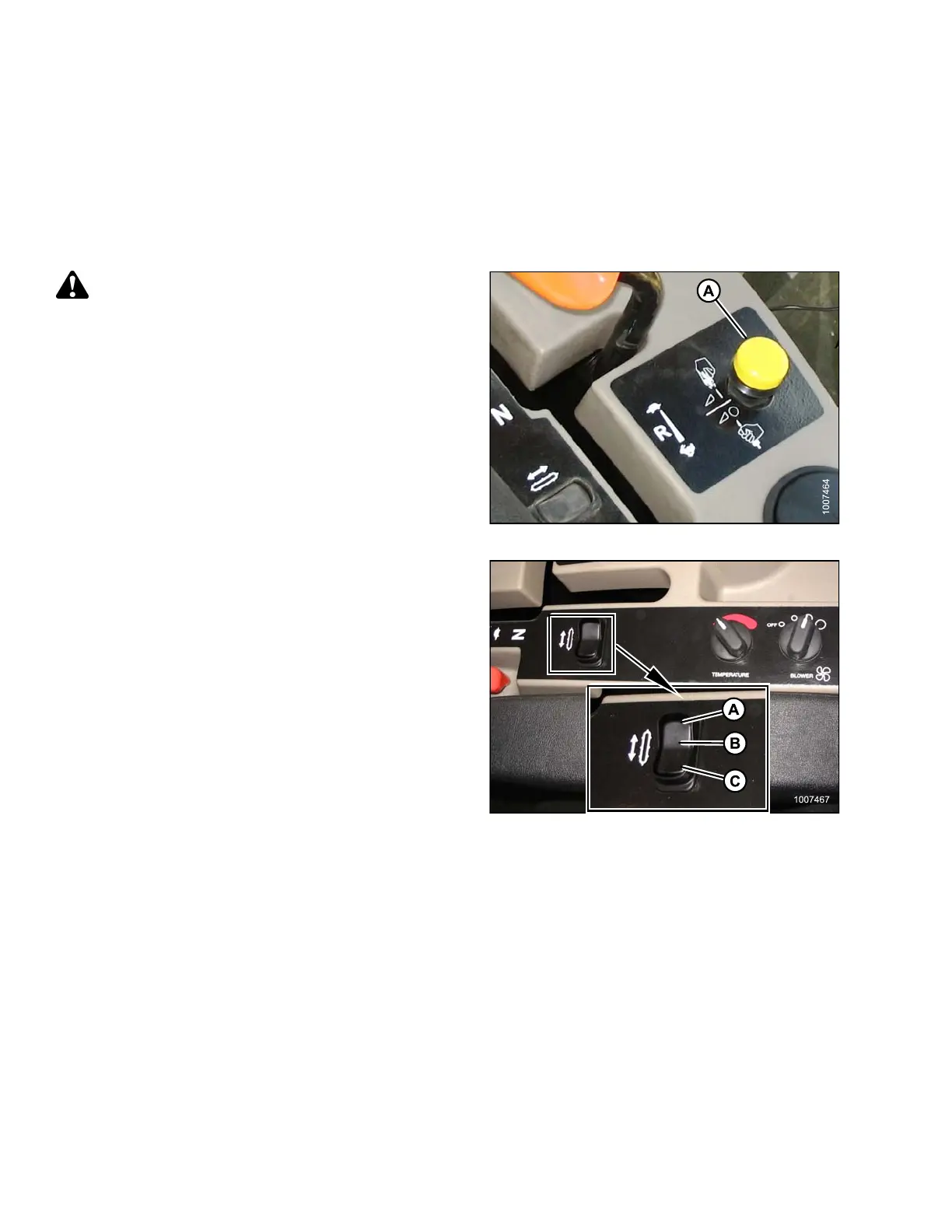

Figure 4.185: Header Drive Button
2. Push the rocker s witch to desired delivery p osition.
Deck(s) will move and direction of drapers will change
accordingl y.
3. Operate windrower.
Figure 4.186: Deck S hift Switch
A - Right Side Delivery B - Center Delivery
C - Left Side Delivery
169890 178 Revision A
