MAINTENANCE AN D SERVICING
5.5.3 Opening
Platform (Major Service Position)
To improve access to the hydraulics plumbing or battery, the platform can be swung away from the windrower.
CAUTION
Do NOT stand on the platform in the unlocked position. It is unstable and may result in a fall.
1. Open the hood. Refer to 5.4.1 Opening Hood (Lower
Position), page 202.
IMPORTAN T:
Failure to open hood w ill result in damage to the hood
when the platform is moved.

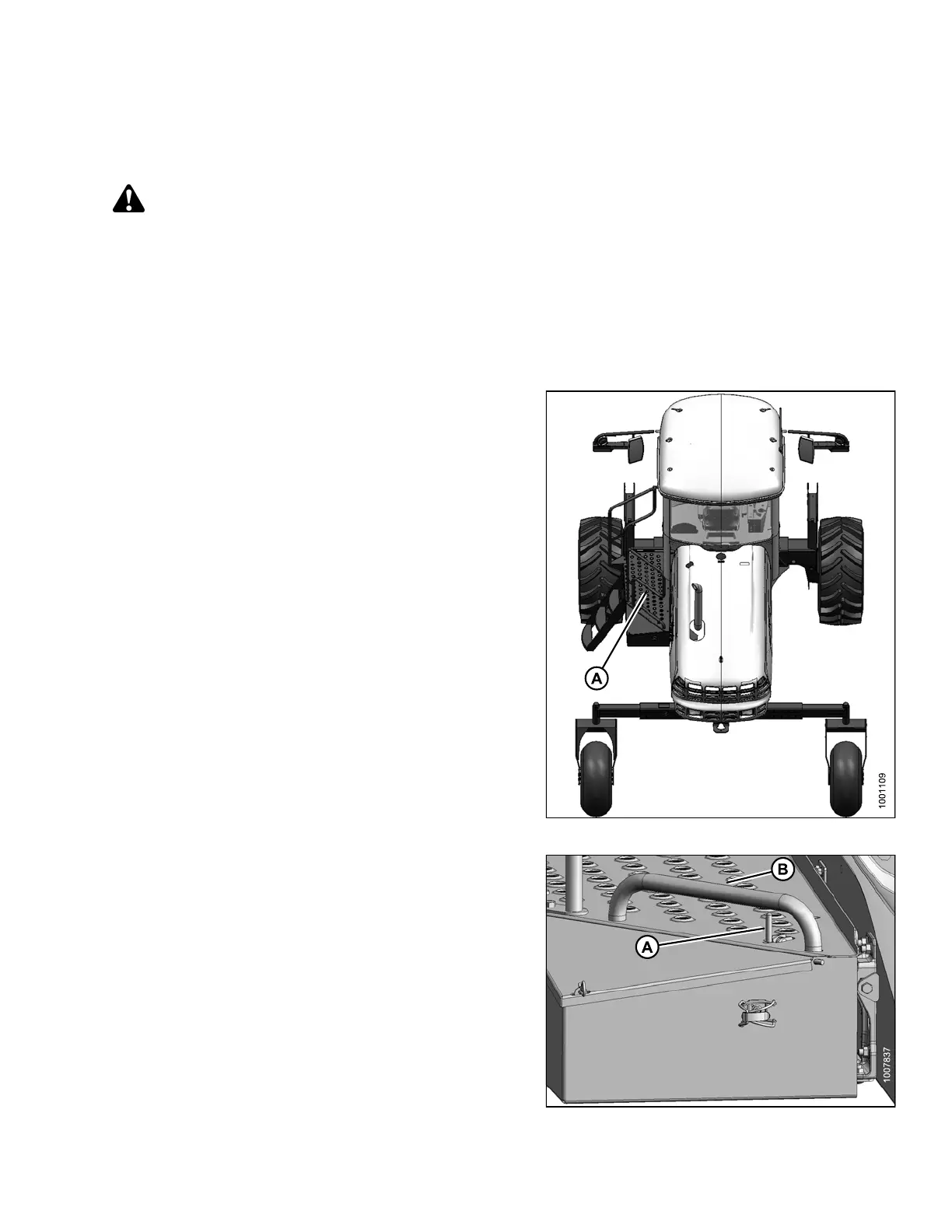

2. Approach the platform/stair unit (A) on the LH side of
the windrower.
Figure 5.24: Platforms
3. Unlock latch (A) and move platform (B) toward open
position. Do NOT lock in fu ll aft position.
Figure 5.25: Platform Latch
169890 207 Revision A
