3 Operator’s Station
The operator’s station is designed to provide access to windrower cont ro ls and ope r ator am enities.
3.1 Operator Console
The console contains controls to operate the windrower, as
well as amenities for the Operato r.

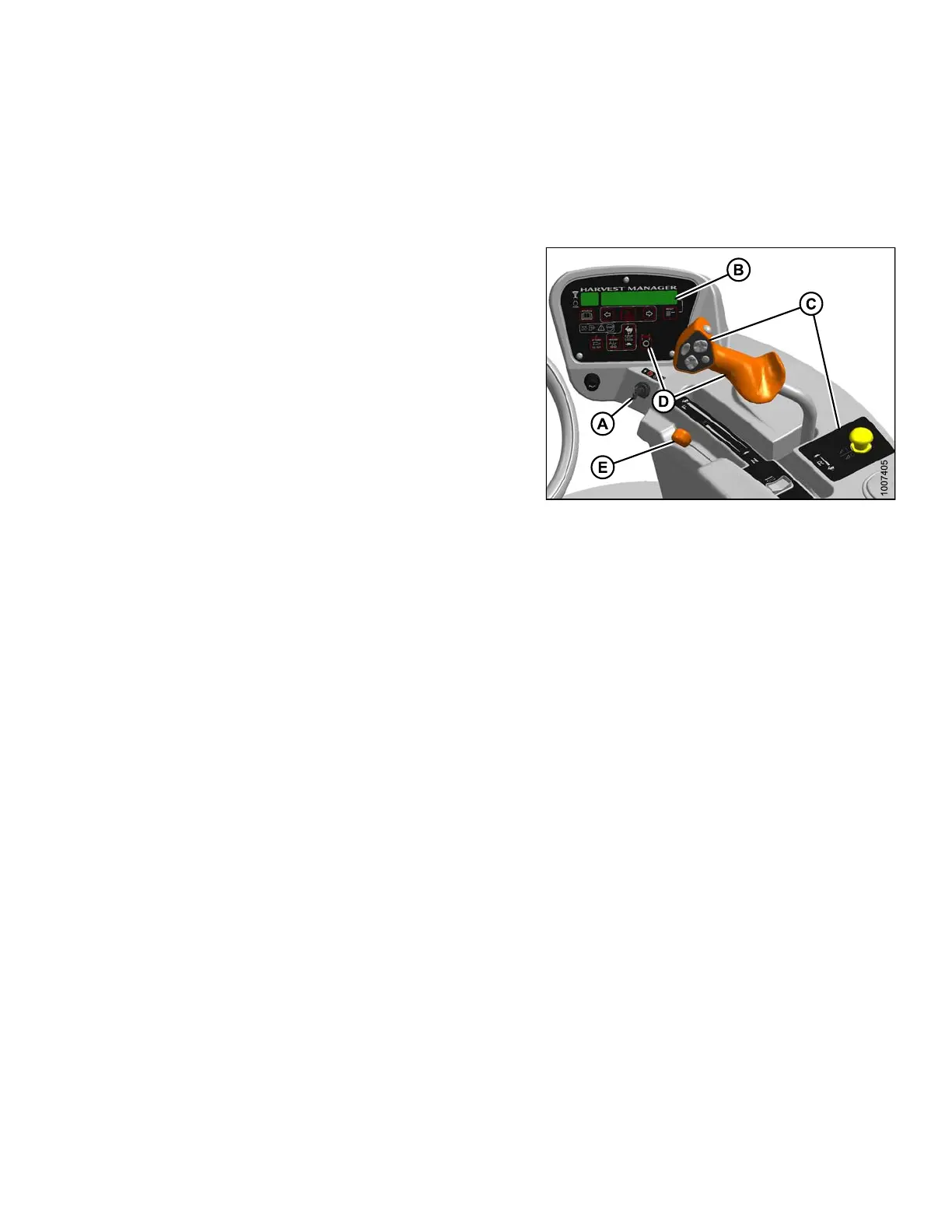

Figure 3.1: Operator Console
A - Ignition
B-Engin
e/Windrower Cab Display Module (CDM)
C - Header Controls (GSL, Header Drive Switch, Deck Shift)
D - Ground Speed Controls
E - Throttle
169890 35 Revision A
