OPERATION

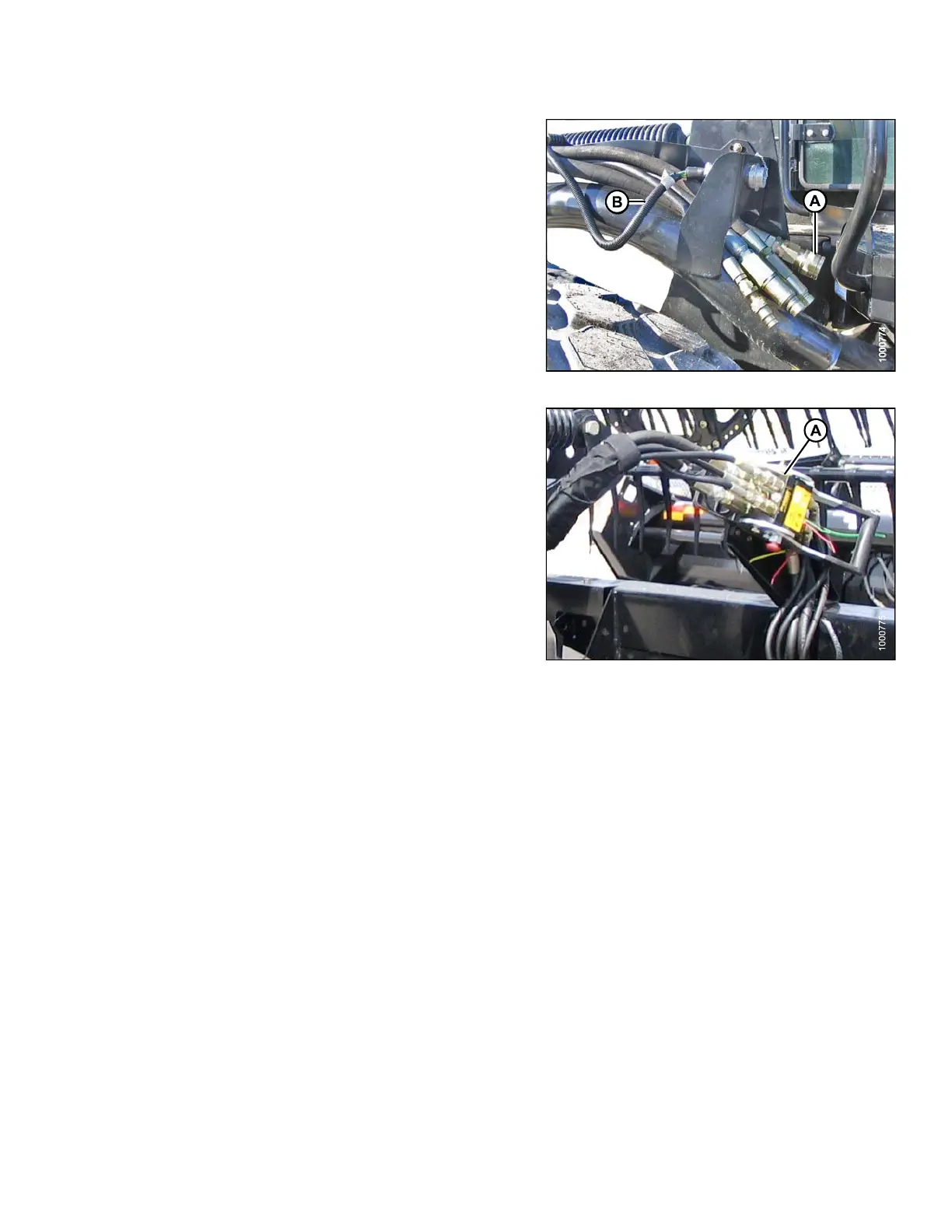

18. Connect header drive hoses (A) and electrical
harness (B) to header. Refer to the draper header
operator’s manual.
Figure 4.102: Header Drive Hoses and Harness
19. Connect reel hydraulics (A) at right-hand side
of windrower. Refer to the draper header
operator’s manual.
Figure 4.103: Reel Hydraulics
4.5.2 D etaching a D-Series Header
Refer t
o the procedure that is appropriate for the center-link installed on the windrower:
• Detach
ing a D-Series Header: Hydraulic Center-Link, page 142
• Detach
ing a D-Series Header: Mechanical Center-Link, page 145
169890
1
41
Revision A
