MAINTENANCE AND SERVICING
5.6.2 Lubrication Points

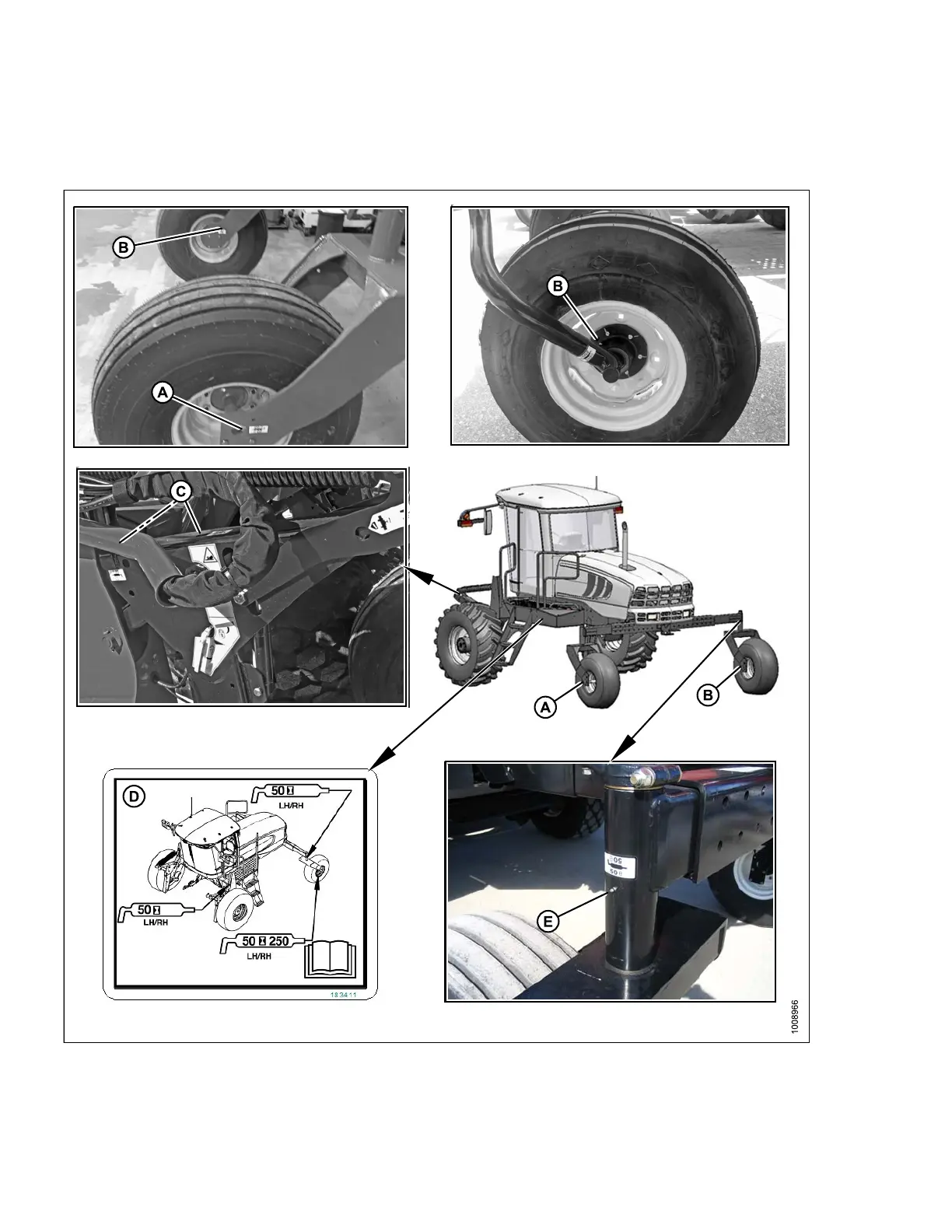

Refer to the following illustrations to identify various locations that req uire lubrication.
Fig
ure 5.30: Lubrication Points
A - Forked Caster Wheel Bearing (2 Places) (Outer—Both Wheels) B - Forked/Formed Caster Wheel Bearing (2 Places)
C - Top Link (2 Places) (Both Sides) (Inner—Both Wheels) (50 Hrs/250 Hrs)
D - Lubrication Decal (M D #183411) E - Caster Pivot (Both Sides)
169890 210 Revision A
