MAINTENANCE AN D SERVICING
Fuel System
Removing and Installing Fuel Tank Vent Filter
The fuel tank i
s vented by a hose that is connected to the filler tube. The hose is connected to a filter that should
be changed ann
ually.
Change the fil
ter as follows:
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
WARNING
To avoid personal injury or death from explosion or fire, do NOT sm oke o r allow flameorsparksnear
windrower when servicing.
1. Stop the engine and remove the key.
2. Open the hood. Refer to 5.4.3 Opening Hood (Highest
Position), page 203.
3. Open the left cab-forward side maintenance platform.
Refer to 5.5.1 Opening Platform (Standard Position),
page 205.
4. Locate filter (A) on v
ent line against hydraulic
oil reservoir.
5. Release hose tensi
on clamps (B) and slide away from
filter. Pull hoses o
ff filter.
6. Position new filter
throughholeinframeandattachtop
hose onto filter. IN
marking should face down.
NOTE:
If filter has an arrow instead of an IN marking, arrow
should point up.
7. Attach lower hose to filter and secure both hoses with
tension clamps (B).
8. Close hood, refer to 5.4.4 Closing Hoo d (Highest
Position), page 204.

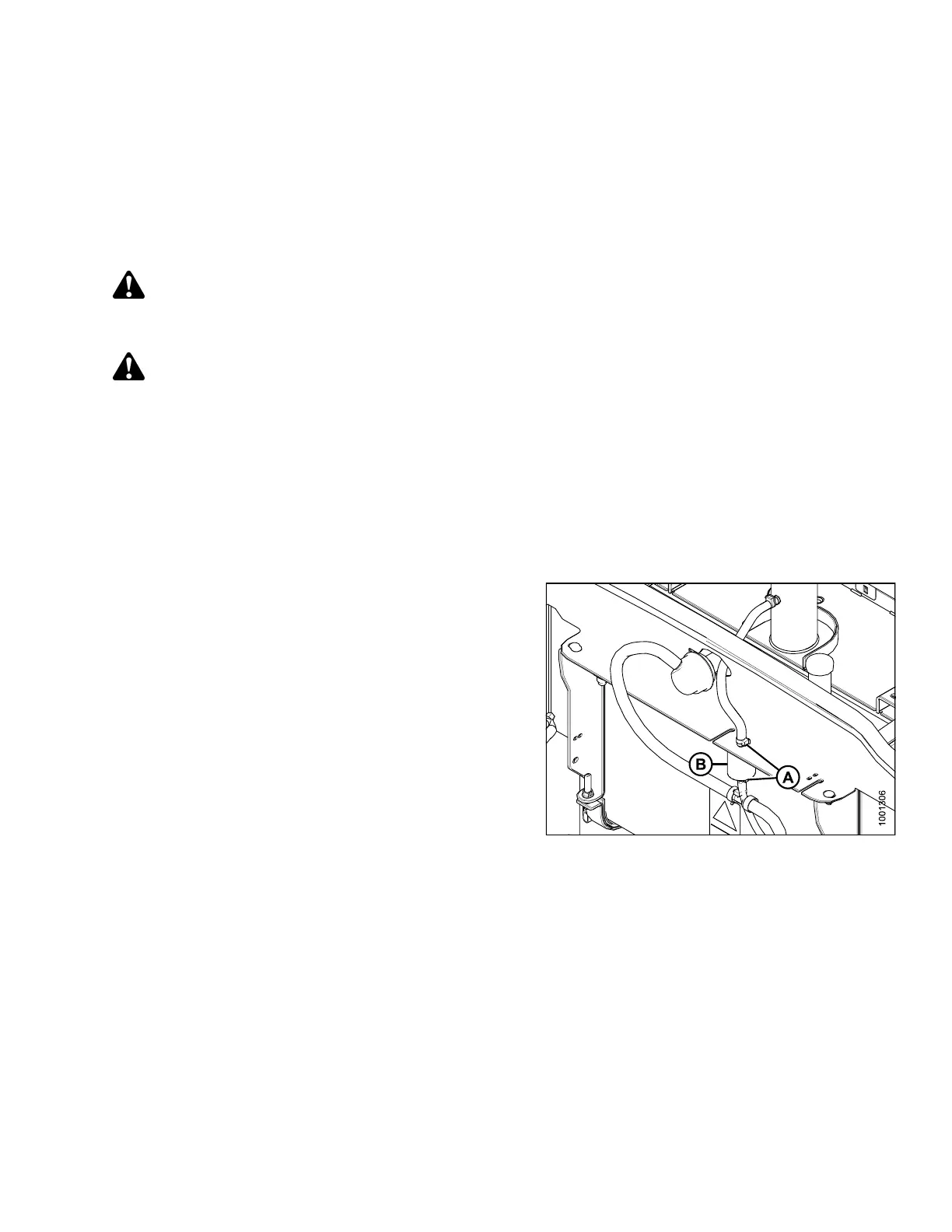

Figure 5.78: Fuel System
169890 237 Revision A
