MacDon M105 - Display Warnings and Alarms

OPERATOR’S STATION
Display Warnings and Alarms
Informs Operator of abnormal windrower conditions.

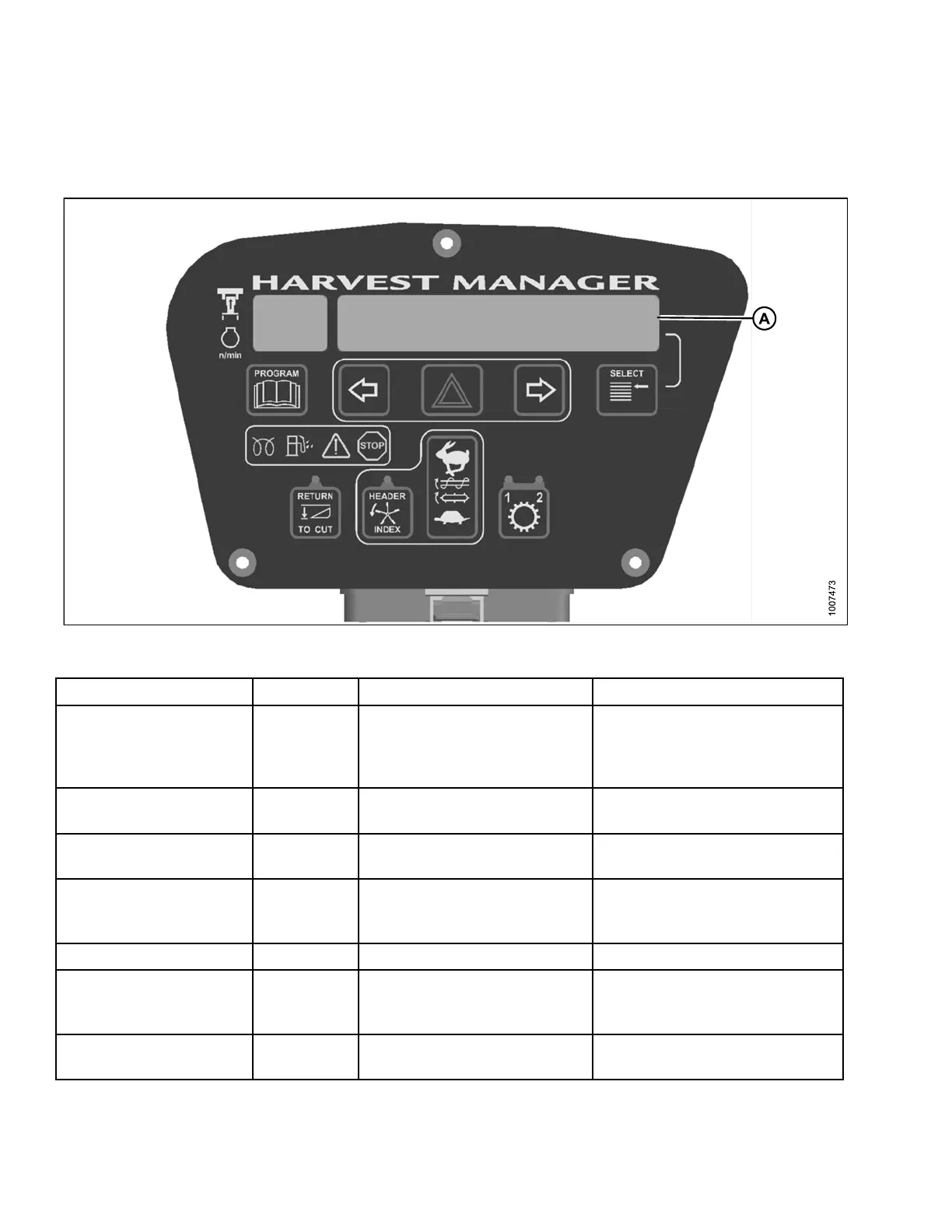

Figure 3.46: CDM Display Warnings and A larms
Display (A) Flashing Alarm Tone Description
CENTER STEERING
Beeps at 2 per second until
corrected
Interlock switch not closed with
key ON / engine OFF: GSL not in
N-DETENT or steering wheel not
centered
DISENGAGE HEADER
X None
Header switch is ON when ignition
switch turned ON
ENGI
NE OIL PRESS URE X
Conti
nuous loud tone until oil
pres
sure is regained
Low engine oil pressure
accompanied by w arning lights
ENGINE TEMPERATURE
X
Ongoing intermittent moderate
tone until temperature is below
215°F (102°C)
Engine temperature over 230°F
(110°C) accompanied by warning
lights
HEADER DISENGAGED
None Normal
IN PARK X
On
e short beep
GS
LinN-DETENT,steering
wh
eel centered, and brakes are
en
gaged
KNIFE S PEED
OVERLOAD
X
Ongoing intermittent moderate
tone until condition is corrected
Machine overload: knife speed
drops below programmed value
