OPERATION
4.6.4 Reel For
e-Aft Position
Press and hold
theswitchforthedesiredFORWARD(A)
or AFT (B) move
ment of the reel.

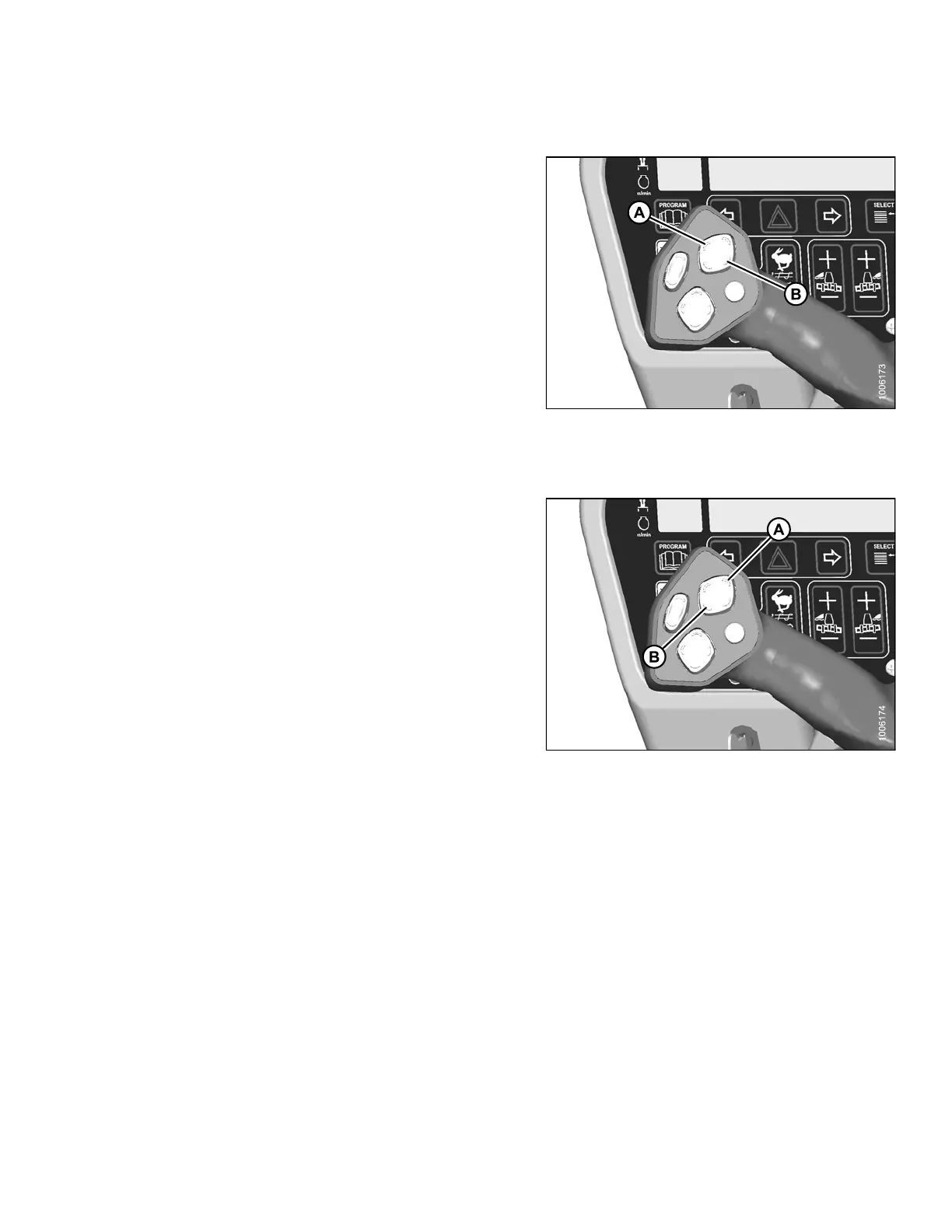

Figure 4.175: Ground Speed Lever (GSL)
4.6.5 Reel Height
Press and hold the switch for the desired movement of the
reel REEL UP (A) or REEL DOWN (B) .
IMPORTAN T:
Under certain conditions, with reel raised to full height,
the reel tines may contact the cab roof. Exercise care to
avoid damage to the machine.
Figure 4.176: Ground Speed Lever (GSL)
4.6.6 R eel Speed
The re
el speed is controlled with switches on the Ground Speed Lever (GSL) in the cab. On D-Series draper
heade
rs, it can be set relative to the ground s pe e d of t he windrower using the HEADE R INDEX feature or
can r
un independently. Refer to the operator’s manual for your specific header for windrowing guidelines and
reco
mmended speeds.
Reel
to Ground Speed
Setting the speed of the reel relative to ground speed (using the HEADER INDEX function) allows you to run the
engine at lower rpm while maintaining the desired ground and reel speed. Reducing engine speed saves fuel and
reduces noise in the cab.
NOTE:
The header index feature requires the optional expansion module. Refer to 7.1.10 Expansion Module,
page 338.
