MAINTENANCE AN D SERVICING
1. Shut down engine and remove the key. Turn lights
OFF.
NOTE:
Hold onto handholds (A) on cab front corners and stand
on header anti-slip strips, or stand on maintenance
platform when accessing the amber lights.
2. Remove two sc
rews (B) from lens, and remove lens.
3. Push and twis
t light bulb to remove from socket.
4. Install new
bulb, ensuring that bulb base is properly
engaged in s
ocket. Use Bulb Trade #1156.
5. Reinstall l
ens with screws (B).

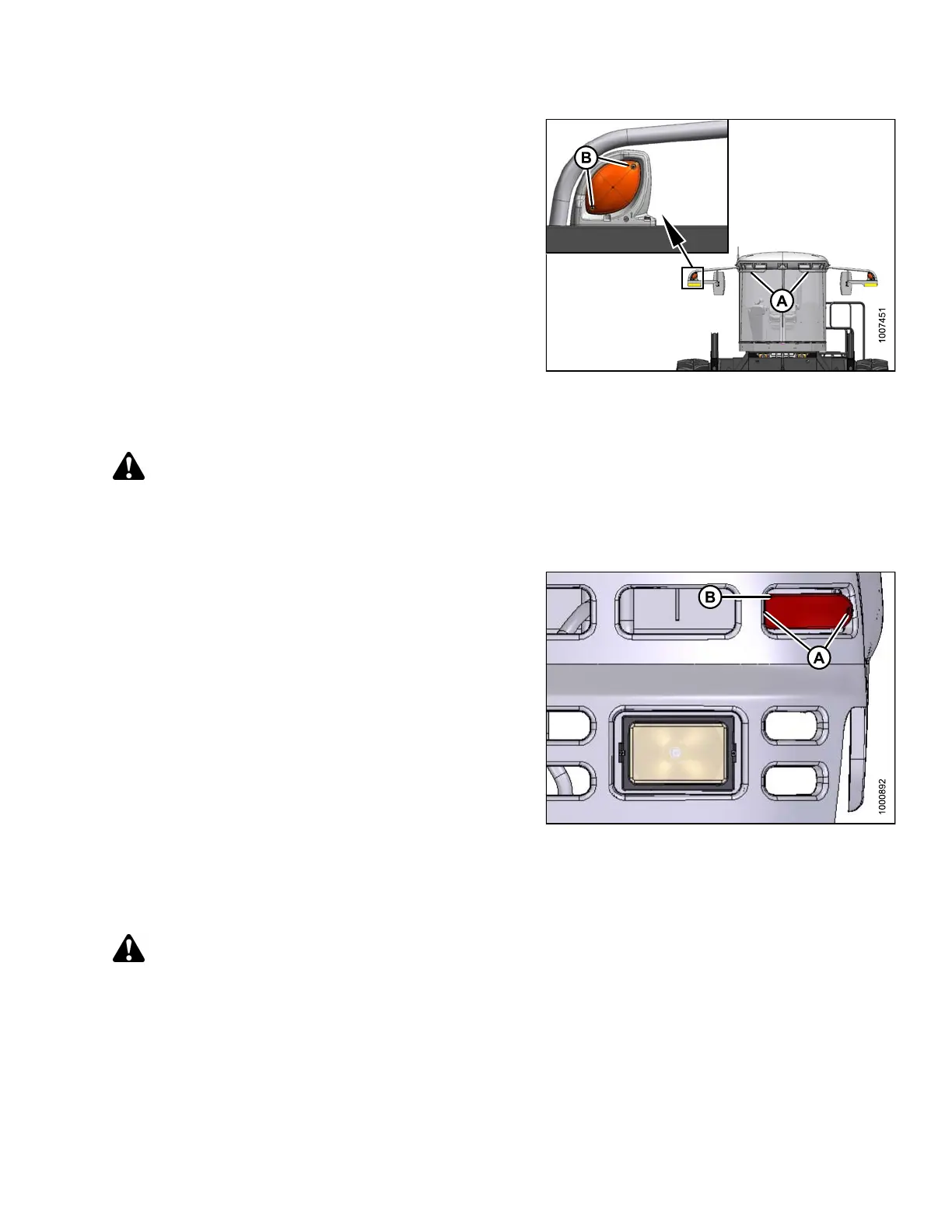

Figure 5.153: Amber Lights
Red Tail Lights
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
1. Shut down engine and remove key. Turn lights OFF.
2. In the grill of the h
ood, remove two screws (A) from
light (B), and rem
ove light.
3. Remove connector
from light.
4. Connect wiring ha
rness to new light (B) and install light
with screws (A).
Figure 5.154: Red Tail Lights
Beacons (if installed)
Warning beacons are available as an optional Dealer-installed attachment (MD #B5582).
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
169890
2
77
Revision A
