MAINTENANCE AND SERVICING
4. Pinch the wire retainer (A), and lift away from hooks.
5. Remove bulb (B) from body, and pull wire from
connector (C).
IMPORTANT:
Do NOT to uch the glass of the h alogen bulb as the oils
or other chemicals f rom your skin will cause th e bulb to
fail prematurely.
6. Match slots o
n new bulb (B) with lugs (D) in optical unit,
and insert bu
lb in to unit.
7. Secure bulb
with wire retainer (A).
8. Push wire in
to connector (C).
IMPORTANT:
For p roper lig hting pattern, be s ure lights a re installed
right side up.

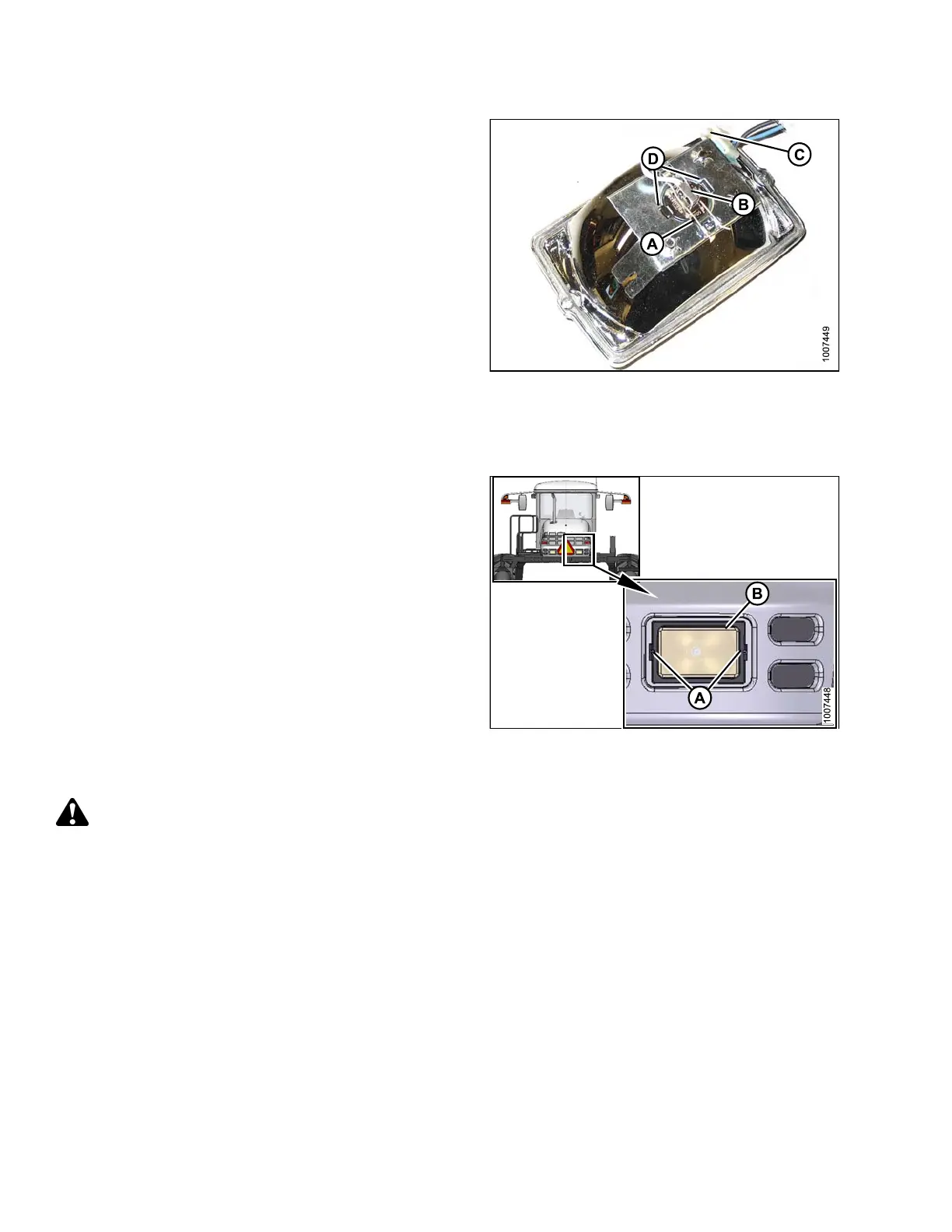

Figure 5.151: Lamp Assembly
9. Position light into light receptacle, ensuring top is up,
and secure with bezel (B) a nd screws (A).
Figure 5.152: Swath Lights
Amber Lights
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
