MacDon M105 - Cab Display Module (CDM) Warning;Alarms; Engine Warning Lights

OPERATOR’S STATION
3.18.4 Cab Dis
play Module (CDM) Warning/Alarms
The CDM displays warnings and sounds alarms to notify of abnormal windrower status at startup when the ignition
is turned ON, and at engine operating speeds above 500 rpm.
Engine Warning Lig hts

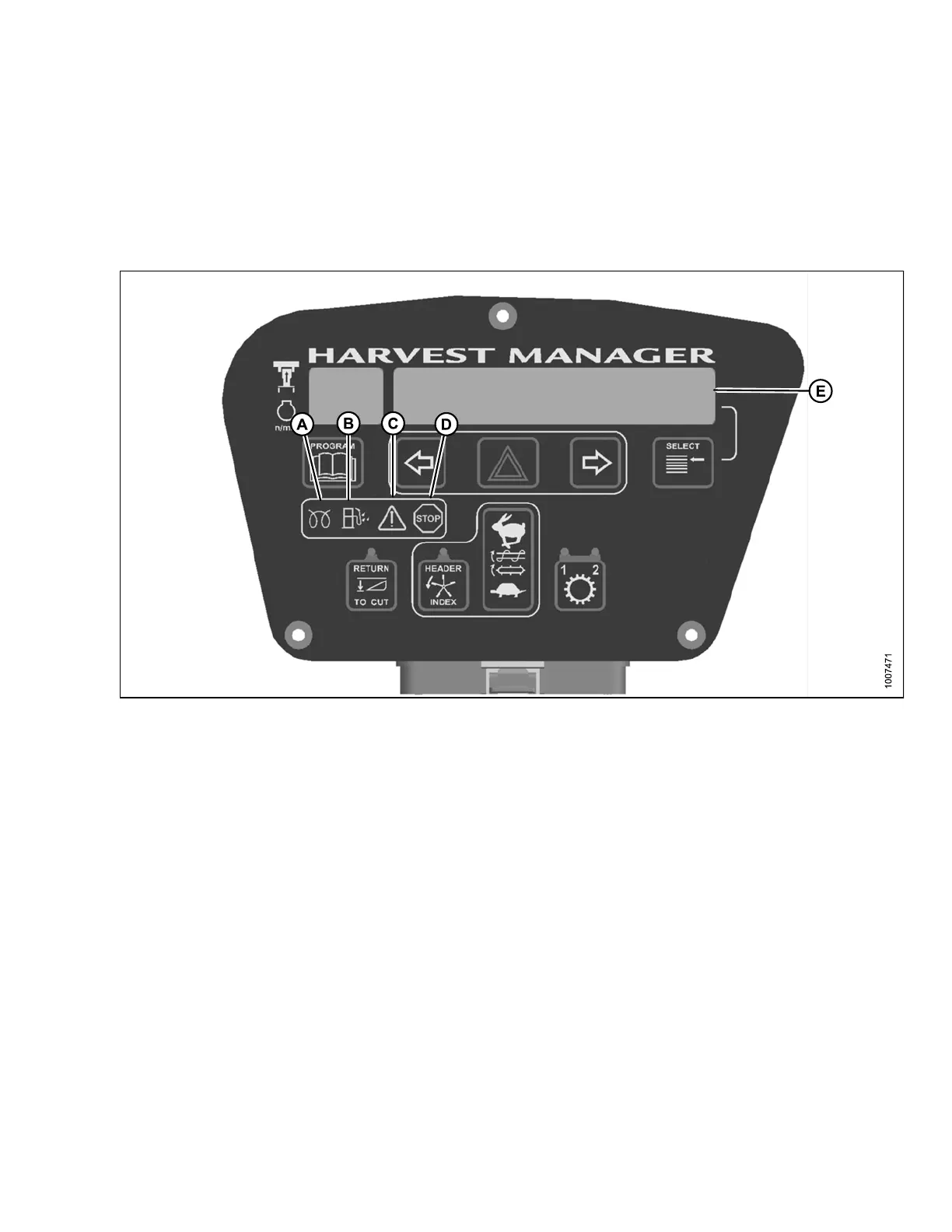

Figure 3.45: CDM Engine Warning Lights
A - Engi
ne Pre-Heat
B-Wate
rinFuel
C-Caution D-Stop
E-Dis
play
• ENGINE PRE-HEAT: Illuminates yellow. Wait to start eng in e.
• WATER IN FUEL: Illuminates yellow. Service recommended.
• C AUTION: Illuminates yellow. Prompt attention is required. Refer to display code.
• STOP: Illuminates red. Stop engine immediately. Refer to display code.
• D ISPLAY: Displays malfunction code. Refer to 8 Engine Error Codes, page 341 or Dealer.
