OPERATOR’S STATION
3.11 Interior Lights
Two interior lights are installed in the cab headliner.
A low intensity LED light (A) is located directly overhead to
provide ambient lighting if desired, and functions only when
the R O A D/FIELD light switch is O N . An ON-OFF switch is
located on the light.

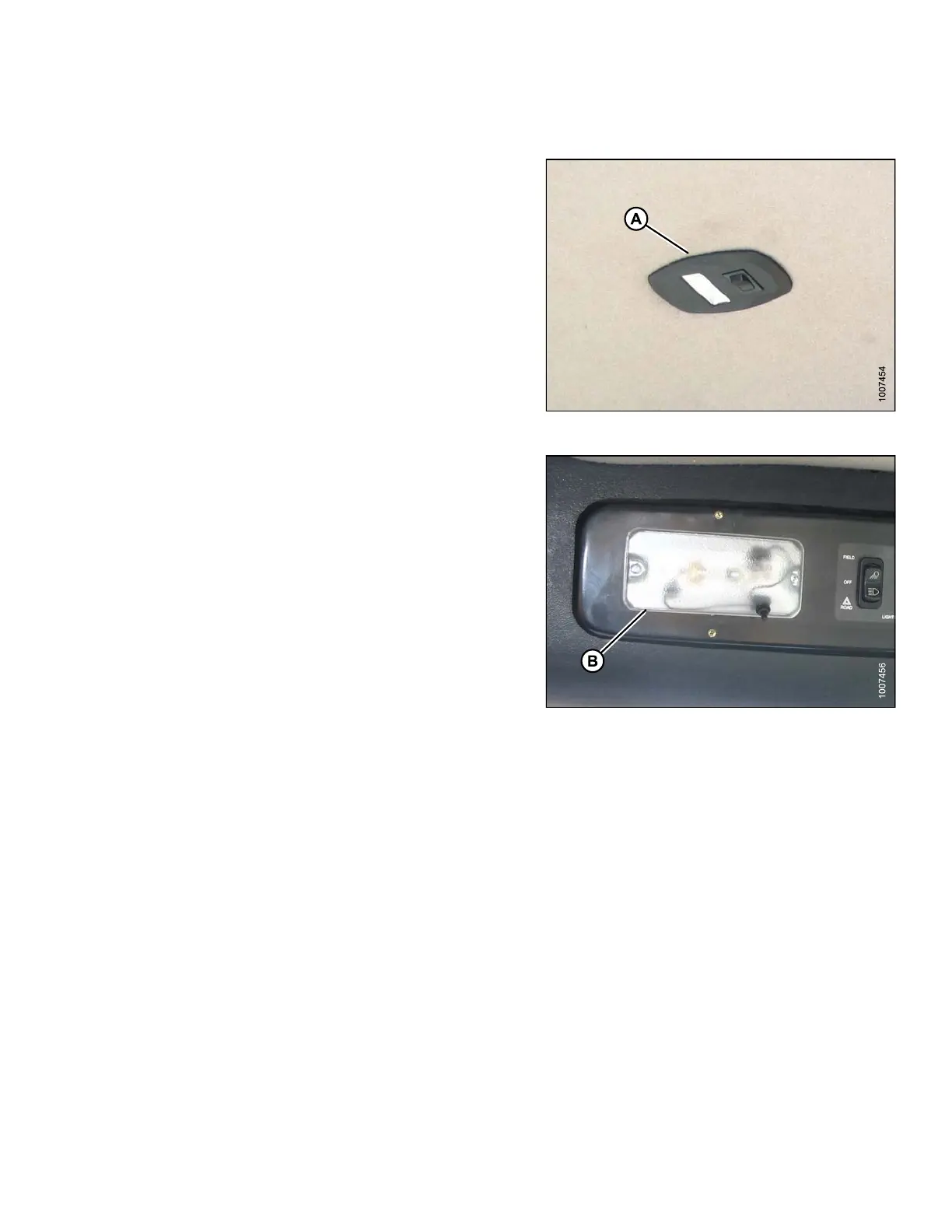

Figure 3.23: Interior Lights
The other interior light (B) is located on the headliner sw itch
panel, and the push-ON, push-OFF button is located on
the light.
Figure
3.24: Interior Lights
