OPERATOR’S STATION
3.17 Header Controls
All header controls are conveniently located on the operator ’s console and on the ground speed lever (GSL) handle.
NOTE:
Some controls are optional equipment and may not be present in your unit. Some controls may be installed, but
will be nonfunctional for certain headers.
Refer to specific header sections in this manual for detailed operating procedures of all header controls.
3.17.1 Header Drive S witch
The header drive switch (A) engages and disengages the header drive.
To engage the header drive, push the switch to center and
pull up.
To disengage the header drive, push the switch down.
IMPORTANT
:
Always mo
ve throttle lever back to IDLE before engaging
header dr
ive. Do NOT engage header with engine at
full rpm.

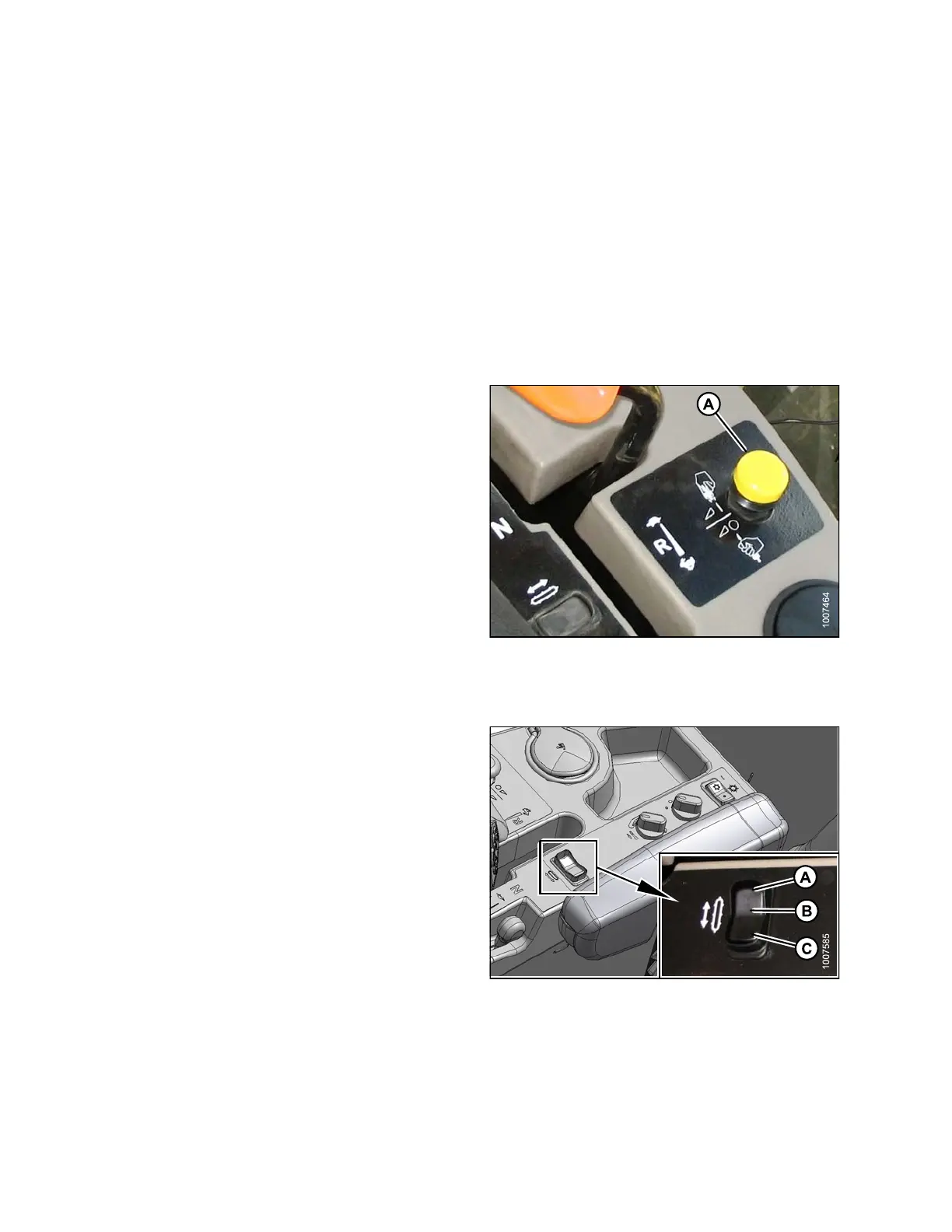

Figure 3.34: Header Drive Switch
3.17.2 Deck Shift Switch–Draper Header Option
The deck shift switch selects the crop delivery options when
the windrower is attached to a draper header equipped with
deck shift. The three crop delivery options include:
• Right side delivery (A)
• Center delivery (B)
• Left sid e delivery (C)
Fig
ure 3.35: Deck Shift Switch
A - Right Side D elivery B - Center Delivery C - Left Side Delivery
169890 56 Revision A
