OPERATION
Detaching an A-Series Header: H ydraulic Center-Link
To detach an A-Series header from a windrower with hydraulic center-link, follow these steps:
WARNING
Stop engine, and remove key before making
adjustments to the machine. A child or even a pet
could engage the drive.
1. Start engine and press HEADER U P button (A)
on ground speed lever (GSL) to raise header to
maximum h eight.
2. If one end of the header does NOT raise fully, rephase
the cylinders as follo ws:
a. Press and hold the HEADER UP (A) switch until
both cylinders stop moving
b. Continue to hold the switch for 3–4 seconds.
Cylinders are phased.
3. Stop engine and remove key.

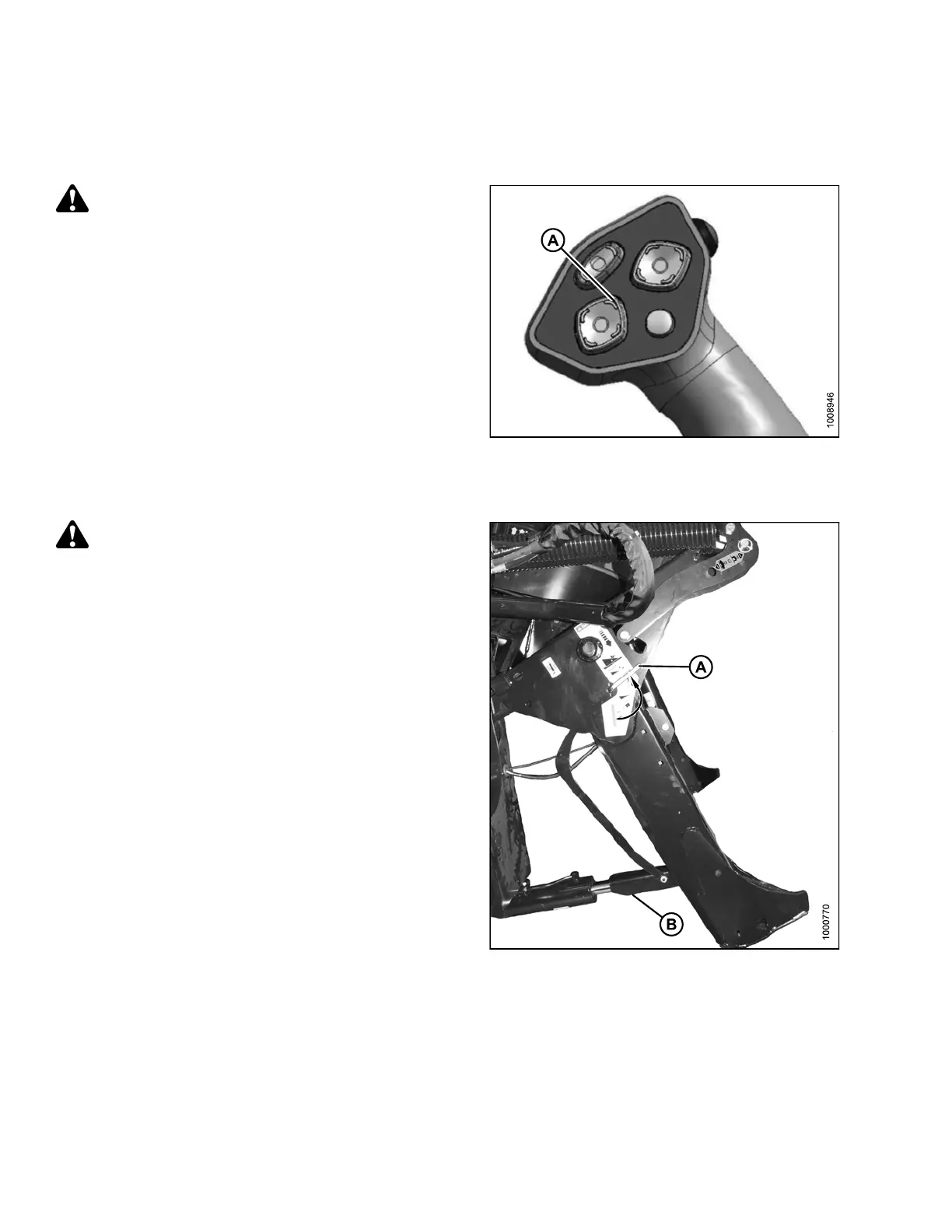

Figure 4.151: GSL
DANGER
To avoid bodily injury from fall of raised header,
always engage safety props when working on or
around raised header, and before going under header
for any reason.
4. Pull lever (A) an d
rotate toward header to lower safety
prop (B ) onto cyli
nder. Repeat for opposite cylinder.
Figure 4.152: Safety Prop
