OPERATOR’S STATION
The beacon lights are functional when the ignition and the
beacon switches are ON.

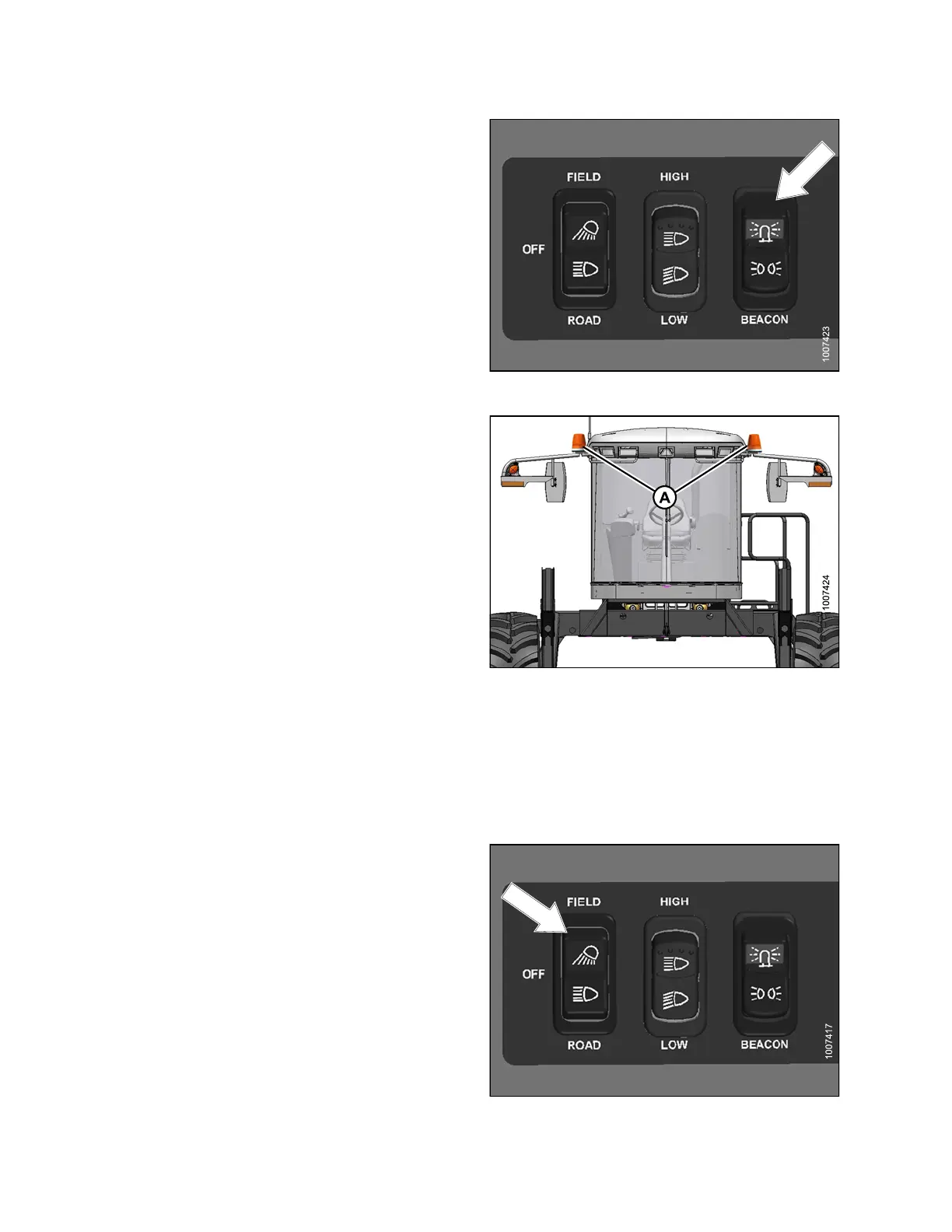

Figure 3.14: Beacon Light Switch
The amber warning beacons (A) MUST be used when
driving on the road where required by law.
Figure 3
.15: Optional Beacon L ights
3.7.4 O
ptional HID Auxiliary Lighting (If installed)
Two optional High Intensity Discharge (HID) lights (MD #B5596) provide additional lighting during field operation.
If installed, they are located on the mirror supports, and are
activated with the light switch in the FIELD position.
Figure 3.16: Field Light Switch
