MacDon M105 - Header Functions

OPERATION
4.2.3 Header Functions

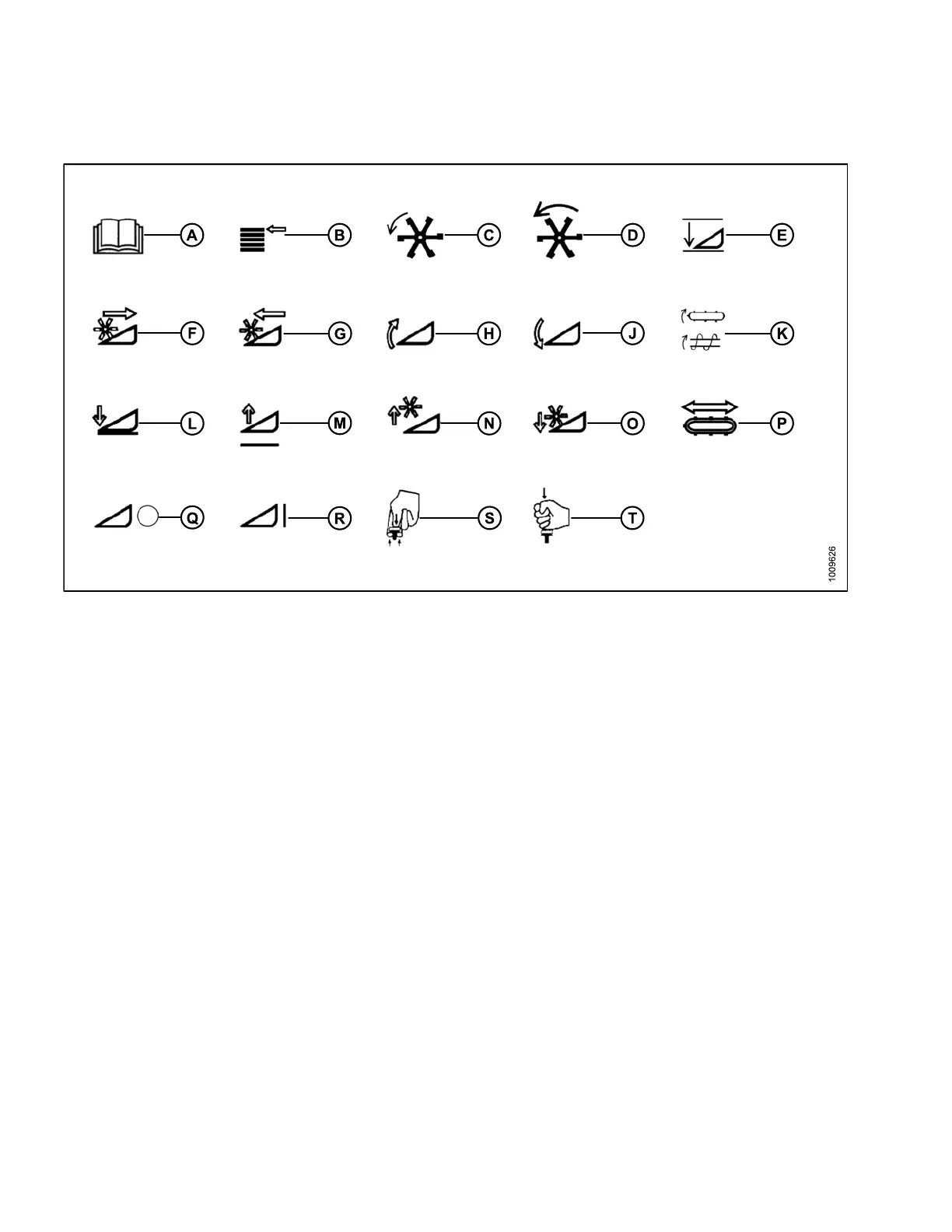

Figure 4
.3: Header Function Symbols
A-Progr
am
B - Display Select C - Header Index
D - Reel S
peed
E-Retur
ntoCut
F - Reel Rearward
G - Reel Forward
H - Header Tilt Up J - Header Tilt Down
K - Conveyor/Aug e r Speed
L - Header Down M - Header Up
N - Reel Up
O - Reel Down P - Deck Shift
Q - Header Disengage
R - Header Engage
S - Pull Up Header Engage
T-Pu
sh Down Header Disengage
169890 84 Revision A
