MAINTENANCE AN D SERVICING

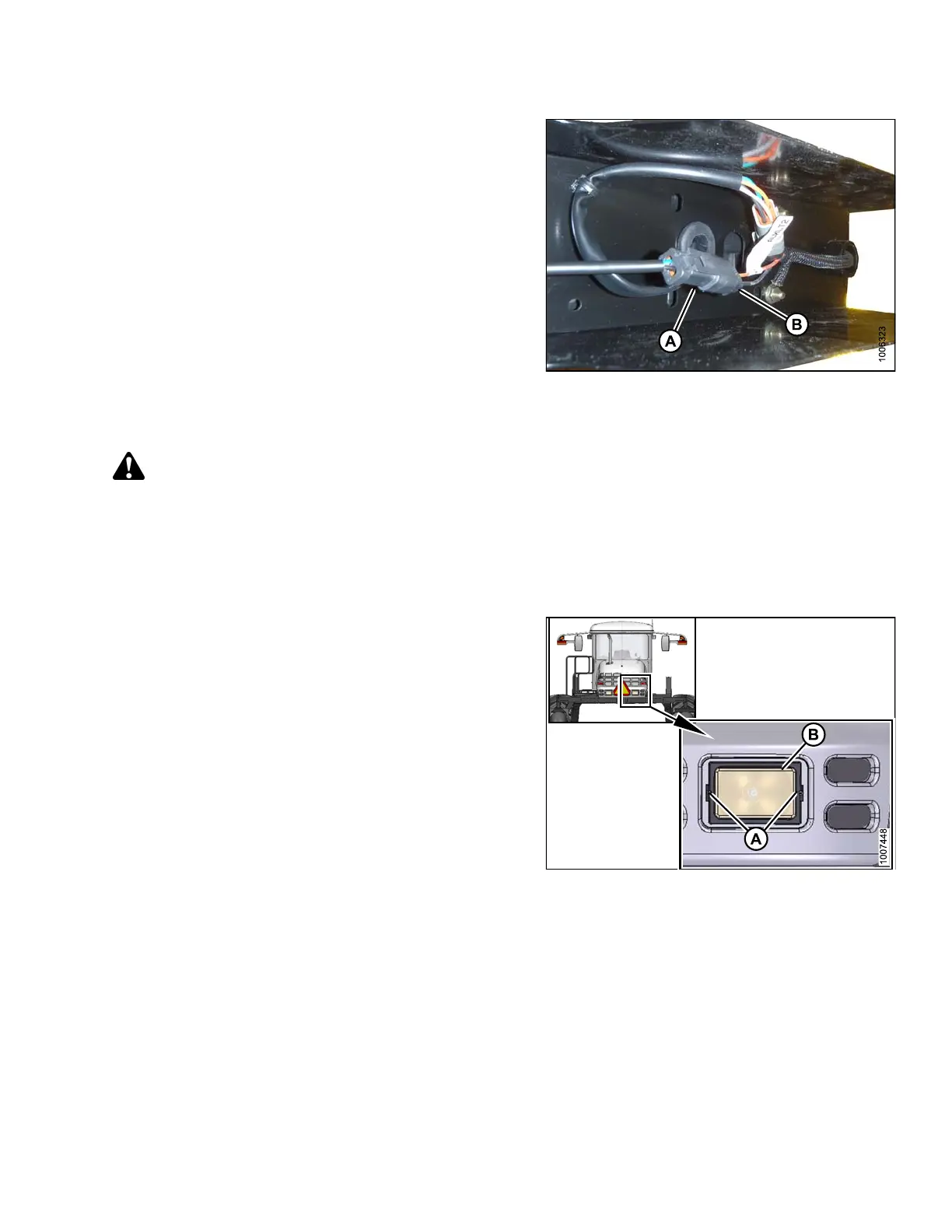

10. Connect lamp plug (A) to main harness connector (B).
Figure 5.149: HID Auxiliary Light Harness
Swath Lights
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
The swath lights are NOT adjustable.
Replace bulbs as follows:
1. Shutdown the engine and remove the key.
2. Remove the two screws (A), and remove
light bezel (B).
3. Remove light from receptacle.
Figure 5.150: Swath Lights
169890 275 Revision A
