MacDon M105 - Lighting; Field Lighting

OPERATOR’S STATION
3.7 Lighting
The field and road light switches are located on a panel in
the cab headliner.

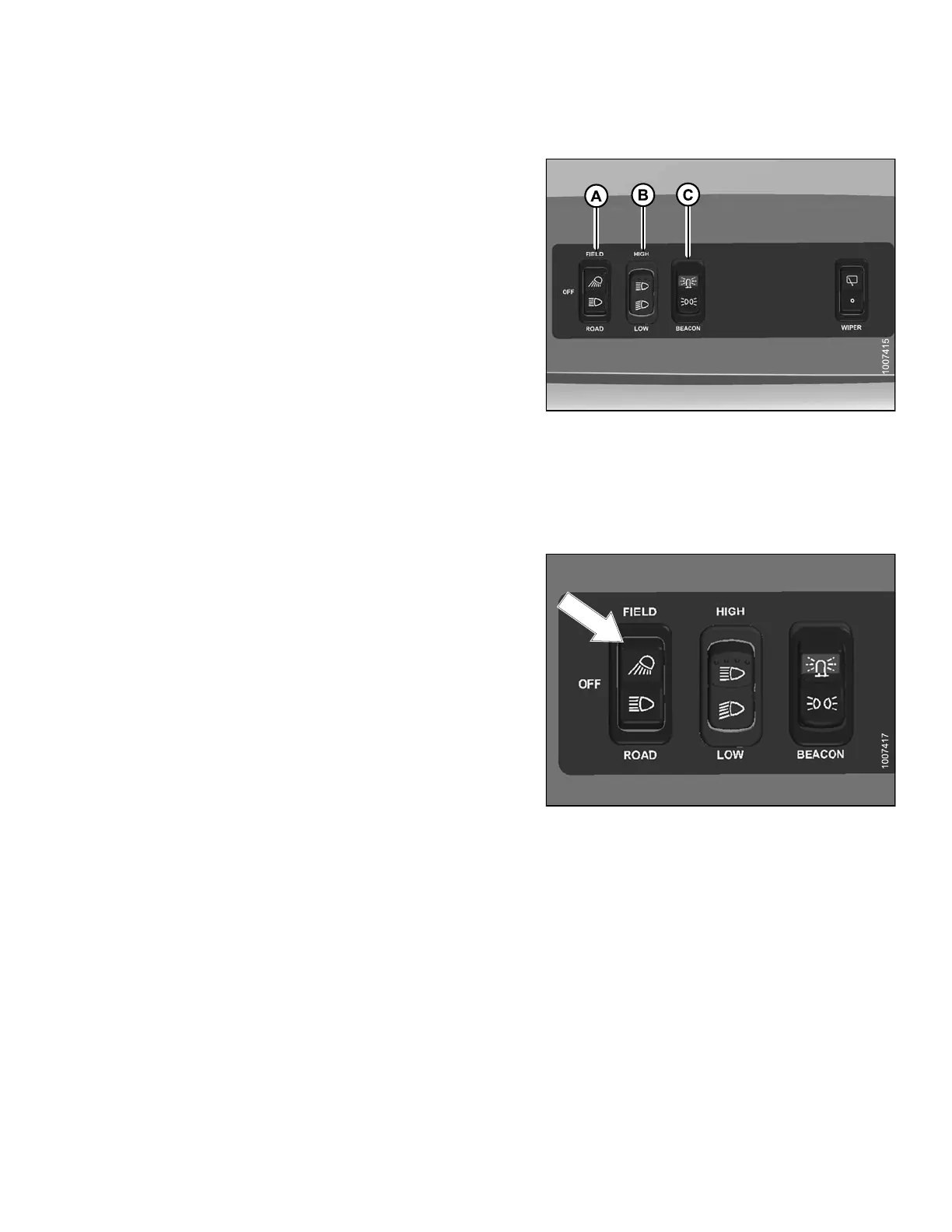

Figure 3.7:
Light Switches
A - Field and Road/Transport Lights (FIELD / OFF / ROAD)
B - Low or High Beams for Road/Transport Lights (LOW / HIGH)
C - Beacons on Cab Roof (If Installed) (OFF / ON)
3.7.1 F ield Lighting
The following lights are ON/functional when the switc h is in
the FIELD position:
• field lights (forward)
• flood lights (rear)
• swath lights (rear) (select HIG H / LOW)
• optional HID auxiliary lighting ( if installed)
Figure 3.8: Field Light Switch
