MAINTENANCE AND SERVICING
7. Match slots on new bulb (B) with lugs (D) in optical unit
and insert bulb into unit.
8. Secure bulb with wire retainer (A).
9. Push wire into connector (C).

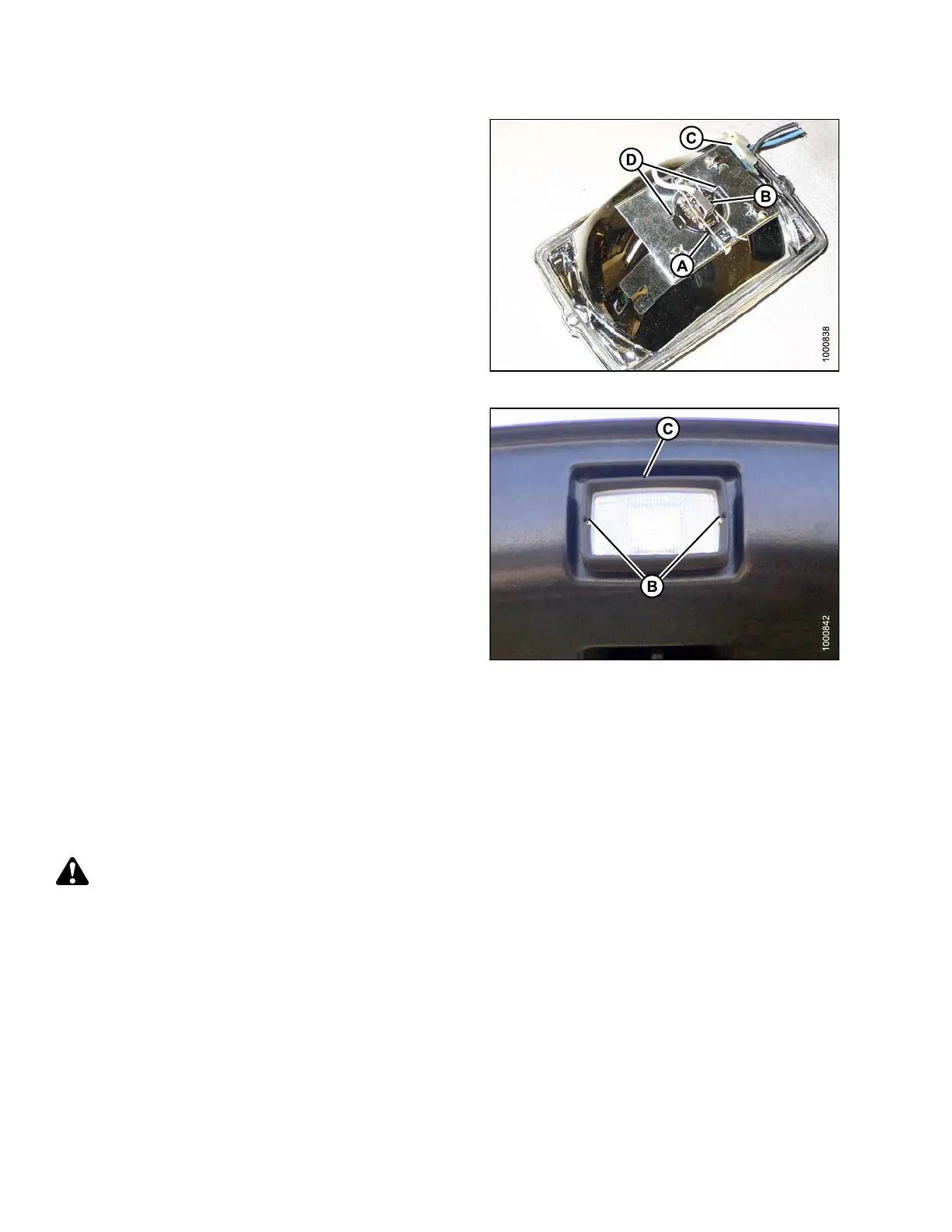

Figure 5.142: Flood Light Assembly
10. Position light into lig ht receptacle, ensuring to p is up
and secure with bezel (C) a nd screws (B).
Figure 5.143: Forward Flood Light
HID Auxiliary Lighting (Optional - MD #B5596)
Two optional High Intensity Discharge (HID) lights provide additional lighting during field operation.
Adjusting HID Auxiliary Lights (if Insta lled)
If ins
talled, HID auxiliary lights are best adjusted with the machine in the field (or equivalent) to suit
Opera
tor preference.
DANGE
R
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
