OPERATION
Converting from Field to Transport Mode
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
DANGER
To avoid bodily i
njury from fall of raised header, always engage safety props when working on or around
raised header,
and before going under header for any reason.
1. Set header on the ground (field position).
2. Disconnect the following hydraulic and electrical
connections:
a. Left Side – Store hydraulic hoses and electrical
cable into the storage position. Refer to header
operator’s manual.
b. Right Side – Release the multi-link and place
into storage on windrower. Refer to header
operator’s manual.
3. Retrieve temporary l
ift pin from storage location on
weight box an d insta
ll into rear hole (A) at the top
of the lift a rms. Th i
s provides additional lift height for
transport wheel dep
loyment.
CAUTION
Check to be sure all bystanders have cleared the area.
4. Raise header to full height and stop engine.
5. Engage safety props on lift cylinders. Refer to 4.4.1
Header Safety Props, page 117.

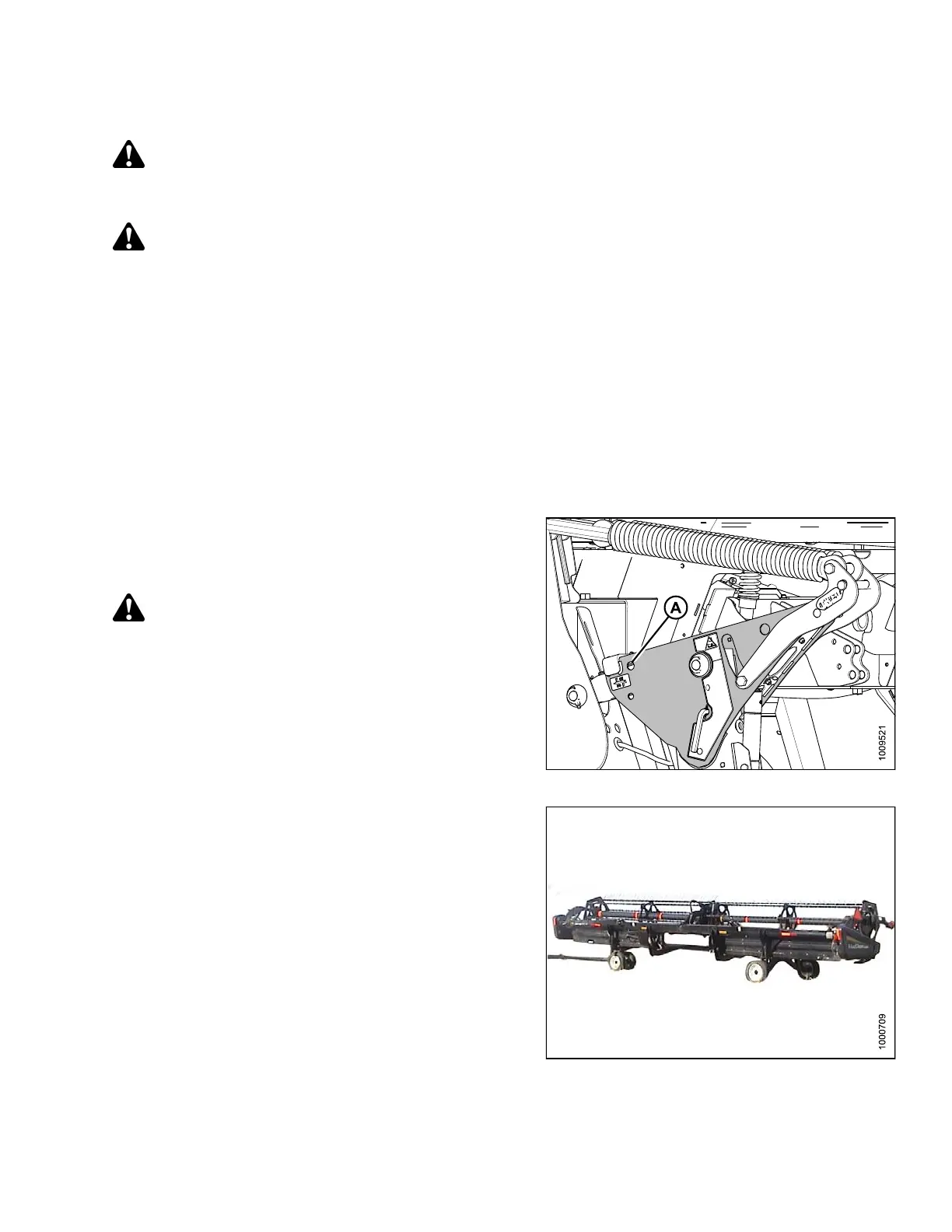

Figure 4.33: Lift Linkage
6. Deploy header sl
ow speed transport system. Refer to
header operator
’s manual.
Figure 4.34: Header in Transport M ode
169890 105 Revision A
