OPERATION
4. To engage the safety props, pull lever (A) and rotate
toward header to lower safety prop (B) onto cylinder.
Repeat for the opposite cylinder.

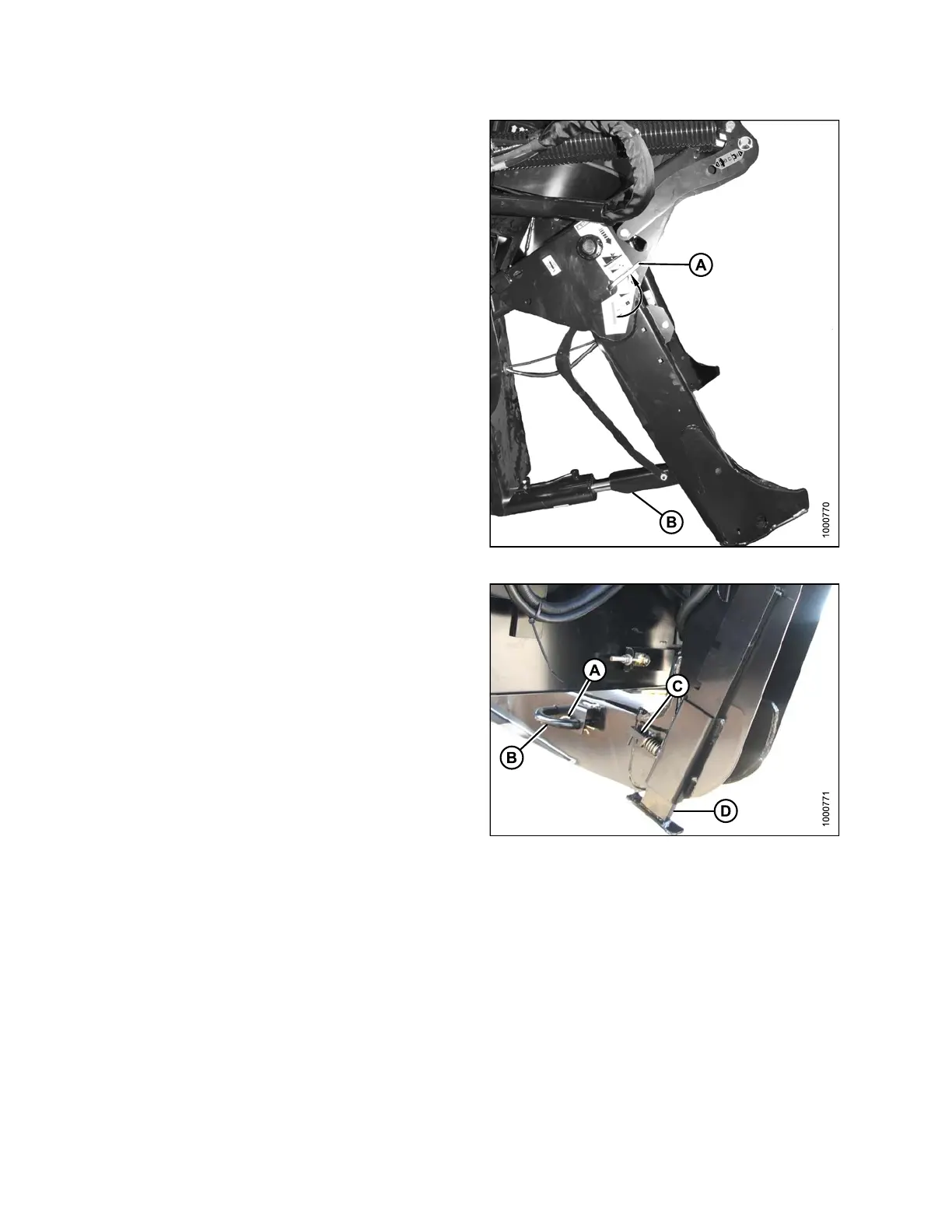

Figure 4.
115: Safety Prop
5. Remove the clevis pin (B) by removin g hairpin (A) f ro m
header leg on both sides.
6. Lower header stand (D) by pulling sprin g loaded
pin (C). Release pin to lock stand.
Figur
e 4.116: Header Stands
169890 146 Revision A
