OPERATION
8. To disengage safety props and for storage, turn
lever (A) away from header to raise safety prop
until lever locks into vertical position. Repeat for
opposite cylinder.

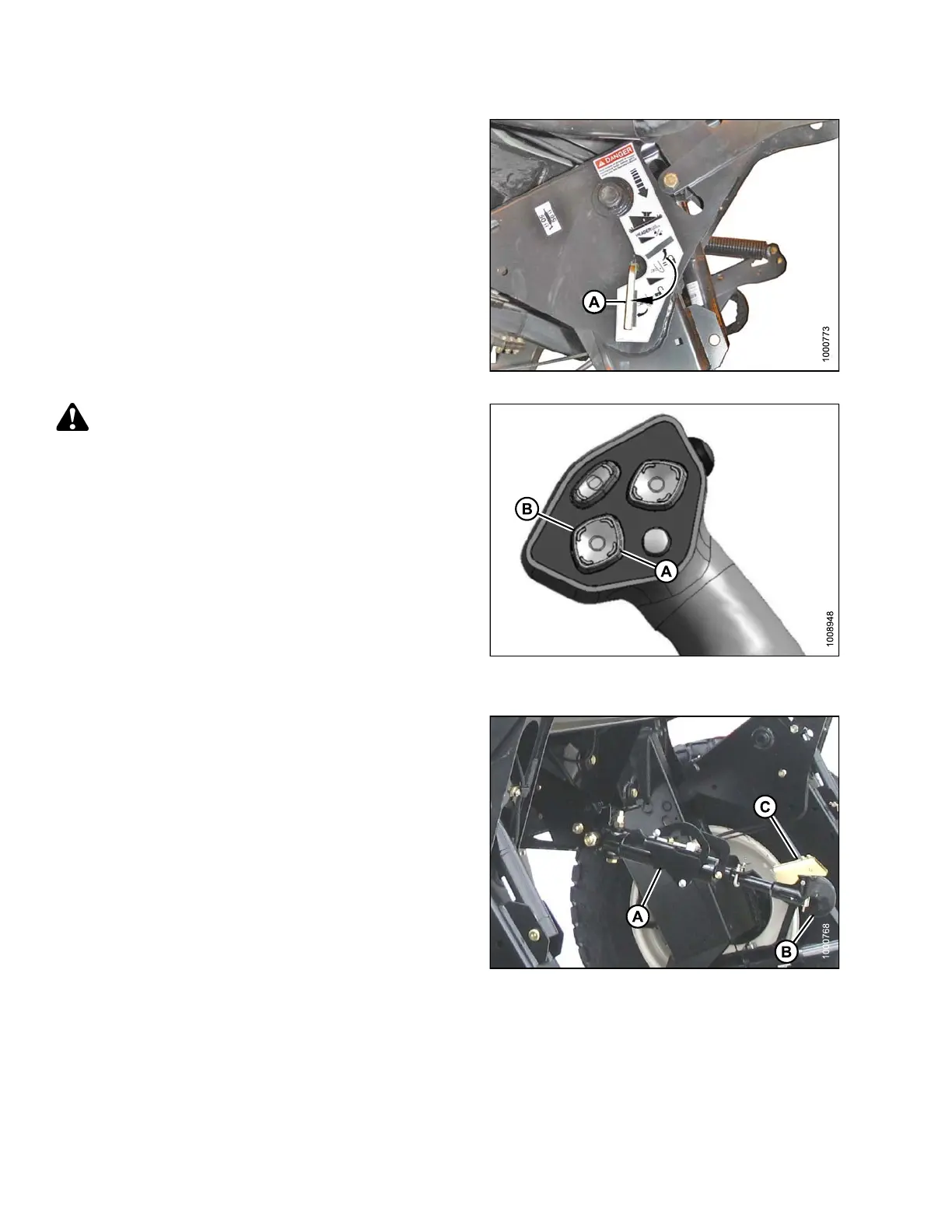

Figure 4.156: Safety Props
CAUTION
Check to be sur e all bystan d ers have cleared t he area.
9. Start engine, choose a level area, and lower header to
the ground.
10. Activate HEADER TILT cylinder switch o n
ground speed lever (GSL) to release load on
center-link cylinder.
Figure 4.157: GSL
A - Head
er Tilt Up
B - Head
er Tilt Down
11. Stop engine, and remove key from ignit ion.
12. Lift hook release (C) and lift hook (B) off header pin.
NOTE:
If optiona l center-link self-alignment kit is installe d , lift
release ( C), and then operate the lin k lift cylinder with
REEL UP switch on GSL to disengage the center-link
from the header.
Figure 4.158: Hydraulic Center-Link
